| Product Name: | XJJC-5 Microcomputer Control Impact Test Machine | Model: | XJJC-5 |
|---|---|---|---|
| Capacity(J): | 0.5, 1, 2, 4, 5 | Impact Velocity Range: | 2.9 M/s |
| Preraised Angle: | 160±1° | Strike Center Distance: | 221mm |
| Measuring Accuracy: | 0.0001J | Clip Spacing: | 40mm, 60mm, 70mm, 62mm, 95mm |
| High Light: | XJJC-5 impact test machine,Microcomputer Control Impact Test Machine,Microcomputer Control impact test equipment |
||

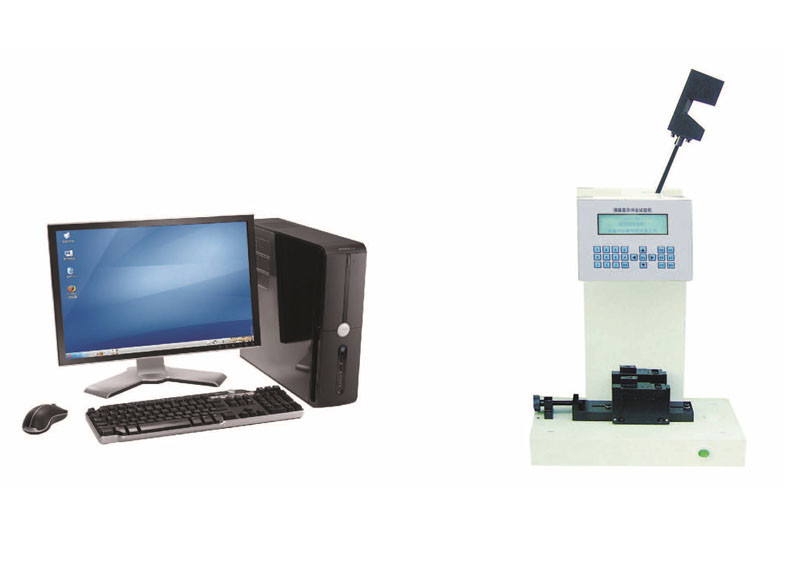

XJJC-5 Microcomputer control impact test machine is computer control, LCD display dual operating system type.The instrument has convenient man-machine dialogue, high accuracy, automatically display the impact energy, automatically calculate the impact strength, and automatically calculate the whole group of sample impact strength average, and can delete data.Electrically release the hammer body.The whole machine has good steel properties and no stress deformation after time treatment.Use to determine the impact toughness of non-metallic materials such as hard plastic, fiber reinforced composites, nylon, FRP, ceramic, cast stone, plastic electrical appliances, and insulating materials.It is a scientific research institution, colleges and universities, and about the quality inspection equipment of factories and mines.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Meet standards:
International standard: ISO179-Determination of impact Strength of Plastic-rigid material;
National standard GB / T1043-Impact Test Method of Hard Plastic.
Technical parameter:
| Impact velocity | 2.9m/s |
| Impact energy | 0.5J,1J, 2J, 4J, 5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 160±1° |
| Strike center distance | 221mm |
| Pendulum moment |
Pd 1=0.5155N.m, Pd 2=1.0311N.m, |
| Clip spacing | 40mm, 60mm, 70mm, 62mm, 95mm |
| Impact blade round Angle | R2mm±0.5mm |
| Measuring Accuracy | 0.0001J |
| Control mode | Computer |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 70KG |
