| Product Name: | A ISO179 Plastic Digital Charpy Pendulum Impact Testing Machine Charpy Impact Tester Supplier | Model: | XJJD-5M |
|---|---|---|---|
| Capacity(J): | 1, 2, 4, 5 | Impact Velocity Range: | 2.9 M/s |
| Energy Unit: | J, Kgmm, Kgcm, Kgm, Lbft, Lbin | Preraised Angle: | 150±1° |
| Strike Center Distance: | 230mm | Measuring Angle Accuracy: | 1’ |
| High Light: | ISO179 Impact Testing Machine,Charpy Tester Impact Testing Machine,Plastic Impact Testing Machine |
||

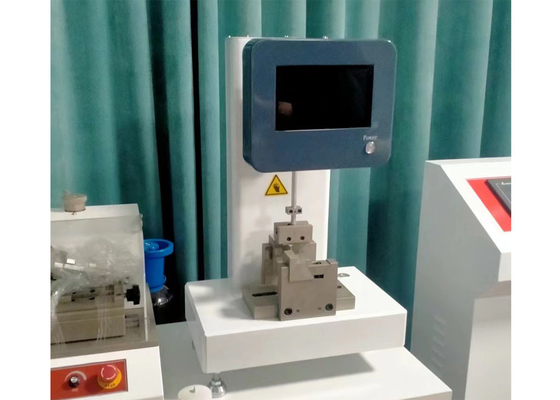

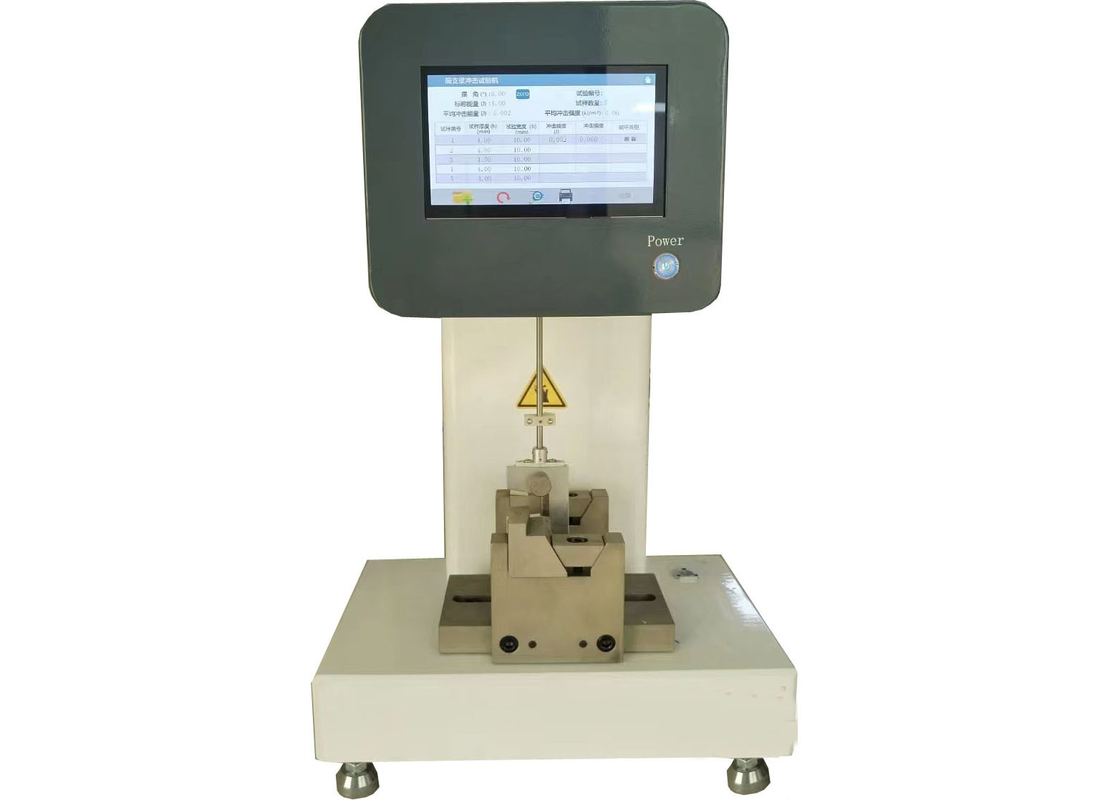

ISO179 Plastic Digital Charpy Pendulum Impact Testing Machine Charpy Impact Tester Supplier is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen. It has the feature of simple structure, easy operation and high test accuracy.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Instrument features:
1.The electronic impact testing machine adopts the circular grating angle measuring technology.
2. It has the characteristics of high precision, good stability and large measuring range.
3. Digital Displaying the value of impact strength, pre-elevation angle, rising angle, and average value.
4. It has the function of automatic correction of energy loss, printing test report, etc.
Meet standards:
ISO179-2000, ASTM D 6110, GB/T1043-2008, JB/T8762-1998, GB/T 18743-2002
Technical parameter:
| Impact velocity | 2.9m/s |
| Impact energy |
2J, 4J, 5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 230mm |
| Pendulum moment |
Pd 1=0.53590 Nm, Pd 2=1.07180 Nm, Pd 4=2.14359 Nm, Pd 5=2.67949 Nm |
| Impact blade round Angle |
R=2.0±0.5mm |
| Measuring Angle Accuracy | 1’ |
| Precision | 0.05% of the indicated value |
| energy unit | J, kgmm, kgcm, kgm, lbft, lbin |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 60KG |
Packing and Shipping:
For the packaging of our Impact Testing Machine, we use high-quality materials to ensure the safety and protection of the product during transportation. The machine is first wrapped in a layer of bubble wrap and then placed in a sturdy cardboard box. The box is then sealed with strong tape to prevent any damage during shipping.
The dimensions and weight of the package will vary depending on the specific model of the Impact Testing Machine. However, we make sure that the package is compact and lightweight to reduce shipping costs.
For international shipping, the machine will be placed in a wooden crate for extra protection. All necessary shipping documents and labels will be included in the package.
We work with reliable and efficient shipping carriers to ensure timely and safe delivery of our Impact Testing Machine. Customers can also choose their preferred shipping method and we will do our best to accommodate their requests.
Upon receiving the package, customers are advised to carefully inspect the product for any damages. In case of any issues, please contact our customer service team immediately for assistance.
A: The brand name of this product is JHH.
A: The model number of this product is XJD.
A: This product is manufactured in Beijing, China.
A: This product is certified with ISO and CE.
A: The minimum order quantity for this product is 1 set.
