| Product Name: | Color Screen Display Charpy Impact Testing Machine For Plastic-Deternimition Of Charpy Impact Strength | Model: | XJJD-5M |
|---|---|---|---|
| Capacity(J): | 0.5, 1, 2, 4, 5 | Impact Velocity Range: | 2.9 M/s |
| Preraised Angle: | 150±1° | Strike Center Distance: | 230mm |
| High Light: | Plastic-Deternimition Charpy Impact Testing Machine,Plastic Charpy Impact Testing Machine,Color Screen Charpy Impact Testing Machine |
||

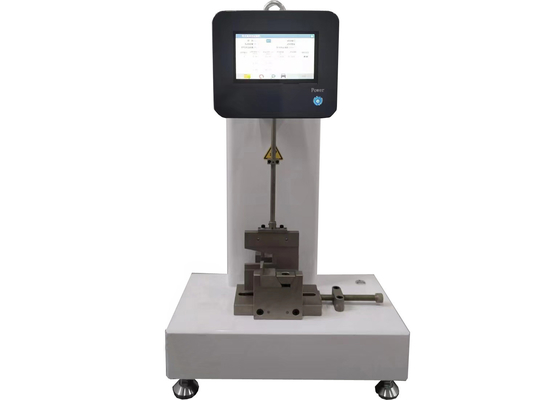

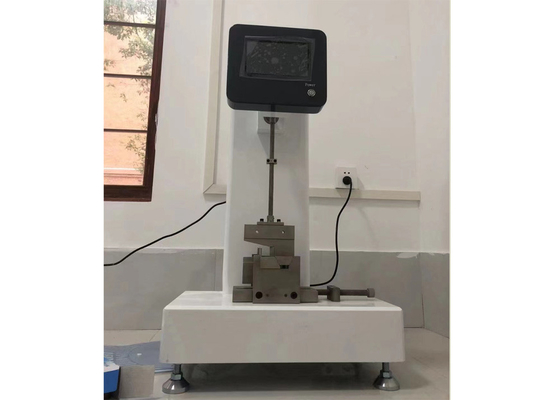

Charpy Impact Testing Machine is mainly used for measuring the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, colleges and universities, quality inspection departments, professional manufacturer laboratories, and other units. The Chinese character LCD screen displays results, can store multiple sets of test results, and has an automatic energy loss correction function. It is a pendulum impact testing machine with a simple structure, convenient operation, and accurate and reliable data.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Instrument features:
1. The electronic impact testing machine adopts circular grating angle measurement technology.
2. It has the characteristics of high accuracy, good stability, and large measurement range.
3. Digitally display the impact strength, pre elevation angle, rise angle, and average value.
4. Equipped with automatic energy loss correction function.
Required standard:
ISO179-2000, ASTM D 6110, GB/T1043-2008, GB/T 18743-2002
Technical parameter:
| Impact velocity | 2.9m/s |
| Impact energy |
0.5J, 1J, 2J, 4J, 5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 230mm |
| Pendulum moment |
Pd0.5=0.26795Nm, Pd1=0.53590Nm, Pd2=1.07180Nm, Pd4=2.14359Nm, Pd5=2.67949Nm |
| Impact blade round Angle |
R=2.0±0.5 mm |
| Accuracy | 0.05% |
| Temperature | -10℃～40 ℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 58KG |
Specimen Type Table for Charpy Impact:
Unit: mm
| Specimen type | Length (L) | Width (Y) | Thickness(X) | Span between supporting points(b) |
| 1 | 80±2 | 10±0.5 | 4±0.2 | 62 |
| 2 | 50±1 | 6±0.5 | 4±0.2 | 40 |
| 3 | 120±2 | 15±0.5 | 10±0.5 | 70 |
Packing and Shipping:
For the packaging of our Impact Testing Machine, we use high-quality materials to ensure the safety and protection of the product during transportation. The machine is first wrapped in a layer of bubble wrap and then placed in a sturdy cardboard box. The box is then sealed with strong tape to prevent any damage during shipping.
The dimensions and weight of the package will vary depending on the specific model of the Impact Testing Machine. However, we make sure that the package is compact and lightweight to reduce shipping costs.
For international shipping, the machine will be placed in a wooden crate for extra protection. All necessary shipping documents and labels will be included in the package.
We work with reliable and efficient shipping carriers to ensure timely and safe delivery of our Impact Testing Machine. Customers can also choose their preferred shipping method and we will do our best to accommodate their requests.
Upon receiving the package, customers are advised to carefully inspect the product for any damages. In case of any issues, please contact our customer service team immediately for assistance.
A: The brand name of this product is JHH.
A: The model number of this product is XJD.
A: This product is manufactured in Beijing, China.
A: This product is certified with ISO and CE.
A: The minimum order quantity for this product is 1 set.
