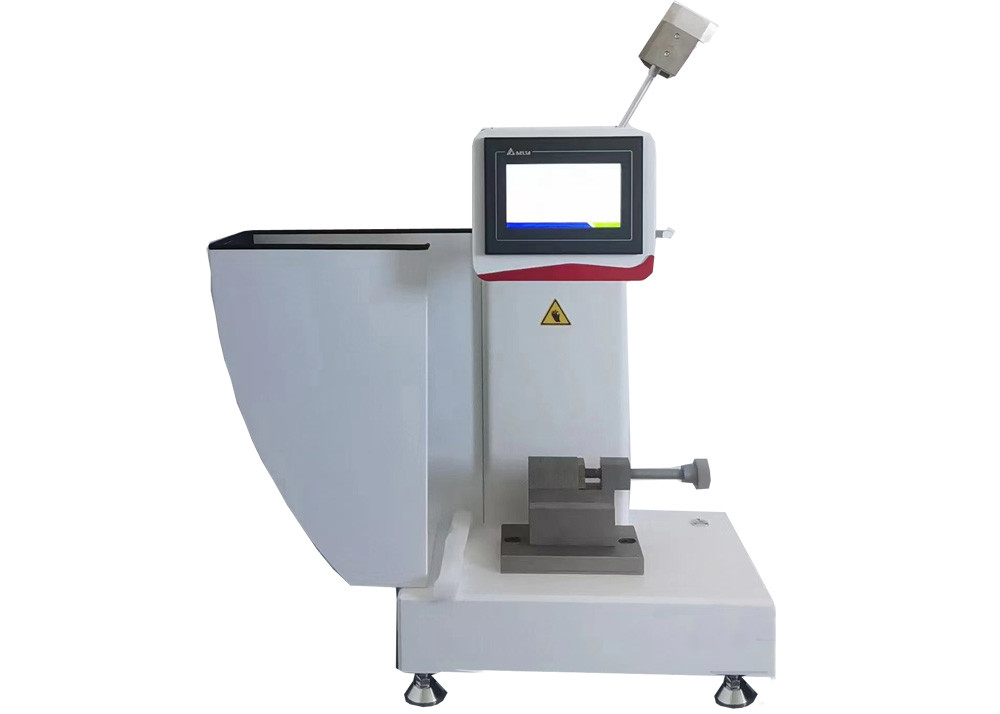

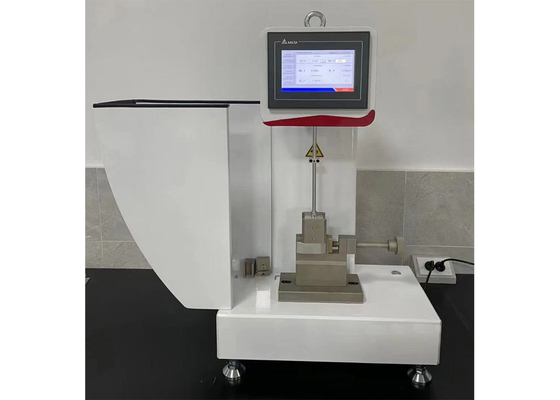

| Product Name: | Cantilever Beam Impact Testing Machine ISO 180 Plastics - Determination Of Izod Impact Strength | Model: | XJUD-5.5M |
|---|---|---|---|
| Capacity(J): | 1, 2.75, 5.5 | Impact Velocity Range: | 3.5 M/s |
| Energy Unit: | J, Kgmm, Kgcm, Kgm, Lbft, Lbin | Preraised Angle: | 150±1° |
| Strike Center Distance: | 335mm | Measuring Angle Accuracy: | 1’ |
| High Light: | Izod Strength Impact Testing Machine,ISO 180 Plastics Impact Testing Machine,Cantilever Beam Impact Testing Machine |
||
Cantilever beam impact testing machine is a device for measuring the impact toughness of non-metallic materials. Cantilever beam impact testing machine is one of the most commonly used impact testing machines in the market.
The equipment is mainly used for the determination of impact toughness of hard plastics, reinforced nylon, fiberglass, ceramics, cast stone, electrical insulation materials and other non-metallic materials, and is an ideal test equipment for the chemical industry, scientific research institutions, universities and other quality inspection departments. Cantilever beam impact testing machine is a device for measuring the impact toughness of non-metallic materials. Cantilever beam impact testing machine is one of the most commonly used impact testing machines in the market.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Instrument characteristics:
1. The instrument adopts high hardness and precision bearings, and adopts a single axis photoelectric sensor to fundamentally eliminate the loss caused by friction, ensuring that the friction energy loss is far less than the standard requirements.
2. Based on the impact situation, intelligently prompt the working status, interact with the experimenter at all times, and ensure the success rate of the test.
Meet standards:
DIN EN ISO180, ASTM D256,NF T51-911, GB / T1843, GB / T2611, etc.
Technical parameter:
| Impact velocity | 3.5m/s |
| Impact energy |
1J, 2.75J, 5.5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 335mm |
| Pendulum moment |
T1=0.535898Nm, T2.75=1.47372Nm, T5.5=2.94744Nm |
| Impact blade to the distance above jaw |
22mm±0.2mm |
| Impact blade round Angle |
R(0.8±0.2)mm |
| Measuring Angle Accuracy | 1’ |
| Precision | 0.05% of the indicated value |
| energy unit | J, kgmm, kgcm, kgm, lbft, lbin |
| Temperature | -10℃～40℃ |
| Power | 220VAC, 50Hz |
| Weight | 70KG |
Packing and Shipping:
For the packaging of our Impact Testing Machine, we use high-quality materials to ensure the safety and protection of the product during transportation. The machine is first wrapped in a layer of bubble wrap and then placed in a sturdy cardboard box. The box is then sealed with strong tape to prevent any damage during shipping.
The dimensions and weight of the package will vary depending on the specific model of the Impact Testing Machine. However, we make sure that the package is compact and lightweight to reduce shipping costs.
For international shipping, the machine will be placed in a wooden crate for extra protection. All necessary shipping documents and labels will be included in the package.
We work with reliable and efficient shipping carriers to ensure timely and safe delivery of our Impact Testing Machine. Customers can also choose their preferred shipping method and we will do our best to accommodate their requests.
Upon receiving the package, customers are advised to carefully inspect the product for any damages. In case of any issues, please contact our customer service team immediately for assistance.
A: The brand name of this product is JHH.
A: The model number of this product is XJD.
A: This product is manufactured in Beijing, China.
A: This product is certified with ISO and CE.
A: The minimum order quantity for this product is 1 set.
