| Product Name: | Charpy Impact Test Machine XJJ-50J Impact Speed Tolerance ≤±0.05% For Accurate Material Testing | Model: | XJJD-50J |
|---|---|---|---|
| Capacity(J): | 7.5, 15, 25, 50 | Impact Velocity Range: | 3.8 M/s |
| Impact Energy: | Max. 50J | Preraised Angle: | 150±1° |
| Strike Center Distance: | 395mm | Measuring Angle Accuracy: | 1’ |
| High Light: | accurate Charpy Impact Test Machine,accurate charpy tester,accurate charpy test machine |
||

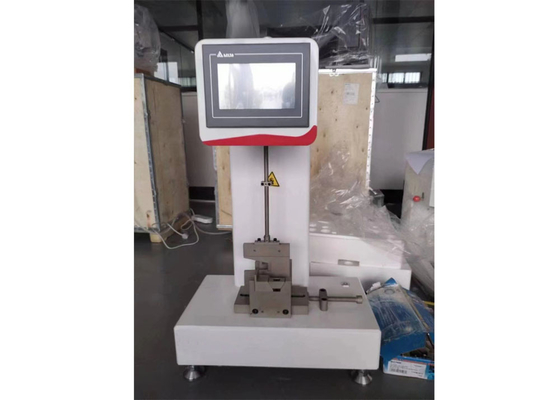

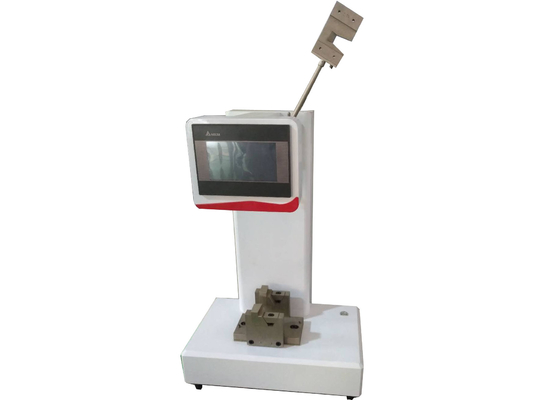

This test machine is mainly used for the determination of impact toughness of hard-plastic materials (including plate, pipe, plastic special profile), reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials and other nonmetallic materials. Widely used in the chemical industry, scientific research units, colleges and universities quality testing and other departments.
This instrument is an impact test machine with simple structure, convenient operation and accurate and reliable data. Please read the instructions in detail before use.
The instrument is equipped with a 7-inch full color touch screen, input the size of the sample, calculate the impact strength and data preservation according to the energy loss value automatically collected. The machine is equipped with a USB output port, which can export the data directly through the U disk, open the data directly on the PC, and edit and print the experiment report.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Instrument characteristics:
The instrument adopts high hardness and high precision bearing, and adopts unaxial photoelectric sensor, fundamentally eliminate the loss caused by friction, to ensure that the friction energy loss is far less than the standard requirements.
According to the impact situation, the intelligent prompt working status, always and the experimenter interaction, to ensure the success rate of the test.
Meet standards:
ISO179,GB/T1043,GB/T2611.
Technical parameter:
| Impact velocity | 3.8m/s |
| Impact energy | 7.5J,15J；25J,50J (7.5 and 15 for one, 25 and 50 for one) |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 395mm |
| Pendulum moment |
T7.5=4.01924Nm, T15=8.03848Nm, T25=13.39746Nm, T50=26.79492Nm |
| Clip spacing | 60mm 70mm 62mm 95mm |
| Impact blade round Angle | R2mm±0.5mm |
| Measuring Angle Accuracy | 1’ |
| Precision | 0.05% of the indicated value |
| energy unit | J,kgmm,kgcm,kgm,lbft,lbin(Can replaceable) |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz (single-phase three wire system ) |
The Impact Testing Machine is used in various applications, such as:
For the packaging of our Impact Testing Machine, we use high-quality materials to ensure the safety and protection of the product during transportation. The machine is first wrapped in a layer of bubble wrap and then placed in a sturdy cardboard box. The box is then sealed with strong tape to prevent any damage during shipping.
The dimensions and weight of the package will vary depending on the specific model of the Impact Testing Machine. However, we make sure that the package is compact and lightweight to reduce shipping costs.
For international shipping, the machine will be placed in a wooden crate for extra protection. All necessary shipping documents and labels will be included in the package.
We work with reliable and efficient shipping carriers to ensure timely and safe delivery of our Impact Testing Machine. Customers can also choose their preferred shipping method and we will do our best to accommodate their requests.
Upon receiving the package, customers are advised to carefully inspect the product for any damages. In case of any issues, please contact our customer service team immediately for assistance.
A: The brand name of this product is JHH.
A: The model number of this product is XJJ.
A: This product is manufactured in Beijing, China.
A: This product is certified with ISO and CE.
A: The minimum order quantity for this product is 1 set.
