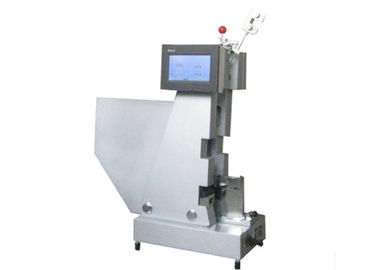

Touch Screen Charpy Impact Test Equipment , 150° Raising Angle Pendulum Impact Tester

Touch Screen Charpy Impact Test Equipment , 150° Raising Angle Pendulum Impact Tester
Touch Screen Charpy Impact Test Equipment , 150° Raising Angle Pendulum Impact Tester Touch Screen Charpy Impact Test Equipment , 150° Raising Angle Pendulum Impact Tester

Large Image :  Touch Screen Charpy Impact Test Equipment , 150° Raising Angle Pendulum Impact Tester

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XJJUC-50J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 4300 USD~4900 USD
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: XJJUC-50J Izod Impact Tester / Charpy Pendulum Impact Testing Machine Clamping Method: Izod & Charpy
Display: Color Touch Screen Impact Energy: 1, 2.75, 5.5J, 11J, 22J(Izod); 1, 2, 4, 5J, 7.5J, 15J, 25J, 50J(Charpy)
Impact Speed: 3.5m/s;2.9m/s; 3.8m/s Usage: Impact Testing Machine
Reading Resolution: 0.001J Raising Angle: 150°
High Light:

charpy impact test machine

,

charpy impact test equipment

XJJUC-50J Izod Impact Tester / Charpy Pendulum Impact Testing Machine





XJJUC-50J Izod Impact Tester / Charpy Pendulum Impact Testing Machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking, and possess intact energy and lose detection and revision function. High precision and stability, large test range. The tester is a kind of whole digital impact testing machine. By changing the weight at the end of pendulum it can get many kind of test energy.

XJJUC-50J Izod Impact Tester / Charpy Pendulum Impact Testing Machine can be used determine the impact ductility of nonmetallic materials, such as Rigid thermoplastic and thermosetting plastic, thermosetting plastic and thermoplastic after fiber-reinforced. It is widely used in the industries of plastic products, plastic manufacture, petro chemical etc, University, scientific research institute and commodity inspection department.



Parameters XJJUC-50J
Impact Method Charpy IZOD
Impact energy 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J 1J, 2.75J, 5.5J, 11J, 22J
Energy Accuracy 0.5 % 0.5 %
Impact speed (m/S) 2.9; 3.8 3.5
Pendulum moment

Pd1=0.53590Nm, Pd2=1.07180Nm, Pd4=2.14359Nm, Pd5=2.67949Nm, Pd7.5 = 4.0192 Nm /Pd15 = 8.0385 Nm

Pd25 = 13.397 Nm/ Pd50 = 26.795 Nm

Pd1=0.53590Nm, Pd2.75=1.47372Nm, Pd5.5 = 2.94744Nm/ Pd11 = .8949Nm

Pd22 = 11.7898Nm

Reading resolution 0.001J 0.001J
Raising angle 150° 150°
Round angle radius R=2mm±0.5mm R=0.8mm±0.2mm
Impact center distance 230mm, 395mm 335mm
Power supply 1 Phase, 220V, 50Hz/60Hz
Dimension & Weight 550mm*350mm*850mm, 160kg
