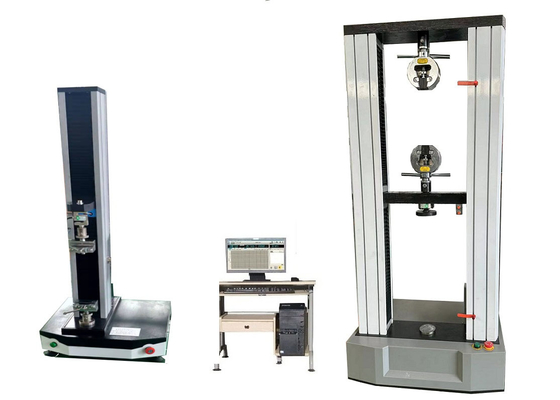

10KN Electric Universal Testing Machine with 0.001mm Crossbeam Displacement Resolution for Materials Testing and Control
Product description:
The Electronic Universal Testing Machine is ideal for use in fields such as materials testing, R&D, quality control, and production. It features a high degree of automation and is user-friendly, making it a popular choice for both small and large-scale operations. This metal and non-metal material testing machine incorporates safety in its design, and the software includes safety functions to avoid accidents.
This testing machine boasts a force measurement range of 0.4%~100%FS, which guarantees accurate measurement of even the smallest forces. Moreover, it is also capable of testing and analyzing the compression, bending, and other mechanical properties of containers including corrugated cardboard boxes, honeycomb panels, flexible packaging bags, plastic barrels (for edible oil, mineral water), paper barrels, paper cans, IBC barrels, and hollow containers.
The key technical indexes:
| Model |
XWW-20KN |
| Type |
Double screw |
| Max. Load |
20KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force |
Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
|
Metal extensometer
|
Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation |
.Measurement range
|
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam |
Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
400mm (or according needing) |
| Total Crossbeam Valid Travel |
800mm |
| Clamps |
Wedge Grip(or according to your needs) |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V;400w |
| Standards |
GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Performance feature:
This testing machine realizes closed-loop control of constant test force, stress rate, constant deformation and strain rate. It is equipped with an intelligent setting system for the control mode during the test process, allowing users to set the test process and control modes for each stage according to their needs. The PC control system can automatically control the test process according to the user's settings. The testing machine displays the test force, displacement, deformation and test curves on the screen, and also has the functions of storing test conditions and results and file processing. All operations such as test process control, changing the speed of the crossbeam movement and parameter input can be completed with a mouse, making it very convenient to use.
Support and Services:
The technical support and services for the Electronic Universal Testing Machine include:
Assistance with installation and setup
Training on machine operation
Technical troubleshooting
Calibration and maintenance services
Repair and replacement of parts
Software updates and upgrades
FAQ:
Q: What is the JINHAIHU XWW- Electronic Universal Testing Machine used for?
A: The JINHAIHU XWW- Electronic Universal Testing Machine serves to test the tensile strength, compression strength, bending strength, shearing strength, tearing strength, and other mechanical properties of various materials.
Q: Does the JINHAIHU XWW- Electronic Universal Testing Machine come with any certifications?
A: Yes, the JINHAIHU XWW- Electronic Universal Testing Machine holds ISO9001 certification, ensuring it meets international quality standards.
Q: Where is the JINHAIHU XWW- Electronic Universal Testing Machine manufactured?
A: The JINHAIHU XWW- Electronic Universal Testing Machine is produced in Beijing, China.
Q: What is the minimum order quantity for the JINHAIHU XWW- Electronic Universal Testing Machine?
A: The minimum order quantity for the JINHAIHU XWW- Electronic Universal Testing Machine is 1 set.
Q: What is the price range for the JINHAIHU XWW- Electronic Universal Testing Machine?
A: The price range for the JINHAIHU XWW- Electronic Universal Testing Machine is USD 5800~7500 per set.
Q: What are the available payment terms for the JINHAIHU XWW- Electronic Universal Testing Machine?
A: The accepted payment terms for the JINHAIHU XWW- Electronic Universal Testing Machine are T/T, L/C, D/A, D/P, Western Union, and MoneyGram.
Q: How many sets of JINHAIHU XWW- Electronic Universal Testing Machine can be supplied per month?
A: We can provide up to 20 sets of JINHAIHU XWW- Electronic Universal Testing Machine per month.
Q: What is the estimated delivery time for the JINHAIHU XWW- Electronic Universal Testing Machine?
A: The estimated delivery time for the JINHAIHU XWW- Electronic Universal Testing Machine is 10~20 working days.
Q: How is the JINHAIHU XWW- Electronic Universal Testing Machine packaged for delivery?
A: The JINHAIHU XWW- Electronic Universal Testing Machine is packed in standard export wooden cases for safe delivery.
