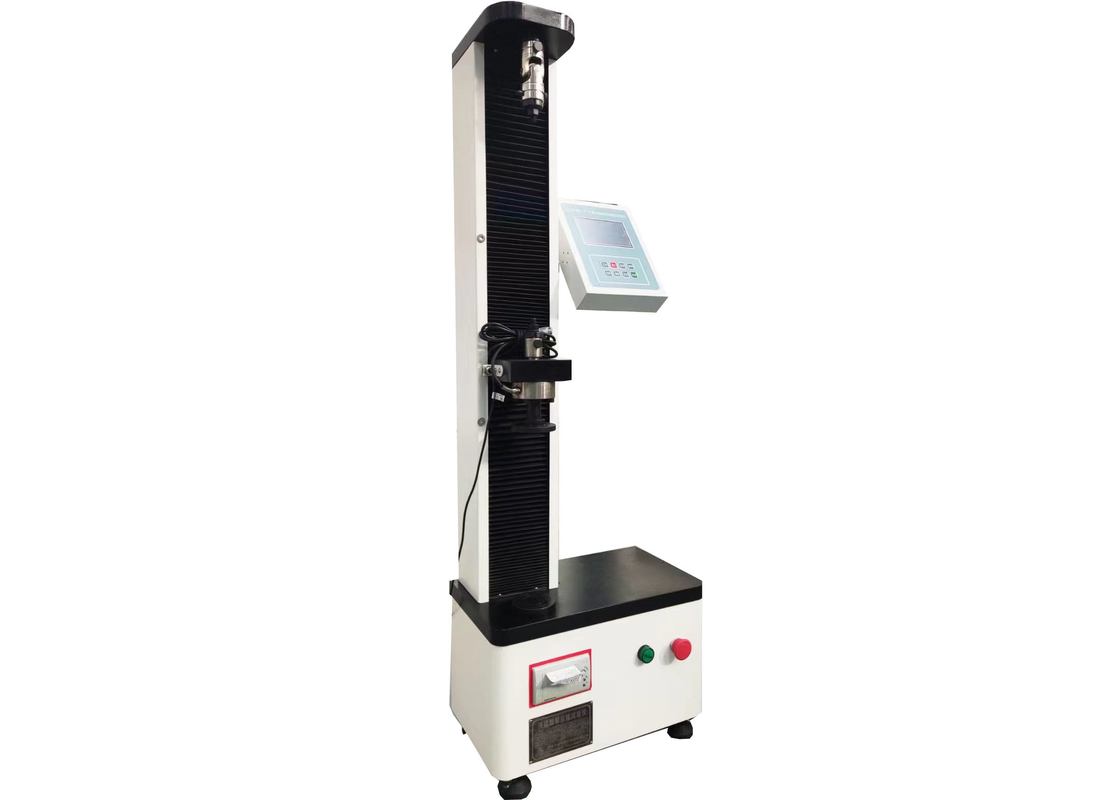

LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film

LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film
LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film

Large Image :  LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film

Product Details:
Place of Origin: CHINA
Brand Name: JHH
Certification: ISO9001
Model Number: XWW-1KN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard wooden box
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Detailed Product Description
Name: LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film Capacity: 1KN
Force-measuring Range: 2%~100%FS Force Unit: Kgf, Gf ,Lbf ,mN, N, KN, Ton
Accuracy: ±0.5% Safety Protection: Overload, Over-travel, Over-voltage, Over-current
Test Speed Range: 0.05-500mm/min
High Light:

LCD Universal Testing Machine

,

pull testing machiine Universal Testing Machine

,

Plastic Film Universal Testing Machine

LCD Universal testing machine pull testing machiine manufacturer for plastic film

Product Description:

Using foreign advanced technology, full digital amplification, collection, closed-loop control, make the display stability, high accuracy, easy to use. Mainly adopts domestic DC servo motor, precision reducer, high precision ball screw, with stable transmission, low noise, high speed accuracy, wide speed range, long service life and other characteristics; LCD real-time display, can display test force, peak, displacement, speed, test state, easy appearance, easy operation, simple operation, It has the functions of limit protection, overload automatic protection, test and break automatic shutdown

Applications:

JINHAIHU XW-LCD display electronic Universal Testing Machine is an automated universal load testing equipment that is designed to conduct a wide range of mechanical tests on various materials. This electro-mechanical universal test instrument is certified by ISO9001 and manufactured in Beijing, China.

The machine is suitable for testing the mechanical properties of plastic film, composite film, flexible packaging material, adhesive tape, rubber, paper and other products. It has a capacity of 1KN and a crossbeam speed range of 0.05~500mm/min, which makes it capable of handling different types of testing scenarios. The displacement resolution of 0.001mm ensures accurate and precise results.

The JINHAIHU XW- Electronic Universal Testing Machine can be used in various applications, such as quality control, research and development, and production testing. It is ideal for testing the tensile, compression, bending, tearing, and peeling strength of materials.

Technical Parameters:

Model XWW-1KN
Type Single screw
Max. Load 1KN
Resolution of Load 1/300000
Accuracy Grade 1 grade
Force      Force-measuring Range 2%~100%FS
Force-measuring Accuracy ≤±0.5%
Range of force control rate 0.05--5%FS/S
Relative error of force control rate Within±1% of set value



Metal extensometer







     Measurement range 0.5-100%FS
Range of deformation rate 0.02~5%FS/S
Error of indication Within±0.5%
Resolution 1/300000
Large deformation

.    Measurement range

5mm-1000mm
Error of indication Within±0.5%
Resolution 0.003mm
Crossbeam      Crossbeam Displacement Resolution 0.003mm
Crossbeam Speed Range 0.05-500mm/min
Total Crossbeam Valid Travel 800mm

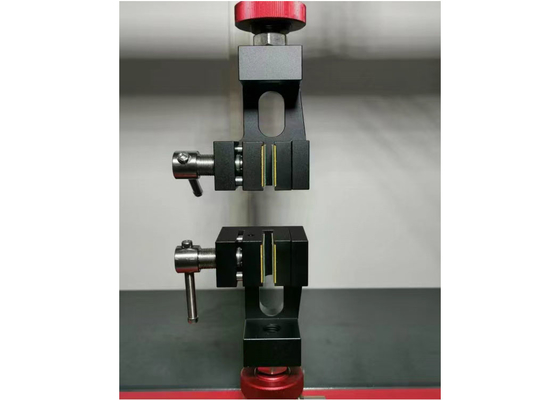

Clamps Wedge Grip(or according to your needs)
PLC System Control force, displacement and deformation
Power Supply AC220V;400w
Standards GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790
Weight 90Kg
Packing size 600mm*600mm*2000mm



Support and Services:

Technical Support and Service for Electronic Universal Testing Machine

We provide professional technical support and service for the Electronic Universal Testing Machine. As the manufacturer of the product, we are committed to ensuring that our customers get the best service for their needs.

Technical Assistance

We are available to answer any technical questions and provide guidance on the use of the product. Our experienced technical team can provide assistance with installation, operation, and troubleshooting.

Repair Services

We offer repair services for the Electronic Universal Testing Machine. Our technicians are available to diagnose and repair any issues that may arise with the product. We can also provide parts and components to replace any defective parts.

Preventative Maintenance

We also offer preventative maintenance services. Our technicians can inspect the product and components to ensure that they are functioning properly and that the product is in good condition. This can help reduce the likelihood of any major issues arising in the future.

Training

We provide training services for the Electronic Universal Testing Machine. Our team of experts can train your staff on the use and maintenance of the product, so they can get the most out of it.

Warranty

We offer a warranty on the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the product free of charge.



Packing and Shipping:

Packaging and Shipping

The Electronic Universal Testing Machine will be packaged with great care and precision using bubble wrap, foam, and other protective packaging materials. It will be securely fastened to a skid before being loaded onto a truck for shipping. The product will be shipped via a reliable, insured freight carrier.



FAQ:

  • Q1: What is an Electronic Universal Testing Machine? A1: An Electronic Universal Testing Machine is a device used to measure the mechanical properties of materials such as tensile strength, compression strength, modulus of elasticity, and elongation.
  • Q2: What materials can be tested with an Electronic Universal Testing Machine? A2: An Electronic Universal Testing Machine can be used to test a variety of materials including metals, plastics, elastomers, and composites.
  • Q3: How accurate are Electronic Universal Testing Machines? A3: Electronic Universal Testing Machines are highly accurate and can measure to within ±0.5% of the actual value.
  • Q4: What types of tests can be performed with an Electronic Universal Testing Machine? A4: An Electronic Universal Testing Machine can be used for a variety of tests including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
  • Q5: What are the benefits of using an Electronic Universal Testing Machine? A5: An Electronic Universal Testing Machine is a cost-effective and accurate way to measure the mechanical properties of materials. It is also easy to use and can provide quick results.LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film 0LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film 1LCD Universal Testing Machine Pull Testing Machiine Manufacturer For Plastic Film 2
