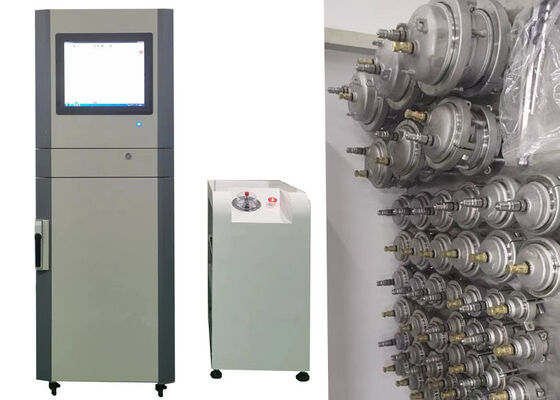

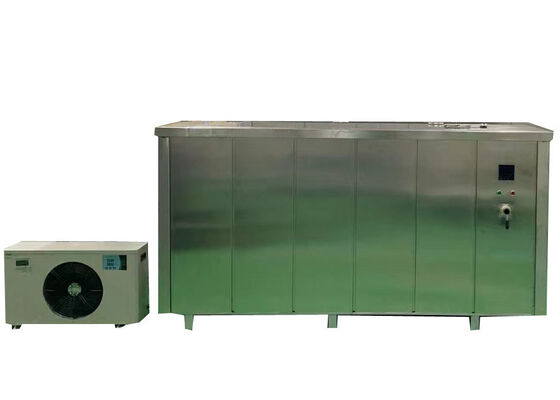

Plastic Pipe Hydrostatic Pressure Testing Machine, Hydrostatic Burst Tester Compliant with ISO & ASTM Standards for Pipeline Safety Assessment

This hydrostatic and burst test apparatus is engineered to assess a wide range of piping products and connectors made from PP, PE, PVC, PPR, PB and PERT under elevated pressure and temperature conditions. Built to withstand rigorous test environments, it is ideally suited for inspecting pipeline components deployed in harsh service scenarios that impose continuous pressure and thermal loads.
The equipment adopts a human-oriented design philosophy to deliver straightforward operation and a low maintenance burden. Its easy-to-navigate control panel streamlines test configuration and running procedures, while integrated safety protections — including automatic pressure cut-off and emergency stop functions — safeguard operators throughout the testing cycle.
Equipped with sophisticated metering modules, the system outputs accurate pressure-time and pressure-temperature curve datasets to support credible performance evaluation. It aligns with international specifications ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599 and ISO 13479, serving as a dependable test solution for regulatory validation and quality control demands.

• Test parameters can be configured via an operation terminal equipped with a touchscreen or a connected PC.
• The unit occupies a footprint under 1 square meter and supports up to 50 independent pressure channels, covering the full water supply pressure range.
• Intelligent identification function recognizes specimen dimensions and material types, then automatically generates optimized pressurization strategies with matched algorithms.
• High-precision pressure regulation with independent input pressure adjustment for every separate module, mitigating solenoid valve abrasion and extending equipment service lifespan.
• All wetted metallic components are constructed from premium stainless steel material.
• Intuitive graphical display interface supports multiple language options to accommodate global customers' diverse operational needs.
• On-the-fly pressure calibration is available as an optional function, allowing the system to keep running uninterrupted throughout calibration procedures.
• Multi-layer safeguard mechanisms are implemented across electrical hardware, mechanical assemblies and control software.
• Stable data transmission is realized through the TCP/IP communication protocol.

We offer comprehensive technical assistance dedicated to our plastic pipe hydrostatic pressure testing instruments. Our seasoned technical specialists are ready to deliver the following services:

• Equipment commissioning and on-site installation
• Fault diagnosis and professional technical consultation
• Routine maintenance and breakdown repair
• Supply of spare components and consumable accessories
• Firmware and control software iteration and upgrade

We focus on consistent premium customer assistance and stand ready to respond to all your technical and commercial inquiries. Feel free to reach out to our team whenever you require further information.
