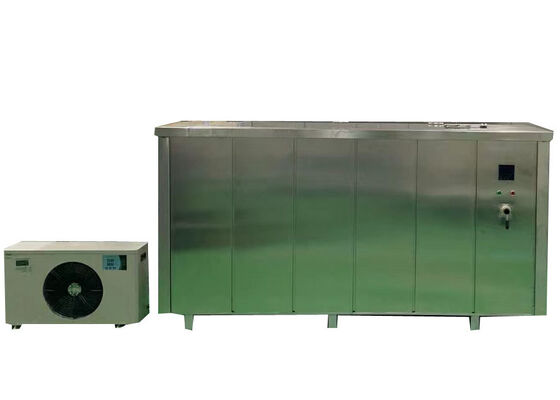

Plastic Pipe Hydrostatic & Burst Tester, Adjustable Pressure Control, for PVC PE PPR PB PERT Pipe, ISO1167 ASTM D1598 ASTM D1599

Large Image : Plastic Pipe Hydrostatic & Burst Tester, Adjustable Pressure Control, for PVC PE PPR PB PERT Pipe, ISO1167 ASTM D1598 ASTM D1599

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic Pipe Hydrostatic & Burst Tester, Adjustable Pressure Control, For PVC PE PPR PB PERT Pipe, ISO1167 ASTM D1598 ASTM D1599	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Plastic pipe hydrostatic tester , Burst tester for PVC PE PPR , Adjustable pressure pipe testing machine

Plastic Pipe Hydrostatic & Burst Tester — Adjustable Pressure Control for PVC, PE, PPR, PB, PERT Pipe

This hydrostatic pressure testing machine adopts an advanced technical architecture to generate pressure–time and pressure–temperature test curves. These capabilities ensure accurate and consistent test results, supplying precise datasets for thorough data interpretation and technical judgement. Designed to satisfy international specifications including ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599 and ISO 13, the equipment delivers stable, high-grade testing performance.

Applications

The Plastic Pipe Hydrostatic & Burst Tester is engineered for evaluating the hydrostatic resistance and bursting strength of plastic and composite piping samples. It is suitable for PVC, PE, PPR, PB, PERT and other similar pipe grades, providing reliable long-term pressure testing for quality control, material research and standards compliance.

Product Configuration

Pressure regulation system (main unit)
Pressurization supply system (pressure source assembly)
Test vessel together with temperature regulating subsystem
End caps: φ8–1800 mm, available upon customized client specifications
Refrigeration unit, provided as an optional item based on customer demands

Compliant Standards

This testing instrument is built to satisfy the criteria laid out in ISO 1167-2006, ASTM D1598-2004, ASTM D1599, ISO 9080, CJ/T 108 and ASTM F1335.

Technical Parameters

Model	XGY-16C
Diameter range	Φ8–1800 mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc. — customizable
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.1–16 MPa
Pressure control accuracy	±1%
Display resolution	0.01 MPa
Working range	5%–100% FS
Indication error	±1%
Timer range	0–10000 h
Timer accuracy	±0.1%
Timer resolution	1 s
Power	380 V 50 Hz three-phase four-wire 1.5 kW
End cap models	From Φ8 to 1800 mm
Water tank size	According to the pipe size
Temperature range	15–95 ℃
Dimensions (three stations)	715 × 625 × 1700 (mm) or others

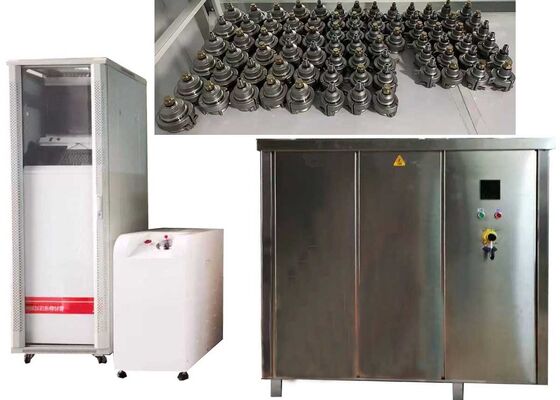

Product Gallery

Support and Services

We deliver dedicated technical assistance for hydrostatic pressure testing machines. Our seasoned technical team is capable of offering the following services:

Equipment commissioning and installation
Fault diagnosis and professional technical consultation
Repair and routine maintenance work
Supply of spare components and consumable items
Software revision and functional upgrading

We strive to maintain superior customer service and stand ready to resolve all your concerns. Feel free to reach out to our team whenever you have questions.

Frequently Asked Questions

Q1: What brand is this plastic pipe hydrostatic pressure testing machine?

A1: This hydrostatic pressure tester carries the JHH brand and is fabricated in Beijing, China.

Q2: What testing function does this plastic pipe hydrostatic pressure testing machine fulfill?

A2: This test apparatus evaluates the hydrostatic resistance and bursting strength of plastic piping samples.

Q3: What kinds of specimens and piping materials are compatible with this hydrostatic pressure testing machine?

A3: It supports testing on plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar pipe grades.

Q4: How high is the pressure measurement precision of this hydrostatic pressure testing machine?

A4: Its pressure measurement error falls within 0.1% of full scale.

Q5: What is the upper pressure limit achievable on this hydrostatic pressure testing machine?

A5: The equipment supports test pressure up to 10 MPa, equivalent to 100 bar (1450 psi).
