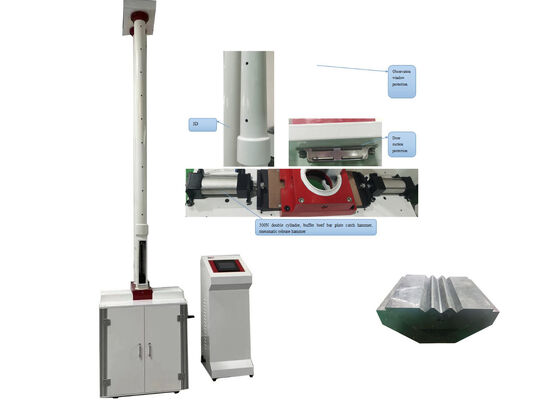

Drop Hammer Test Equipment, Impact Tester for Evaluating Impact Toughness & Fracture Properties of Engineering Materials

Large Image : Drop Hammer Test Equipment, Impact Tester for Evaluating Impact Toughness & Fracture Properties of Engineering Materials

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment, Impact Tester For Evaluating Impact Toughness & Fracture Properties Of Engineering Materials	Test Range:	0-300J
Sample Diameter Range:	Φ10-450mm	Display:	LCD
Max. Height:	2000mm	Min. Height:	30mm
Control Mode:	Automatic	Power Supply:	AC220V-230V/50Hz
Highlight:	Drop Hammer Test Equipment , Impact Tester for Engineering Materials , Impact Toughness & Fracture Tester

Product Overview: Drop Hammer Test Equipment

The Drop Hammer Test Equipment is a precision impact testing system engineered to evaluate the impact toughness and fracture properties of engineering materials. Based on the round-robin method for determining the external impact resistance of thermoplastics pipes, it delivers reliable, repeatable data for material performance evaluation and product quality validation across industrial sectors.

The tester is purpose-built for assessing the external impact strength of thermoplastic pipes, plastic sheets, and non-metallic specimens, making it a core apparatus for product qualification inspection, quality management, and reliability validation.

Compatible Pipe and Material Types

The instrument supports an extensive portfolio of plastic pipe products, including but not limited to:

PVC-U water supply pipes
Low-pressure water delivery pipes
Core-layer foamed pipes
Double-wall corrugated pipes
Carat pipes
Steel strip reinforced pipes
PE water supply pipes
MPP power protection pipes
Hollow wall winding pipes
CPVC power pipes
Rigid plastic sheets and other non-metallic specimens

Instrument Features and Design Advantages

1. Three-Tier Safety Protection Architecture

A multi-stage interlock protection framework safeguards the operator throughout testing:

Tier 1: Interlock protection for the sample access door
Tier 2: Interlock protection for the viewing window
Tier 3: Upper and lower limit position protection

2. High-Speed Lifting Capability

Driven by a high-torque stepper motor, the unit achieves a lifting velocity of up to 250 mm/sec, raising the hammer from the starting point to the 2-meter height within 8 seconds. This significantly shortens test duration and boosts operational efficiency for high-volume sample testing.

3. Intelligent Hovering Capability

A multi-segment speed regulation algorithm enables smooth deceleration and pinpoint hammer positioning without offset. The control logic eliminates inertial displacement, maintaining uniform test conditions and securing excellent repeatability of measured data.

4. 3D-Optimized Drop Hammer Guide Tube

The guide tube is refined through 3D modeling and fitted with vent holes to reduce air resistance during the hammer fall, stabilizing impact force transmission. Hoop reinforcing structures prevent deformation and structural damage, strengthening long-term dependability under rigorous test conditions.

5. Pneumatic Hammer Hoisting and Triggering Assembly

Unlike conventional electromagnetic hammer structures, this tester uses a high-output pneumatic setup for enhanced performance:

300N long-stroke double air cylinder for steady, powerful actuation
Rubber tendon plate hammer face for stable impact without damaging specimens
Pneumatic lifting and release design resolves typical electromagnetic drawbacks such as cable bending, wire fracture, and electric leakage
Built-in pneumatic auto-locking system for higher safety and operational stability

6. Integrated Modular Construction Design

Mechanical section: Standardized aluminum alloy profiles support standardized fabrication and modular installation, delivering lightweight yet high mechanical strength.

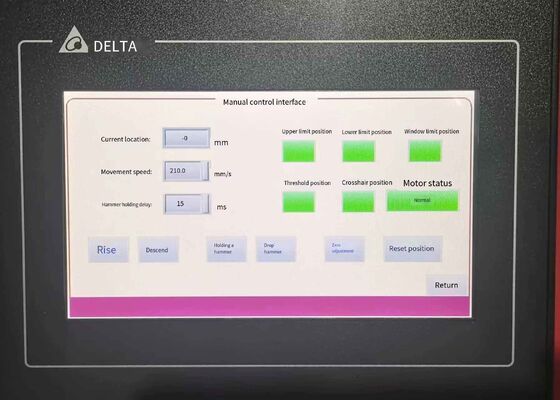

Electrical control system: A 7-inch touch screen paired with a Delta PLC provides intuitive operation, stable running performance, and simplified maintenance.

Technical Parameters

Model	XJL-300D
Ambient temperature	10℃–35℃
Drop hammer quality	0.5 kg–5 kg, 0.125 kg per increment
Hammer diameter	D25 mm, D50 mm, D90 mm
Height of the fall	30 mm–2000 mm, error ≤ ±2 mm
Diameter of the sample	Φ10 mm–Φ450 mm
Deviation of impact center from fixture center	≤ 2 mm
V-type supporting	120°
Power source	220–230 VAC
Outline dimension	720 mm × 690 mm × 3650 mm
Net weight	300 kg

Main Functions and Applications

The Drop Hammer Impact Tester is a reputable precision apparatus purpose-built to quantify the external impact strength of plastic pipes, plastic sheets, and non-metallic materials. It serves as an essential testing device for material property evaluation and product conformity verification within the plastic, construction, and manufacturing sectors.

With a maximum test energy of 300 J and measuring precision of ±0.5%, the equipment satisfies the impact test demands of most industrial pipes and rigid plastic products while meeting the specifications of international test standards.

Frequently Asked Questions

Q1: What is the Drop Hammer Test Equipment?

Manufactured by JHH at its facility in Beijing, China, the Drop Hammer Test Equipment is a precision impact test apparatus custom-designed to assess the impact resistance of materials and finished goods — a vital performance index for structural integrity evaluation.

Q2: What is the core purpose of the Drop Hammer Test Equipment?

Its primary objective is to precisely determine the impact resistance of test samples, delivering key measured data to facilitate product qualification inspection, quality management, and reliability validation in manufacturing and industrial scenarios.

Q3: Which products and materials are compatible with the Drop Hammer Test Equipment?

The equipment is suitable for testing multiple pipe types — including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transfer pipes, core-layer foam pipes, double-wall corrugated pipes, and PE water supply pipes — and also supports the testing of rigid plastic sheets.

Q4: What is the measurement accuracy of the Drop Hammer Test Equipment?

The equipment offers high measuring precision of ±0.5%, delivering dependable and reproducible test outcomes that satisfy the specifications of international test standards.

Q5: What is the maximum testing energy of the Drop Hammer Test Equipment?

The maximum test energy reaches 300 J, satisfying the impact test demands for most industrial pipes and rigid plastic products.
