CHW-63M Plastic Pipeline System Cold and Hot Water Circulation Testing Machine

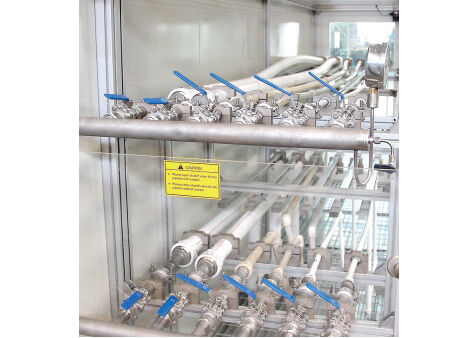

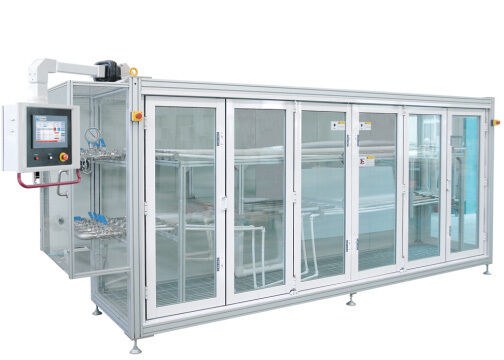

Large Image : CHW-63M Plastic Pipeline System Cold and Hot Water Circulation Testing Machine

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	CHW-63M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	CHW-63M Plastic Pipeline System Cold And Hot Water Circulation Testing Machine	Velocity Of Flow:	>0.9m/s
Control Method:	Plc Control	Display Mode:	Touch Screen Display
Number Of Cycles:	Any Number Of Times From 0 To 100,000	Temperature Control Range:	20°c To Room Temperature (room Temperature> 20°c)
Temperature Control Accuracy:	Set Value ±0.5°c	Temperature Homogeneity:	±0.5℃
Highlight:	Plastic pipeline testing machine , Cold water circulation testing equipment , Hot water pipeline system tester

CHW-63M Plastic Pipeline System Cold and Hot Water Circulation Testing Machine

The CHW series hot and cold water circulation testing machine is designed for evaluating pipeline systems composed of various plastic pipes and fittings assembled according to standard specifications. This equipment subjects piping systems to specified internal pressure while cycling between cold and hot temperature conditions over predetermined durations, then examines for leakage or rupture defects.

Testing Methodology

This long-term stability test requires 5,000 cycles of hot and cold water per set of plastic pipeline system specimens. Each cycle lasts 30 minutes (15 minutes cold water followed by 15 minutes hot water). The machine ensures reliable long-term operation and stable performance, having been custom manufactured for European technical standards and proven through years of use across Europe.

System Components

The instrument consists of several major components: cold water exchange execution module, hot water exchange execution module, sample chamber, and industrial chiller. It features modular architecture, advanced technology, stable performance, reliable quality, and user-friendly operation.

Key Features

Open Structure: High-temperature, high-pressure water exists only within the sample and connected pipelines; atmospheric-pressure container design ensures long-term reliable operation (patented technology)
Full Closed-Loop Control: Imported digital control system provides closed-loop regulation of internal pressure, maintaining constant pressure throughout system operation without water hammer
Smart Switching: Automatic adjustment based on inlet/outlet water temperatures, tank liquid levels, and switching duration; temperature fluctuations between tanks remain below 3°C with low energy consumption
Low-Noise Operation: Proprietary water flow controller significantly reduces noise from high-speed water flow erosion
Efficient Refrigeration: Imported industrial chillers with water-to-water cooling enhance efficiency and extend service life

Compliance Standards

Standard Number	Standard Name
ISO 10508	Thermoplastic pipes and fittings for hot and cold water systems
ISO 19893	Plastics piping systems - Test method for mounted assemblies resistance to temperature cycling
GB/T 19993-2005	Test Method for Thermal Cycling of Hot-Melt Plastic Water Supply and Drainage Pipe Systems
GB/T 18997.1-2003	Aluminum-Plastic Composite Pressure Pipe - Overlap Welded Aluminum Tube
GB/T 18997.2-2003	Aluminum-Plastic Composite Pressure Pipe - Joint-Welded Aluminum-Plastic Pipe
GB/T 18742.2-2002	Polypropylene Pipeline Systems for Hot and Cold Water - Pipe Materials
GB/T 18742.3-2002	Hot and Cold Water Polypropylene Pipeline Systems - Fittings
GB/T 18992.2-2003	Cross-linked Polyethylene (PE-X) Pipe Materials for Hot and Cold Water Systems
GB/T 18993.2-2003	Chlorinated Polyvinyl Chloride (PVC-C) Pipeline Systems - Pipe Materials
GB/T 18993.3-2003	Chlorinated Polyvinyl Chloride (PVC-C) Pipeline Systems - Fittings
GB/T 18991-2003	Thermoplastic Plastic Pipes and Fittings for Hot and Cold Water Systems

Technical Specifications

Parameter	Specification
Pressure Control Range	0.40 MPa ~ 1.20 MPa
Pressure Control Accuracy	Set value ±0.02 MPa (including cold-to-hot switching)
Test Stations	1-6
Maximum Total Cross-sectional Area	6200 mm² (2 × φ63); customizable
Circulation Time (Hot/Cold Water)	600s to 1800s (adjustable)
Hot/Cold Water Switching Time	≤60s
Cycle Count	0 to 100,000 cycles
Maximum Straight Pipe Length	3700mm
Display Mode	Touch screen
Control Method	PLC control
Flow Velocity	>0.9m/s
Water Quality	Pure water, deionized water, or softened water
Automatic Water Supply Pressure	>0.05 MPa
Temperature Display Accuracy	±0.2℃
Sample Inlet/Outlet Temperature Difference	<2℃
Cold Water Tank Temperature Range	20℃ to room temperature
Cold Water Tank Control Accuracy	Set value ±0.5℃
Hot Water Tank Temperature Range	Room temperature to 95℃
Hot Water Tank Control Accuracy	Set value ±0.5℃
Power Supply	380V AC, 50Hz, 25kW
Outline Dimensions	5200 × 3200 × 2100 mm
Installation Dimensions	6000 × 4000 × 3000 mm
Total Weight	3210 kg
