Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface

Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface
Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface
video play

Large Image :  Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001 , CE
Model Number: DSC-ZS5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden box
Delivery Time: 10~15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Differential Scanning Calorimetry Machine Providing Detailed Temperature And Gas Flow Settings With Touch Screen Interface Temperature Resolution: 0.01 ℃
Heating Rate: 0.1～40℃/min Cooling Rate: 0.1～20℃/min
DSC Range: 0 ~ + 500 Mw DSC Resolution: 0.01 MW
DSC Sensitivity: 0.01 MW Temperature Control Mode: Heating, Cooling, Constant Temperature
Highlight:

Differential Scanning Calorimetry Machine with touch screen

,

DSC machine with temperature control

,

Calorimetry analyzer with gas flow settings

Differential Scanning Calorimetry Machine

Advanced DSC analyzer with touch-screen interface, specifically designed for determining oxidation induction time (OIT) of polymeric materials. Features one-touch operation and fully automated software-controlled testing procedures.

Standards Compliance

This instrument complies with the following national and international standards:

  • GB/T 19466.2-2009 / ISO 11357-2:1999
  • GB/T 19466.3-2009 / ISO 11357-3:1999
  • GB/T 19466.6-2009 / ISO 11357-6:1999
Key Features
  • Industrial-grade widescreen touch interface with comprehensive real-time data display
  • USB communication interface with high universality and stable data transmission
  • Compact furnace chamber structure with adjustable heating and cooling rates
  • Optimized mechanical fixation installation eliminating interference
  • Electric heating with compressor-driven circulating cooling water system
  • Dual temperature probes for high repeatability in temperature measurement
  • Automatic two-channel gas switching with fast response
  • Standard reference samples for convenient calibration
  • Software compatible with all screen resolutions and Windows operating systems
  • Customizable device operation modes for automated measurement sequences
  • Fully enclosed support structure reducing contamination and maintenance
Technical Parameters
Temperature range 0℃~500℃
Temperature resolution 0.01℃
Heating rate 0.1～40℃/min
Cooling rate 0.1～20℃/min
Calorimetric resolution 100%
Constant temperature 5℃~500℃
Temperature control mode Heating, cooling, constant temperature
DSC range 0～±500mW
DSC resolution 0.01mW
Working power AC 220V 50Hz 300W or other
Atmosphere control gas Two-channel automatic control (nitrogen and oxygen)
Gas flow 0-200mL/min
Gas flow accuracy 0.2mL/min
Crucible Aluminium crucible Φ6.6*3mm
Display mode 7-inch touch screen
Standard Configuration
DSC machine 1 set
Aluminium crucibles 300 pieces
Power cords and USB cable Each one
CD (software and operations video) One
Oxygen airway and nitrogen airway Each 5m
Standard samples (indium, tin, zinc) Each one
External circulation thermostat sink One

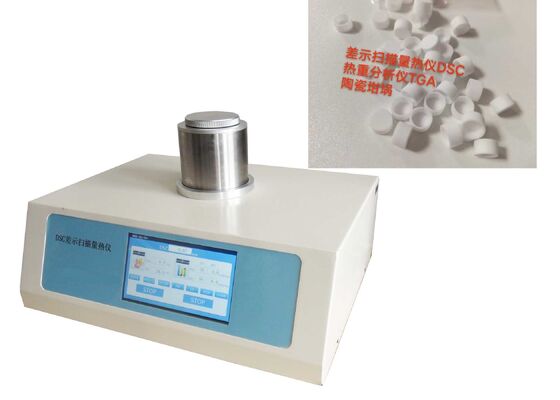

Furnace Bracket
Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface 0

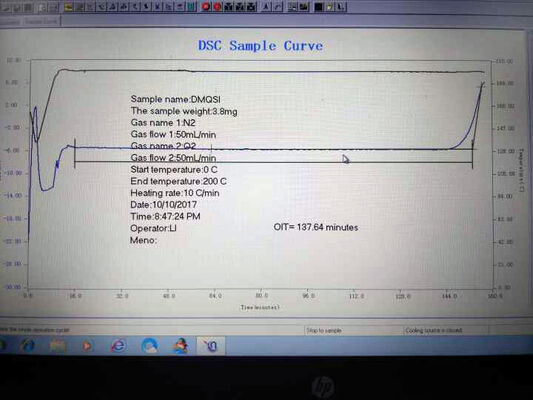

Software Interface
Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface 1
Frequently Asked Questions
What is the temperature control range and measurement accuracy of this DSC analyzer?

The temperature control range covers from ambient temperature to 600℃, with a temperature measurement accuracy of ±0.1℃ and temperature repeatability error less than 0.05℃, ensured by dual temperature probes and proprietary temperature control technology.

What is the adjustable range of heating and cooling rates for the DSC furnace?

The heating rate is adjustable from 0.1℃/min to 99.9℃/min, and the cooling rate ranges from 0.1℃/min to 50℃/min (supported by compressor-driven circulating cooling water), meeting diverse test rate requirements.

What are the specifications of the gas control system for this DSC instrument?

It is equipped with a dual-channel gas automatic switching system (oxygen and nitrogen), with a flow adjustment range of 0-500 mL/min and a switching stabilization time of less than 10 seconds, ensuring stable and accurate gas supply during oxidation induction period tests.

Product Images
Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface 2 Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface 3 Differential Scanning Calorimetry Machine Providing Detailed Temperature and Gas Flow Settings with Touch Screen Interface 4
