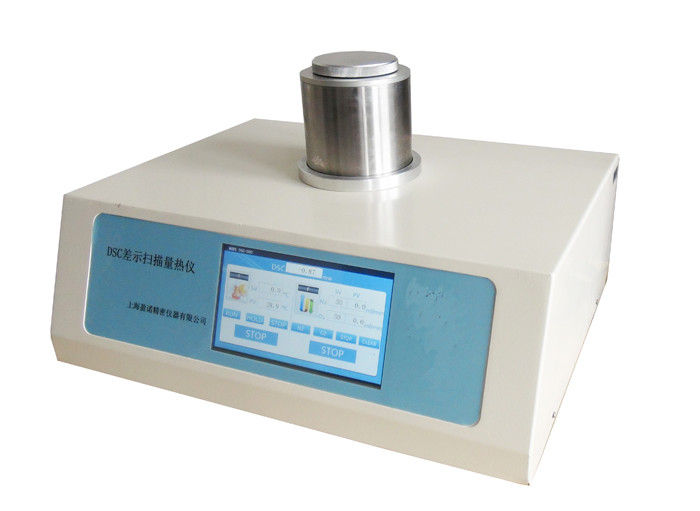

High Precision Differential Scanning Calorimetry Machine DSC-800B Model

High Precision Differential Scanning Calorimetry Machine DSC-800B Model
High Precision Differential Scanning Calorimetry Machine DSC-800B Model

Large Image :  High Precision Differential Scanning Calorimetry Machine DSC-800B Model

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: DSC-800B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 6000~9000 USD
Packaging Details: Carton
Delivery Time: 10~15 work days
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: DSC-800B Differential Scanning Calorimeter/Oxidation Induction Time Temperature Range: Room Temperature To 800 ℃
Temperature Resolution: 0.1 ℃ Heating Rate: 0.1 ~ 80 ℃ / Min
DSC Range: 0~±200mW Gas Flow: 0-200mL/min
DSC Sensitivity: 0.1 MW Gas Pressure: 0.2MPa
High Light:

differential thermal analyzer

,

dsc apparatus

DSC-800B Differential Scanning Calorimeter/Oxidation induction time



Technical feature:

1. Wide screen touch structure of industrial level, rich display information, including the set temperature, sample temperature, oxygen flow rate,Nitrogen flow, differential thermal signals, all kinds of switch state, flow goes to zero.

2. USB communication interface, generality is strong, reliable communication don't interrupt, support the restore connection function.

3. Furnace structure is compact, arbitrary adjustable cooling rate.

4. Improved installation process, all adopt the machinery fixed way, completely to avoid contamination of furnace inside colloid to differential thermal signal.

5. Double temperature probe, make sure the height of the sample temperature measurement repeatability. 6. Temperature sensor is installed on furnace walls all the way, used for PID control of the furnace body temperature, but due to the temperature of thermal inertia, conduction to the temperature on the sample have some deviation, and deviation degree of chun xiaqiu winter is different, therefore, with one temperature probe temperature control and temperature measurement, differential thermal signals and temperature signals, the error is larger; The instrument in the bottom of the sample how to install a temperature probe, used to measure the real temperature of the sample, and used our special temperature control technology, control the temperature of furnace wall temperature to reach the set temperature.

7. Digital gas mass flowmeter atmosphere automatic switching two way traffic, fast switching and stable time is short.

8. Standard standard samples, convenient customer constant temperature correction coefficient.

9. Software adaptive resolution of computer screens, each software automatically according to the computer screen size to adjust the curve display mode. Support for notebook, desktop; Support the Win2000, XP, VISTA, Windows 7 operating system, etc

10. Support user programming procedures, to achieve fully automated measuring step. Software provides dozens of commands, users can according to your own measurement steps, and combined the orders, and save. Complex operation is simplified into a key operation.

Technical parameter

Temperature range room temperature ~800℃
Temperature resolution 0.01℃
Heating rate 0.1~80℃/min ;
Temperature control mode rise in temperature, constant temperature (Programs control automatically)
DSC range 0~±200mW
DSC resolution 0.01mW
DSC sensitivity 0.1mW
Working power supply AC 220V 50Hz or custom-made
Atmosphere control of gas nitrogen ;oxygen (instrument changes automatically)
Gas flow 0-200mL/min
Gas pressure 0.2MPa
Accuracy of gas flow 0.2mL/min
Matching crucible Alumina crucible Φ6.7*3mm
Parameter standard equipped with standard material(indium ,tin, zinc) the user can correct the temperature and enthalpy
Data interface standard USB interface
Display mode 24bit color 7 inch LED touch screen display
Output mode computer and printer

Standard Configuration list:

Model quantity unit note
DSC 1 SET

Fit Model:

DSC-500A

DSC-500B

DSC-800B

DSC-500BL

DSC-1150B



Aluminum crucible 300 PCS
Standard test samples (indium, tin, and zinc) 1 Part
power wire and USB 1 PCS
Software CD 1 PCS
tweezers 1 PCS
Medicine spoon 1 PCS
Custom valve connector 2 PCS
Oxygen and nitrogen gas duct 5 Meter
quick coupling 2 PCS
Soft dog 1 PCS
Fusing glass fuse 4 PCS



Package:

Product weight:23 kg

product dimensions: length 45 cm * 30 cm * 27 cm

aluminum box size: 41 cm * 30 cm * 53 cm

paper box outside wrapping paper box size: 50 cm * 60 cm* 39 cm
