Differential Scanning Calorimetry Machine Offering Precise Thermal Analysis for Material Testing and Research Applications

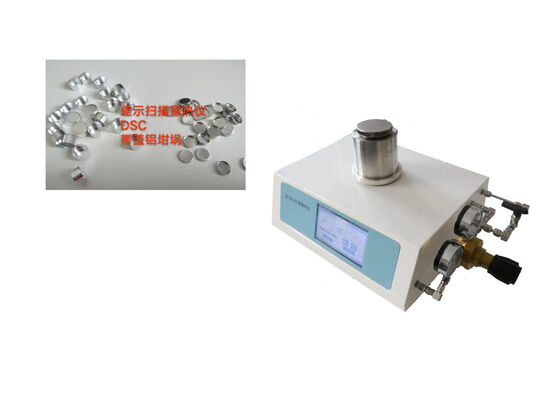

Large Image : Differential Scanning Calorimetry Machine Offering Precise Thermal Analysis for Material Testing and Research Applications

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 CE
Model Number:	DSC-100A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden box
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Differential Scanning Calorimetry Machine Offering Precise Thermal Analysis For Material Testing And Research Applications	Model:	DSC-100A
Certificate:	ISO, CE	DSC Range:	0～±600mW
Temperature Range:	Room Temperature ~ 600℃ Air Cooling	Heating Rate:	0.1~100 ℃/min
Temperature Resolution:	0.01℃	Temperature Fluctuation:	±0.01℃
Highlight:	Differential Scanning Calorimetry Machine for material testing , Precise thermal analysis DSC machine , Research-grade Differential Scanning Calorimeter

Differential Scanning Calorimetry Machine

Precise Thermal Analysis for Material Testing and Research Applications

Instrument Overview

Differential Scanning Calorimetry (DSC) has gained widespread adoption across industries and research sectors, serving as both a routine quality control instrument and a sophisticated research tool. This technique precisely measures the temperature and heat flow associated with thermal transitions within materials, enabling in-depth analysis of material thermal behavior.

Our DSC instrument is a heat flux differential scanning calorimeter featuring excellent repeatability and high measurement accuracy—making it particularly suited for the precise determination of specific heat capacity. Key operational advantages include simplified calibration procedures, compatibility with low-melting-point samples, and fast, reliable test execution.

It boasts an extremely broad application scope, with primary use cases in material R&D, performance characterization, and quality assurance (QA) processes.

Material Properties Analysis

DSC technology excels in analyzing a comprehensive range of material properties, including:

Glass transition temperature (Tg)
Cold crystallization
Phase transition
Melting and crystallization behavior
Product stability
Curing/crosslinking reactions
Oxidation induction time (OIT)

Measurable Parameters

Key parameters measurable by our DSC instrument include:

Curing reaction temperature and thermal effect of polymeric materials
Phase transition temperature and thermal effect of materials
Crystallization temperature and thermal effect of polymeric materials
Melting temperature and thermal effect of polymeric materials
Glass transition temperature (Tg) of polymeric materials
Other thermal behavior-related characteristics

Reference Standards

GB/T 19466.2 - 2004 / ISO 11357-2:1999 Part 2: Determination of glass transition temperature;
GB/T 19466.3 - 2004 / ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy;
GB/T 19466.6 - 2009 / ISO 11357-3: 1999 Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induction temperature (kinetic OIT).

Technical Specifications

Parameter	Specification
DSC Range	0~±600mW
Temperature Range	Room temperature~600℃
Heat-up Rate	0.1~100℃/min
Temperature Resolution	0.01℃
Temperature Fluctuations	±0.01℃
Temperature Reproducibility	±0.1℃
DSC Accuracy	0.001mW
DSC Sensitivity	0.01uW
Temperature Control Method	Heating up and constant temperature (automatic control of the whole program)
Curve Scan	Heating up the scan
Air Control	The instrument switches automatically
Display Mode	The 24bit color 7-inch LCD touchscreen display is shown
Data Interface	Standard USB interface
Instrument Standards	Equipped with standard substances (tin), the user can correct the temperature and thermal enthalpy
Note	All technical indicators can be adjusted according to the user needs

Frequently Asked Questions

Q1: What core thermal performance parameters can the DSC instrument measure?

A1: It can accurately determine key parameters including glass transition temperature (Tg), curing reaction temperature & thermal effect, phase transition temperature & thermal effect, crystallization/melting temperature & thermal effect, oxidation induction time (OIT), and cold crystallization behavior—primarily for polymeric and other thermally responsive materials.

Q2: What is the temperature measurement range of your DSC instrument?

A2: Our standard DSC models offer a temperature range of -150°C to 700°C (customizable up to 1000°C for high-temperature applications), covering the thermal analysis needs of most industrial materials and research scenarios.

Q3: What is the thermal flux resolution and measurement accuracy of the instrument?

A3: The thermal flux resolution reaches ±0.01 mW, with a temperature measurement accuracy of ±0.1°C and a heat flow accuracy of ±1%—ensuring precise and reliable data for both routine quality control and advanced material research.

Q4: What are the requirements for sample size and form when using the DSC instrument?

A4: The recommended sample mass ranges from 1-10 mg (optimized for thermal response sensitivity). It supports solid samples (powders, films, fibers) and small-volume liquid samples, with compatible sample pans made of aluminum, platinum, or ceramic (for corrosive/high-temperature samples).
