Lcd Display Hrc Digital Hardness Testing Machine ISO 9001

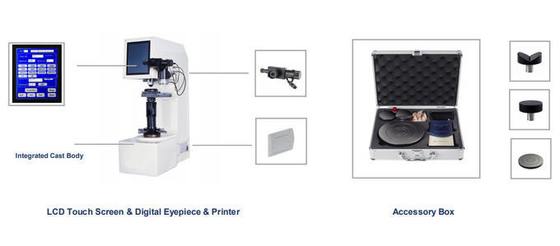

Large Image : Lcd Display Hrc Digital Hardness Testing Machine ISO 9001

Product Details:

Place of Origin:	CHINA
Brand Name:	JINHAIHU
Certification:	ISO 9001
Model Number:	LHBRV-187.5DX ( Touch Screen)

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden case
Delivery Time:	7 -15 days
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	LCD Display HRC Tester Vickers Rockwell Brinell Hardness Testing Machine	Indication Of Hardness Value:	Large LCD Screen Display
Data Output:	Inside Printer	Max Height Of Specimen:	160mm
Magnification:	100X,50X,25X	Duration Time:	0~60s
Net Weight:	About 85Kg
High Light:	lcd display digital hardness testing machine , hrc digital hardness testing machine , hrc digital rockwell hardness testing machine

LCD Display HRC Tester Vickers Rockwell Brinell Hardness Testing Machine

Rockwell Brinell Vickers Durometer Touch Screen Digital Multi-Function LCD Display Universal Hardness Tester

Functions & Features:

● Brinell, Rockwell and Vickers three test modes

● Touch Screen; Digital, multi-function LCD display
● Electronic closed-loop system
● Automatic loading & unloading
● Conversion scales of different kinds of hardness
● With built-in printer for data output
● With RS232 interface for connecting to the computer
● Meets or exceeds GB/T230.2, ISO 6508-2, ASTM E18 and JIS Z2245 standards

Application:

● Widely used in the Rockwell, Brinell, and Vickers hardness test of Ferrous and nonferrous metals

● Castings, annealed steel, normalized steel, non-ferrous metals and soft alloys ( Brinell )
● Heat-treated materials ( Rockwell )
● Nitriding layer, ceramic, sheet, foil, plated layer, and minute parts ( Vickers )

Technical Parameters:

Technical Parameters
Model		LHBRV-187.5DX ( Touch Screen)
Indication of Hardness Value		Large LCD screen display
Data output		Built-in Printer, RS232
Duration time		0-60s
Carried Standard		GB/T230.2,ISO6508-2,ASTME18,JIS Z2245
Testing force		Rockwell: 60kgf(588N), 100kgf(980N), 150kgf(1471N)
		Brinell: 15.625kgf (153.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 125kgf (1226N), 187.5kgf (1839N)
		Vickers: 5kgf (49.3N), 10kgf (98.7N), 20kgf (196.1N), 30kgf (294.2N), 50kgf (490.3N), 100kgf (980.7N)
Test Scale		Rockwell: HRA, HRB, HRC, HRD, HRE, HRF, HRG
		Brinell: HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW5/125, HBW2.5/187.5
		Vickers: HV5, HV10, HV20, HV30, HV50, HV100
Hardness measuring range		Rockwell: 20-90HRA 20-100HRB 20-70HRC
		Brinell: 5-650HBW
		Vickers: 5-3000HV
Max Height of Specimen		Rockwell:180mm, Brinell:165mm, Vickers:165mm
Magnification		100X,50X,25X
Distance of Indenter to outer wall		160mm
Power supply		AC220V+5%,50-60Hz
Overall Dimension (mm)		550230780
Net weight		About 85Kg

Standard Accessories:

Standard Accessories
Name	Quantity	Name	Quantity
Diamond Rockwell Indenter	1	1.5875mm Ball Indenter	1
Diamond Vickers Indenter	1	Brinell φ2.5,φ5 mm Ball Indenter	2
Rockwell Hardness block	5	Large, Medium, “V” shaped Testing Table	3
Brinell Hardness block	1	Vickers Hardness block	1
Digital Eyepiece 10x	1	Objective 2.5x, 5x, 10x	3
Microscope base ( with internal headlamp)	1	Sliding Testing Bench	1
External headlamp	1	Dustproof cover	1
Paper for thermal printer	1	Screwdriver & Level vial	2
Power Cable	1	RS232 Cable	1
Operation Manual	1	Product Certificate & Warranty	2

HRC HRD HRF Micro Vickers Hardness Tester With Digital Touch Screen 3
