Product Details:
Payment & Shipping Terms:
|

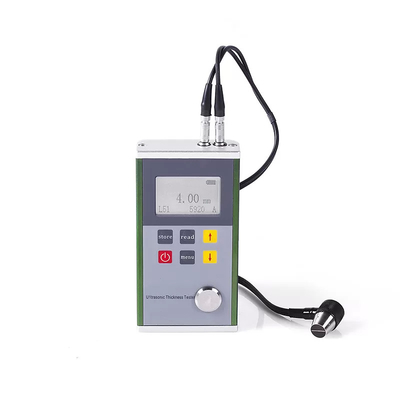

| Product Name: | 0.70mm Ultrasonic Thickness Gauge Pipe Wall Thickness Measuring Instrument | Model: | Leeb330 |
|---|---|---|---|
| Measuring Range(mm): | 0.7~300 | Resolution(mm): | 0.1 |
| Accuracy(mm): | ±(1%H+0.1)mm, H Is Thickness | Velocity Range(m/s): | 5920 |
| Storage: | No | Operating Temperature: | -10℃~60℃ |
| Dimensions: | 130×70×25mm | Weight: | 420g |
| High Light: | 0.70mm ultrasonic thickness gauge,pipe wall ultrasonic thickness measuring instrument,metal shell ultrasonic thickness measuring instrument |
||
Function & Feature:
● High quality metal sheel.
● Two display units: mm and inch.
● With coupling state indication.
● Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
Measure Materials:
Measuring Material:
● Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Technical Specification:
| Model | Leeb330 | |
| Measuring range(mm) | 0.7~300 | |
| Resolution(mm) | 0.1 | |
| Accuracy(mm) | ±(1%H+0.1) | |
| H refers to the thickness of testing piece | ||
| Velocity range(m/s) | 5920 | |
| Velocity measurement | √ | |
| Storage | No | |
| Shell | Metal | |
| Operating temperature | -10°C~60°C | |
| Dampness | 20%~90% | |
| Dimensions | 130×70×25mm | |
| Power supply | 2 AAA alkaline batteries | |
| Weight | 420g | |
