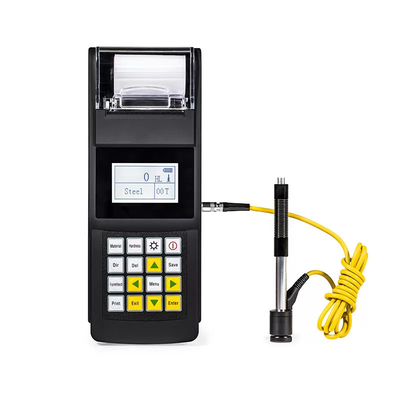

Portable Lightweight Leeb Hardness Tester Measuring Device With RS232 PC Connection

Large Image : Portable Lightweight Leeb Hardness Tester Measuring Device With RS232 PC Connection

Product Details:

Place of Origin:	China
Brand Name:	JINHAIHU
Certification:	ISO 9001
Model Number:	Leeb140

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden case
Delivery Time:	7 -15 days
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram, Western Union

Contact Now

Detailed Product Description

Product Name:	Portable Leeb Hardness Measuring Device With RS232 PC Connection	Measuring Range:	(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness Parameter:	HL, HRC, HRB, HS, HB, HV	Accuracy:	±6HLD/ ±1.5HRC
Memory:	600 Groups	PC Connection:	Available
Overall Dimension (mm):	230×86×46mm	Net Weight:	400g
High Light:	Lightweight Leeb Hardness Tester , RS232 Leeb Hardness Tester , RS232 Digital Durometer

Portable Leeb Hardness Measuring Device With RS232 PC Connection

Portable Leeb Hardness Gauge For Metal Materials

Features and Function:

With built-in thermal printer
PC Software for data transmission, analysis and measurement reports printing
Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
Large LCD screen with back-light, showing all functions and parameters
Test at any angle and direction, even upside down
Conversion to tensile strength (U.T.S)
Optional probe D,DC,D,DC,DL,D+15,G,C,E
Rechargeable Li-ion battery

Measuring Materials:

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Application Fields:

Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
Large work-piece within a wide range of more rapid test measurement site

Technical Specification:

Model	Leeb140
Measuring Range	(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter	HL, HRC,HRB, HS,HB,HV
Accuracy	±6HLD/ ±1.5HRC
Display	LCD with back-light
Memory	600 groups
PC Connection	Available
Printer	Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm
Battery type	Rechargeable Li-ion battery
Operating temperature	-20℃~+60℃
Dimensions	230×86×46mm
Impact Device Type	D,DC,DL,D+15,G,C,E
Weight	400g
Standard Delivery	Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer.
Optional Accessories	Optional Impact Devices,Shaped support ring,Paper for printer
