Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace
Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

Large Image :  Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

Product Details:
Place of Origin: China
Brand Name: JINHAIHU
Certification: ISO 9001
Model Number: SX2-2.5-12N
Payment & Shipping Terms:
Packaging Details: Wooden case
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Detailed Product Description
Product Name: Muffle Furnace/Box-type Resistance Furnace/Ash Test Model: SX2-2.5-12N
Furnace Size: 300*400*600mm The Highest Temperature: 1200℃
Apply To Power Supply: AC 220V Input Power: 2.5KW
Highlight:

laboratory muffle furnace

,

laboratory electric furnace

SX2-2.5-12N Muffle furnace/Box-type resistance furnace/Ash test

Characteristics of the equipment:

1) Heat up fast By 100 ℃ heat up to 1000 ℃, about 100 minutes

2) Quick ashing

As the ashing furnace, can into the wind hole, pipe, is conducive to fill in fresh oxygen, accelerate ashing (optional)

3) Light in weight About 50 kg

4) Heat preservation performance is good .Thermal insulation material is Alumina bubble brick and expanded perlite bricks.

5) Temperature is controlled by time

After each step working temperature rises to the set value, the timer automatically start to work, according to the set time constant temperature.

6) The temperature control precision Adopts digital display instrument, accurate temperature control.

7) Practical safe Grounding terminal and protect the personal safety

Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace 0

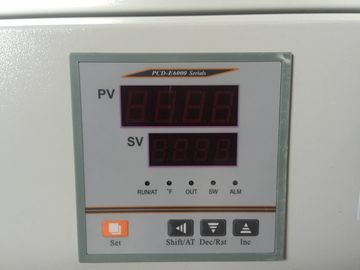

The temperature controller Technical parameters

The control mode Single point of SPC
Apply to power supply AC 220V
Number of workers 1
Control precision ±1℃



Technical parameters

The furnace model 2L
Temperature rise time 100-1200℃ about 100min
Power source AC 220V
power(KW) 2.5
Heating element type Resistance wire
The sensor type K
Furnace size(mm)

80*120*200mm
