| Place Of Origin: | Beijing, China | Product Name: | Hydrostatic Pressure Testing Machine To Perform Full Test Accord To ISO 1167 |
|---|---|---|---|
| Model: | XGY-10C | Max. Pressure: | 10MPA, 100BAR, 16MPA, 160BAR |
| Pressure Resolution: | 0.01MPA, 0.1BAR | Test Stations: | 5, 10, 15, 20, 25, 30, 50 Can Customized |
| Temp. Range: | 15-95 ℃ | Constant Pressure Accuracy: | -1%~+2% |
| Material Of Water Tank: | 304# Stainless Steel | Material Of End Caps: | 304# Stainless Steel Or Carbon Steel |
| Power: | AC380V ±10% ,50/60Hz | Standards: | ISO 1167, ASTM D1598/1599 |
| High Light: | iso 1167 hydro pressure testing machine,16mpa hydro pressure testing machine,pc control hydrostatic pressure machine |
||
Hydrostatic pressure testing machine to perform full test accord to ISO 1167
Ⅰ. Summary:

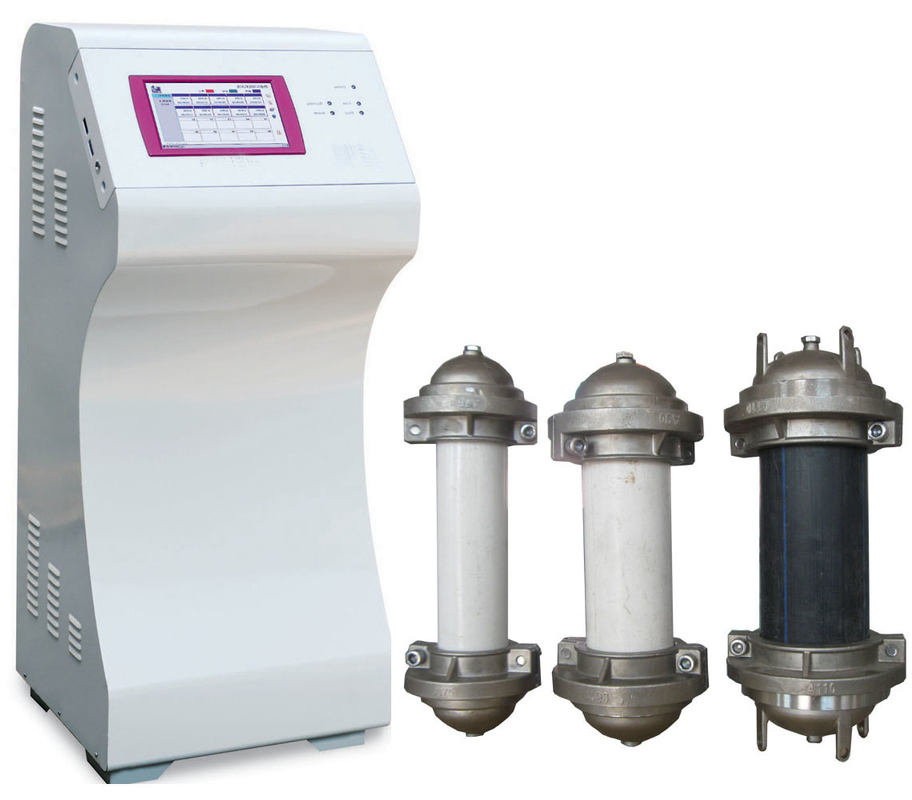

Hydrostatic pressure testing machine to perform full test accord to ISO 1167 is used to do instant bursting test and long time pressure test on plastic pipes for fluid transport, like to measure the damage time of thermoplastic pipe under a constant pressure. This instrument is composed of a main frame of pressure control, a constant temperature tank and end caps. For this product is of high precision, good looks, simple structure, good stability and convenient operation, it becomes a necessary testing equipment for research institutes, quality inspection departments and pipe manufacturers.
Ⅱ. System Feature:
1. Industrial tablet control, direct control.
2. The machine with "precision pressure control unit" multi-channel combination.
3. Each station is independently controlled no interference.
4. 5-statiions, 10-stations, 15-stations, 20-stations and other multi-station optional, up to 60 stations and above. With a hydrostatic test, blasting test.
5. Max. pressure: 10,16,20, 30MPa ...
6. Pipe diameter range: Φ16 ~ 2000mm can customized.
7. Perfect test system on the burst, pressure maintaining, pressure relief, overvoltage, operation, the end of the leak, rupture eight test states to make accurate analysis and judgment, with real-time monitoring, data storage.
8. Power protection, test report storage / print output and other functions. Automatically determine the effective time, invalid time, the remaining time and other parameters, to prevent the evening, holidays and other periods of failure time, invalid time.
9. When power-down time ensure that the test is accurate and smooth completion. Instrument structure is reasonable, stable performance, easy operation, display intuitive.
10. Rich software interface (multi-language environment to meet customers in different countries and regions.
Ⅲ. Meet standards
GB / T 6111-2003, GB / T 15560-95, GB / T 18997.1-2003, GB / T 18997.2-2003, ISO 1167-2006, ASTM D1598-2004, ASTM D1599, etc.
| Pipe diameter range | Φ8~Φ1600mm | |
| Working stations | 5, 10, 15, 20, 25, 30 or 50 can customized | |
| Operation mode | PC control | |
| Pressure range | 0.2~10MPa (or customized) | |
| Pressure resolution | 0.001MPa, 0.01Bar | |
| Pressure control accuracy range | -1%~+2% | |
| Measuring range | 5%~100% F.S. | |
| Timing range | 1s~9999H 99M 99S | |
| Timing accuracy | ±0.1% | |
| Display resolution | 1s | |
| Min. Time setting unit | min | |
| Temperature control system |
15~95℃ with cooling system |
|
| Temperature control accuracy | ±0.5℃ | |
| Power supply | 380V, three-phase four-wire system | |
Ⅴ. Configuration:
1. Pressure control host;
2. Pressure station;
3. End closures;
4. Water tank;
5. Cooling system.
