| Product Name: | High-Pressure Hydrostatic Testing Machine With Pressure Range 0-200 Bar | Testing Range: | 0-200Bar, 0-20MPA |
|---|---|---|---|
| Accuracy: | -1%~+2% | Test Temperature Range: | 10~95℃ |
| End Caps: | Φ8-1800mm | Display: | LCD |
| Test Curve: | Pressure-time And Pressure-temperature | Safety Protection: | Over Pressure/Over Temperature |
| Test Mode: | Automatic | Test Medium: | Water |
| Customized Support: | OEM | Certificate: | CE, ISO |
| High Light: | high pressure hydrostatic testing machine,200 bar hydrostatic testing machine,hydro pressure testing machine from china |
||

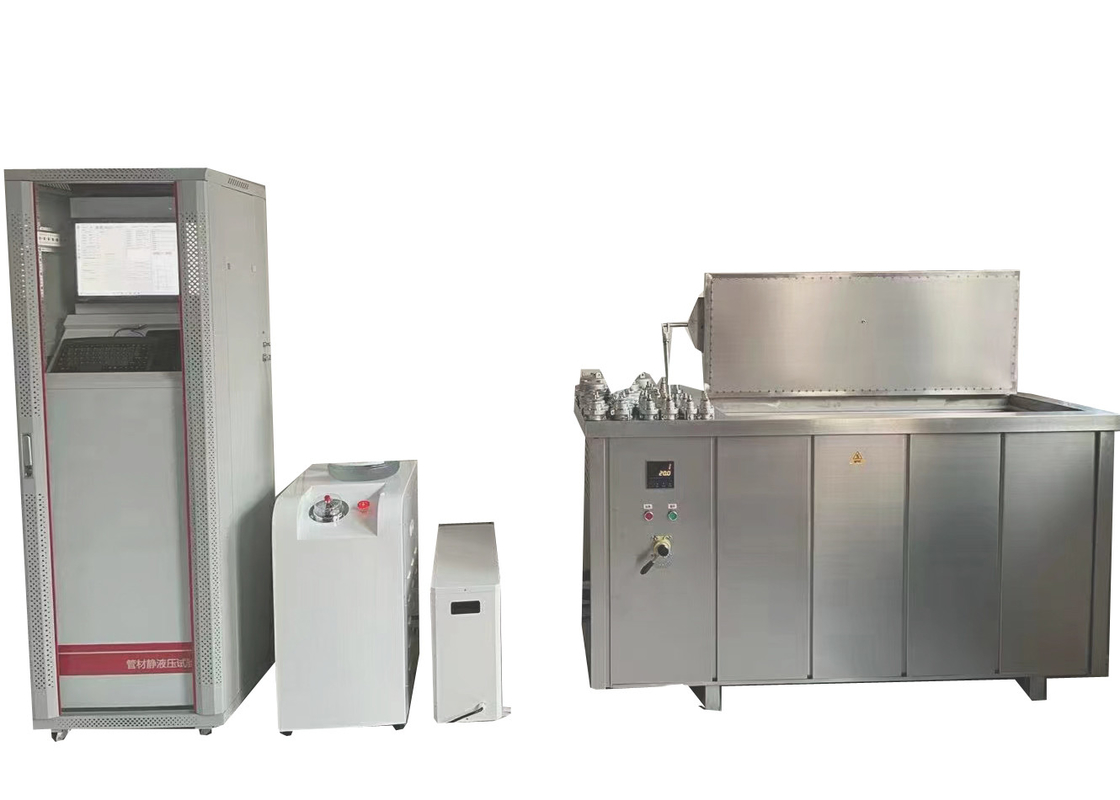

The testing machine system is used to maintain the pipe or pipe fittings in a certain pressure range for long-term internal pressure test, in the test pipe or pipe fittings ruptured or completed automatically stop, and can save the pressure curve and print the test report. In terms of control: Fill pressure and pressure relief by filling pressure and discharge pressure solenoid valve open to execute, steady pressure mainly through the control of filling pressure and discharge pressure solenoid valve point move open to achieve the effect of precise control, this machine has the automatic constant voltage, electric pressure relief, cleaning, and the function of automatic calibration, the equipment is imported from the other electromagnetic valve, unique sealing structure, when the water clean, To ensure the sealing and durability of the solenoid valve, is a kind of economic and practical, functional variety, high degree of automation testing machine.
1.The machinr is controlled by Industrial Personal Computer.
2.Every station controls separately. The most station can reach 100.
3.It can do hydrostatic test, burst test, 8760 test and so on.
4.The pressure can be from 3 to 100MPa.
5.It can distinguish eight testing condition including pressure up, pressure down, pressure compensation, pressure exceeding, running, ending, leakage, and exploding. And also it can judge both effective and ineffective time parameters automatically. (The effective time means the time of the pressure within the setting pressure.)
| Model | XGY-20C | |
| Diameter range | Φ8-1800mm | |
| Stations | 5, 10, 12, 15, 20, 25, 50, etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 200Bar, 20MPa |
| Control accuracy | ±1% | |
| Display resolution | 0.1Bar, 0.01MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~999h59m59s |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.5KW | |

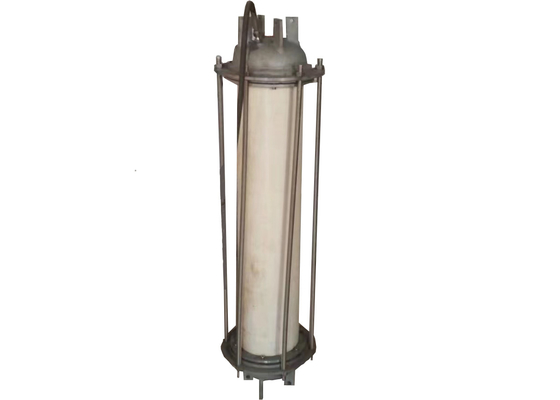

| end caps models | from Φ8 to 1800mm | |
| Water tank size | accoard to the pipe size | |
| Temperature range | 15-95℃ | |
| Dimensions (three stations) |
750×650×1720(mm)or others |
|
