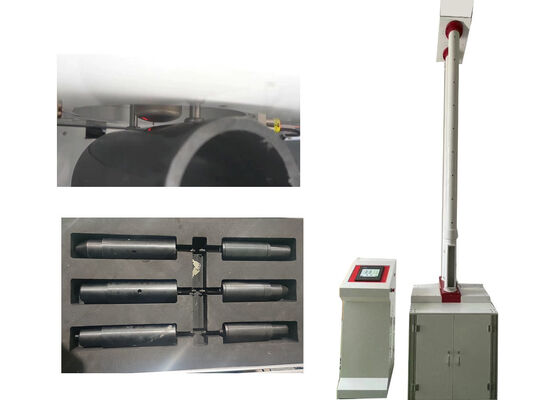

Drop Hammer Test Equipment, External Impact Tester for Plastic Pipes & Non-metallic Engineering Materials Impact Resistance Test

The XJL Drop Hammer Test Equipment is a PLC-controlled external impact tester engineered to evaluate the impact resistance of thermoplastic pipes, fittings, and non-metallic engineering materials. Operators can predefine the impact height, and the system automatically lifts the hammer to the preset elevation while displaying real-time height readings on screen.

The unit prevents secondary impact events and delivers outstanding operational stability and measurement accuracy. It conforms to the technical specifications of ISO 3127, ISO 6603, ISO 4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and other relevant standards.

• PLC control architecture with predefined impact height parameter settings
• Automatic hammer lifting to the preset target elevation
• Real-time hammer height readout continuously presented on the display

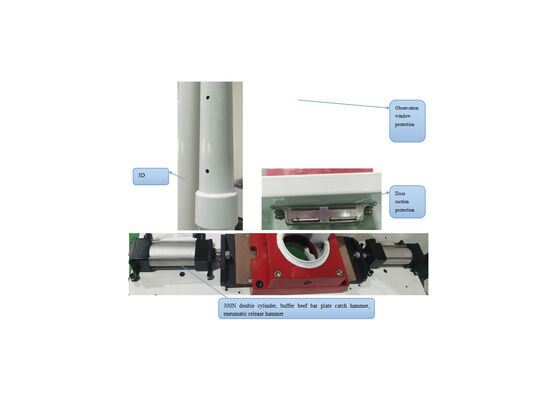

• Prohibits secondary impact events for reliable, repeatable results
• Automatic zero-point calibration for consistent measurement accuracy
• Compatible with a broad range of international testing standards

1. Adjust the elevation of the V-type specimen support by regulating the lifting rod mounted on the base side, then place the pipe specimen onto the support.
2. Manually fine-tune the positioning height of the pipe specimen.
3. Enable automatic zero-point calibration.
4. Configure the target height of the impact hammer and initiate automatic lifting of the hammer to the preset elevation.
5. Trigger the hammer release to perform the impact test.

We deliver full-spectrum after-sales technical services for Drop Hammer Test Equipment. Our engineering and technical team provides professional guidance covering equipment installation, routine maintenance, fault diagnosis, calibration, and other related services. Customized solutions are also available to cater to your unique application requirements.

We consistently strive to deliver premium-grade customer support. Our technical specialists remain accessible round-the-clock to resolve your inquiries and technical issues.

Should you require further details, feel free to reach out to us at your earliest convenience.

The Drop Hammer Test Equipment is firmly packed within a wooden crate for shipment. The crate accommodates the main instrument, operation manuals, spare components, and matching accessories. Exterior markings on the crate clearly indicate the equipment name, model specification, and serial number.

Complete documentary paperwork is prepared for shipment, including commercial invoices, packing slips, and all other certificates mandatory for cross-border delivery. Freight charges are calculated according to the destination address and selected shipping mode.
