Product Overview

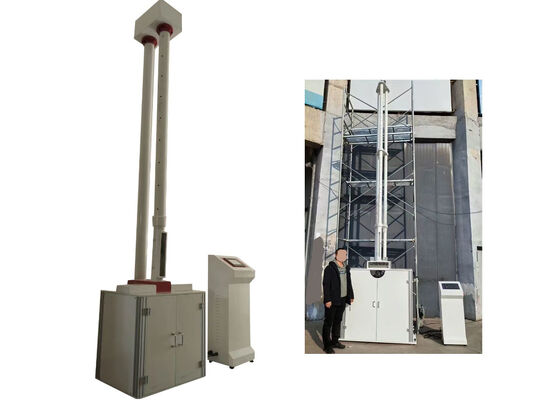

The Drop Weight Impact Testing Machine is a precision-engineered drop hammer tester designed for evaluating material cushioning and impact performance. With adjustable impact energy and a configurable minimum drop height of 10mm, it delivers accurate, repeatable results for specimens with low impact resistance. This equipment is widely adopted for research and development, quality verification, and material characterization across aerospace, automotive, construction, and other industrial sectors.
Standards & Compliance
This drop hammer test equipment is engineered to satisfy a comprehensive range of international specifications, enabling impact assessments in line with prevailing industrial testing norms:
- ISO 3127, ISO 6603, ISO 4422, ISO 11343, ISO 8256, ISO 16422
- ASTM D2444, ASTM D3763, ASTM D7136
- EN 744, EN 1411
Key Features
- Adjustable impact energy with a configurable minimum drop height of 10mm for precise low-resistance specimen measurement
- Automatic personal safety safeguards including specimen chamber interlock protection to secure operator safety throughout test cycles
- Robust and long-lasting construction supporting diversified testing scenarios
- Flexible applicability with integrated safety mechanisms and alignment with global standards
- Measurement accuracy reaching 0.5% and maximum testing energy of 300J
Technical Specifications
| Model: XJL-630 |
| Ambient Temperature |
10℃ – 35℃ |
| Hammer (12 sets total) |
Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
|
| Height of Fall |
0mm – 3000mm, error ≤ ±2mm |
| Diameter of Sample |
Φ630mm |
| Deviation of Impact Center from Fixture Center |
≤ 2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC ± 10% |
| Outline Dimension |
720mm × 600mm × 4850mm |
| Net Weight |
600kg |
Support & Services
We supply full-spectrum technical services for drop hammer test equipment. Our professional engineering and technical staff deliver expert guidance covering equipment commissioning, routine maintenance, fault diagnosis, calibration, and other related services. Customized solutions are also available to satisfy your unique testing requirements.
We strive to deliver premium-grade customer support. Our support team stands ready around the clock to address your inquiries and resolve any technical concerns. Feel free to reach out to us whenever you require further details.
Packing & Shipping
The drop hammer test equipment is firmly packed inside a wooden crate prior to shipment. The package encompasses the main unit, operation manuals, plus all auxiliary spare parts and matching accessories. Shipping markings featuring the equipment name, model, and serial number will be affixed externally on the crate.
All mandatory documentation will be prepared for consignment, including commercial invoice, packing list, and other certificates required for cross-border logistics. Freight charges are calculated according to the delivery destination and selected shipping mode.
Frequently Asked Questions
Q: What constitutes Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing apparatus produced by JHH in Beijing, China, designed to quantify the impact resistance of test articles.
Q: What function does Drop Hammer Test Equipment serve?
A: This equipment evaluates the impact resistance of specimens so manufacturers can validate and guarantee end-product quality.
Q: What specimen categories are compatible with Drop Hammer Test Equipment?
A: It accommodates multiple pipe varieties including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, low-pressure transmission pipes, foam core pipes, double-wall corrugated pipes, and PE water supply pipes. Rigid plastic sheets are also applicable test samples.
Q: What accuracy level can Drop Hammer Test Equipment achieve?
A: Drop Hammer Test Equipment features a measurement accuracy reaching 0.5%.
Q: What is the upper limit of testing capacity for Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
