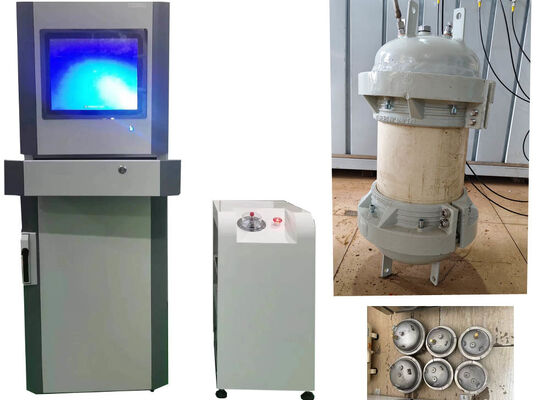

Plastic Pipe Hydrostatic Pressure Testing Machine, 0-100bar Burst Test Equipment Compliant with ISO1167 for Thermoplastic Pipe Pressure Resistance Test

This hydrostatic pressure testing machine incorporates sophisticated technology capable of generating pressure–time and pressure–temperature test curves. Such functionality delivers precise, trustworthy test data to support analytical evaluation and engineering judgement.

The instrument is engineered to satisfy international specifications covering ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599 and ISO 13479.

• High Pressure and High Temperature Endurance: Robust structural build enables assessment of test workpieces deployed under continuous pressure and high-temperature working conditions, securing dependable performance evaluation for severe service environments.
• Ergonomic Operation: Equipped with straightforward control interfaces for rapid configuration and operation. It demands low maintenance to extend continuous running time, and is fitted with protective mechanisms including automatic pressure cut-off and emergency stop functions to safeguard operating personnel.
• Sophisticated Data Capture: Precision technical components are adopted to produce comprehensive pressure–time and pressure–temperature curves, guaranteeing accurate and reproducible test outcomes.

• An operation terminal with touchscreen or PC access is fitted for configuring all test parameters.
• Occupying a footprint of under 1 square meter, the unit supports up to 50 distinct pressure levels, including water supply pressure.
• It features intelligent recognition of specimen dimensions and materials, which enables the system to output optimized pressure ramp strategies and algorithms automatically.
• High-precision pressure regulation is implemented. Independently configurable inlet pressure for each module lowers wear on solenoid valves and extends overall equipment service life.
• All metal wetted parts in contact with the test medium are manufactured from premium stainless steel.
• The intuitive operator display supports multi-language switching to accommodate varied global client demands.
• On-the-fly pressure calibration is available as an optional function; the system can remain operational while calibration is performed.
• Multi-layer protection mechanisms are integrated covering electrical, mechanical and software subsystems.
• Stable data transmission is realized via TCP/IP protocol for seamless data communication.

This tester conforms to a series of domestic and international testing standards, including ISO 1167-2006, ASTM D1598-2004, ASTM D1599, ISO 9080, CJ/T 108 and ASTM F1335.
