Plastic Pipe Hydrostatic Pressure Testing Machine for Stable Test Data & Improved Safety Compliance

Plastic Pipe Hydrostatic Pressure Testing Machine for Stable Test Data & Improved Safety Compliance
Plastic Pipe Hydrostatic Pressure Testing Machine for Stable Test Data & Improved Safety Compliance
video play

Large Image :  Plastic Pipe Hydrostatic Pressure Testing Machine for Stable Test Data & Improved Safety Compliance

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-10C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7 -15 days
Payment Terms: T/T,L/C,D/A,D/P
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Plastic Pipe Hydrostatic Pressure Testing Machine For Stable Test Data & Improved Safety Compliance Testing Range: 0-10MPA
Accuracy: -1%~+2% Test Temperature Range: 15~95℃
End Caps: Φ​8-1800mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
Highlight:

Plastic Pipe Hydrostatic Pressure Testing Machine

,

Hydrostatic Pressure Testing Machine Safety Compliance

,

Hydrostatic Testing Machine Stable Test Data

Plastic Pipe Hydrostatic Pressure Testing Machine for Stable Test Data & Improved Safety Compliance

This hydrostatic pressure testing machine is supplied with end caps that accommodate pipe specimens ranging from Φ8 to 1800 mm in diameter. Custom support fixtures are available, making the unit well suited to OEM projects. Adjustable pressure output covers 0–100 Bar, supporting a diverse range of hydrostatic test scenarios for plastic pipe manufacturers and research laboratories.

The high-pressure hydrostatic tester generates two categories of test curves: the pressure–time curve and the pressure–temperature curve. The pressure–time curve evaluates specimen endurance under sustained constant pressure, while the pressure–temperature curve quantifies the influence of temperature on the service endurance of test samples. These dual curve outputs enable straightforward assessment of specimen strength and durability under variable operating environments.

Built for consistent, repeatable results, the machine helps laboratories improve test data stability while supporting safety compliance for plastic pipe products.

Standards Compliance

This testing instrument complies with international and industrial specifications, including:

  • ISO 1167-2006
  • ASTM D1598-2004
  • ASTM D1599
  • ISO 9080
  • CJ/T 108
  • ASTM F1335
Technical Parameters
Specifications of the plastic pipe hydrostatic pressure testing machine
ModelXGY-10C
Diameter rangeΦ8–1800 mm
Stations3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control modeMicro-control, industrial PC control
Display modeIndustrial PC LCD color display
Storage modePC storage
Print modeColor printer output
Test Pressure & Timing Control
Test pressure0.1–10 MPa
Control accuracy±1%
Display resolution0.001 MPa
Working range5%–100% FS
Indication error±1%
Timer range0–10000 h
Timer accuracy±0.1%
Timer resolution1 s
Power, Temperature & Configuration
Power380 V, 50 Hz, three-phase four-wire, 1.2 kW
End cap modelsFrom Φ16 to 1600 mm
Water tank sizeAccording to the pipe size
Temperature range15–95 °C
Dimensions (three stations)710 × 620 × 1710 mm (or other configurations)
Support and Services

Comprehensive technical service is offered for our hydrostatic pressure testing machines. Our seasoned technical team delivers the following support:

  • Equipment commissioning and installation
  • Fault diagnosis and professional technical consultation
  • Repair and routine maintenance work
  • Supply of spare components and consumable accessories
  • Software iteration and upgrade services

We strive to maintain premium customer service and respond promptly to all inquiries. Should you have any questions or concerns, feel free to reach out to our team at any time.

Frequently Asked Questions
Q1: Could you tell us the brand of this plastic pipe hydrostatic pressure testing machine?

A1: This hydrostatic pressure testing machine is branded JHH and is fabricated in Beijing, China.

Q2: What testing function does this plastic pipe hydrostatic pressure testing machine perform?

A2: This equipment is engineered to assess the hydrostatic resistance and bursting strength of plastic pipes.

Q3: What kinds of pipe specimens are compatible with this hydrostatic pressure testing machine?

A3: It supports tests on plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and similar materials.

Q4: How precise is the measurement of this hydrostatic pressure testing machine?

A4: Its measurement error is controlled within 0.1% of full scale.

Q5: What is the upper pressure limit of this hydrostatic pressure testing machine for pipe tests?

A5: The maximum test pressure reaches 10 MPa, equivalent to 100 bar (1450 psi).

Product Images

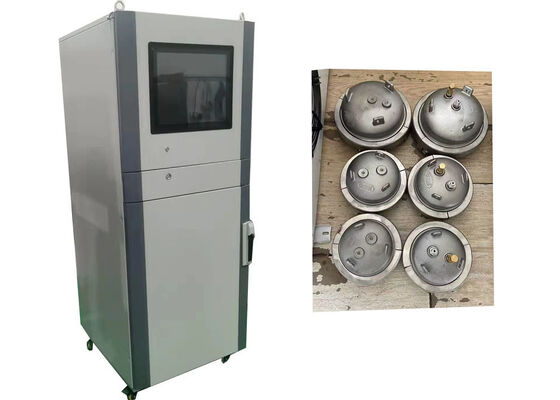

Plastic pipe hydrostatic pressure testing machine with multiple test stations and industrial PC control panelClose-up of hydrostatic pressure testing machine console showing pressure and temperature test curve displayPipe end caps and support fixtures used with the plastic pipe hydrostatic pressure testing machine

Tag:

pvc pipe testing machine,

pipe pressure testing machine,

pipe hydrostatic testing equipment
