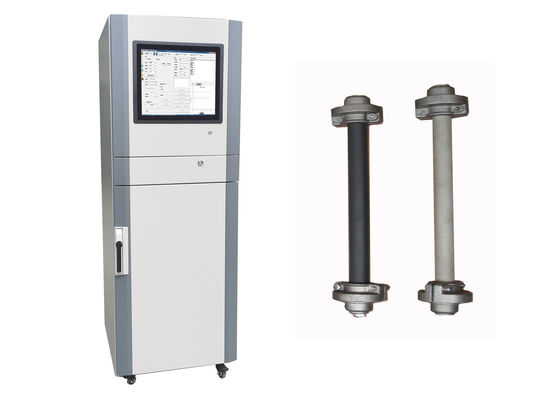

Plastic Pipe Hydrostatic Pressure Testing Machine
Advanced automated testing equipment for hydrostatic and burst strength evaluation of PE, PPR, and PVC pipes.
Applications
This fully automated hydrostatic pressure test apparatus evaluates pressure resistance performance of thermoplastic pipes, pipe fittings, and valves. It serves multiple sectors including building construction, water conveyance, gas distribution, and chemical processing. Ideal for manufacturers, suppliers, and end users requiring precise, dependable test outcomes.
Product Overview
The XGY-20C model features end caps compatible with pipe specimens ranging from Φ8-1800mm. This hydrostatic pressure testing machine complies with international standards including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479, GB/T 6111, and GB/T 15560.
As a multi-functional and user-friendly unit, this testing machine supports diverse pressure test regimes with sophisticated functions including automatic pressure regulation, auto water filling, and pressure relief safeguard mechanisms. These configurations simplify operational workflows and ensure operator safety throughout testing cycles.
Technical Specifications
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Test Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models |
Φ16 to 630mm |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or customized |
Support and Services
- Equipment commissioning and on-site installation
- Fault diagnosis and technical consultation
- Overhaul and routine maintenance service
- Supply of spare components and consumable parts
- Software version updates and function upgrades
Frequently Asked Questions
What brand manufactures the Plastic Pipe Hydrostatic Pressure Testing Machine?
This Hydrostatic Pressure Testing Machine carries the JHH brand and is fabricated in Beijing, China.
What testing function does the Plastic Pipe Hydrostatic Pressure Testing Machine perform?
This machine is engineered to evaluate the hydrostatic resistance and bursting strength of plastic pipes.
What kinds of workpieces and materials are compatible with this Hydrostatic Pressure Testing Machine?
The machine can inspect plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other pipe variants.
How about the measurement precision of the Hydrostatic Pressure Testing Machine?
The measurement accuracy of this Hydrostatic Pressure Testing Machine reaches 0.1% of full scale.
