Hydrostatic Pressure Testing Machine, Easy Operation Hydrostatic Tester for Pressure Test of Industrial Pipes, Pressure Vessels and Valves

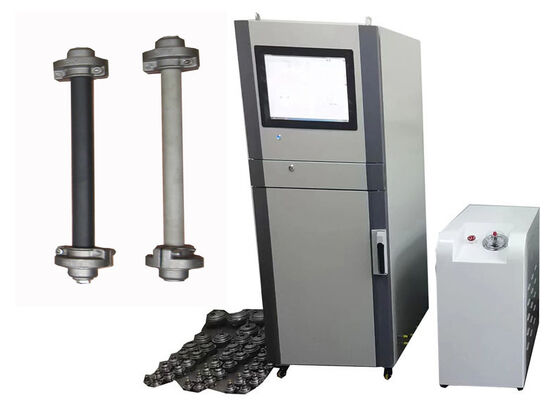

Large Image : Hydrostatic Pressure Testing Machine, Easy Operation Hydrostatic Tester for Pressure Test of Industrial Pipes, Pressure Vessels and Valves

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine, Easy Operation Hydrostatic Tester For Pressure Test Of Industrial Pipes, Pressure Vessels And Valves	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for industrial pipes , Easy Operation Hydrostatic Tester for valves , Hydrostatic Pressure Testing Machine for pressure vessels

Hydrostatic Pressure Testing Machine

Easy Operation Hydrostatic Tester for Pressure Test of Industrial Pipes, Pressure Vessels and Valves

Applications

This equipment is designed for plastic pipe manufacturing factories, quality control laboratories, R&D facilities, and construction/installation sites.

Custom-engineered for plastic pipe assessment
Fully compatible with PPR, PE, PVC, PB and PERT pipe specimens
Accommodates pipe diameters from Φ10-1600mm
Broad adaptability across diverse testing scenarios

Product Description

Built to evaluate various pipes and pipe fittings, this hydrostatic pressure and bursting testing machine supports specimens made from PP, PE, PVC, PPR, PB and PERT materials.

Constructed to endure elevated pressure and thermal conditions
Ideal for assessing pipe components in high-pressure and high-temperature service environments
Engineered for straightforward operation and low upkeep
Intuitive control interfaces for simple handling
Integrated safety protections including automatic shutdown and emergency stop functions
Generates pressure-time and pressure-temperature test curves
Complies with global specifications: ISO1167, ISO9080, EN921, ASTM D1598, ASTM D1599 and ISO13479

Technical Parameters

Model	XGY-10C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Test pressure range	0.1-10MPa
Control accuracy	±1%
Display resolution	0.01MPa
Timer range	0~10000h
Timer accuracy	±0.1%
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ16 to 630mm
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Support and Services

We deliver comprehensive technical assistance for Hydrostatic Pressure Testing Machines with our experienced technical specialists.

Equipment commissioning and installation
Fault diagnosis and professional technical consultation
Repair and routine maintenance services
Supply of spare components and consumable items
Software iteration and upgrade services

Frequently Asked Questions

What brand manufactures the Plastic Pipe Hydrostatic Pressure Testing Machine?

This Hydrostatic Pressure Testing Machine is branded JHH, with production based in Beijing, China.

What testing function does this Plastic Pipe Hydrostatic Pressure Testing Machine perform?

This tester is engineered to determine the hydrostatic strength and bursting resistance of plastic pipes.

What specimen categories and materials are compatible with the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine supports tests on plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other pipe varieties.

How high is the measurement precision of the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine achieves measurement precision of 0.1% full scale.

What is the upper pressure limit of the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine reaches a maximum test pressure of 10Mpa, equivalent to 100 bar (1450 psi).
