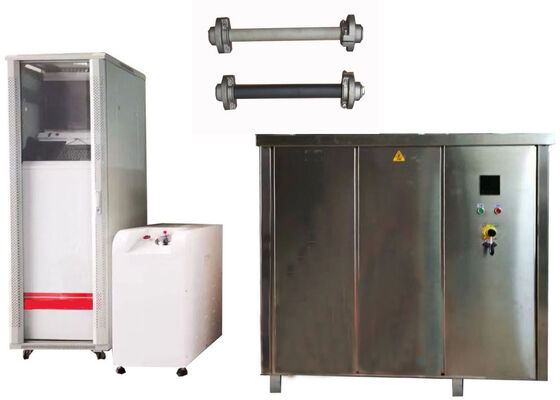

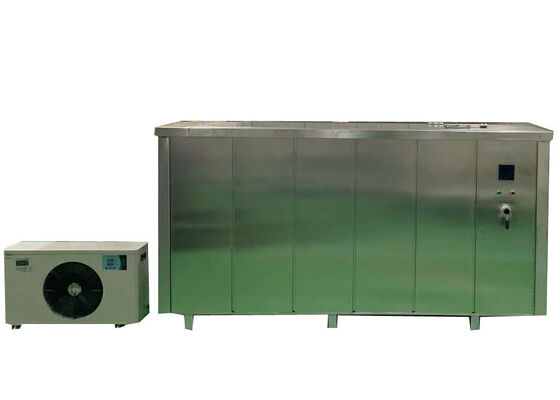

Plastic Pipe Hydrostatic Pressure Testing Machine for Hydrostatic Burst & Long-term Pressure Test of Thermoplastic Pipes

Large Image : Plastic Pipe Hydrostatic Pressure Testing Machine for Hydrostatic Burst & Long-term Pressure Test of Thermoplastic Pipes

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-630M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic Pipe Hydrostatic Pressure Testing Machine For Hydrostatic Burst & Long-term Pressure Test Of Thermoplastic Pipes	Pressure Unit:	Bar/psi/MPa
Test Mode:	Manual/Automatic	Testing Range:	0-100bar
Display:	LCD/LED	Test Type:	Constant Pressure And Bursting
Control Mode:	PLC/PC	Accuracy:	-1%~+2%
Highlight:	Plastic pipe hydrostatic pressure tester , Hydrostatic burst test machine for thermoplastic pipes , Long-term pressure testing machine for plastic pipes

Plastic Pipe Hydrostatic Pressure Testing Machine

Advanced testing equipment for hydrostatic burst and long-term pressure testing of thermoplastic pipes including PE, PVC, PPR, ABS, and steel skeleton plastic composite pipes.

Product Overview

This hydrostatic pressure testing machine delivers flexible and reliable testing performance for quality supervision and performance evaluation in the plastic pipe industry. It executes constant pressure tests and burst tests with precision and stability.

Key Features

Comprehensive analysis of pipe response under varied operating environments
Pressure-time and pressure-temperature test curve support
Assessment of pipe durability and long-term performance
0-100 bar pressure testing scope for diverse specifications
High measurement precision with accuracy within -1% to +2%
Includes matching end caps for secure specimen mounting
Tight sealing eliminates leakage risks

Technical Specifications

Test Mode	Manual/Automatic
Safety Protection	Over Pressure/Power-down Data Protection
Data Storage	Yes
Data Output	USB/RS232/RS485/Ethernet
Power Supply	AC220V/50Hz
Samples	PE, PVC, PPR, ABS, Steel Skeleton Plastic Composite Pipe
Accuracy	-1% to +2%
Control Mode	PLC/PC
Test Medium	Water

Applications & Performance

Manufactured in Beijing, China, the JHH Hydrostatic Pressure Testing Machine offers flexible adaptability for multiple working scenarios with robust hardware performance and comprehensive functionality.

Maximum pressure capacity: 10MPA (1000 PSI)
Compatible materials: PVC, PE, PPR, HDPE
Eco-friendly water test medium
Manual and automatic test modes
Operational temperature range: 15-95℃
PLC or PC control mode options
Standard AC220V/50Hz power supply

Frequently Asked Questions

Which brand produces the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine is branded JHH.

In which location is this Hydrostatic Pressure Testing Machine produced?

The Hydrostatic Pressure Testing Machine is fabricated in Beijing, China.

What maximum pressure rating can this Hydrostatic Pressure Testing Machine achieve?

The Hydrostatic Pressure Testing Machine features a maximum pressure capacity of 1000 PSI.

Is there a warranty package supplied together with the Hydrostatic Pressure Testing Machine?

Yes, the Hydrostatic Pressure Testing Machine is covered under a 12-month warranty.

Can the Hydrostatic Pressure Testing Machine handle pipe specimens with different dimensions?

Yes, the Hydrostatic Pressure Testing Machine supports testing on pipes of diverse sizes.
