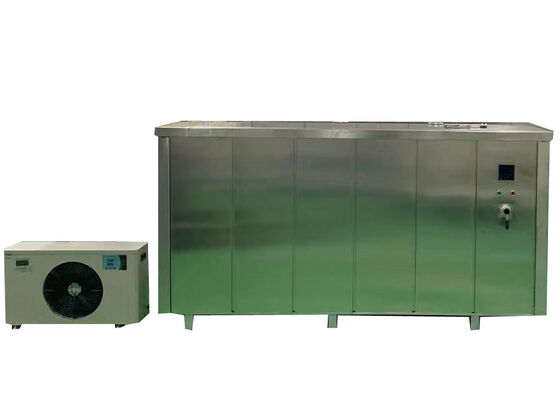

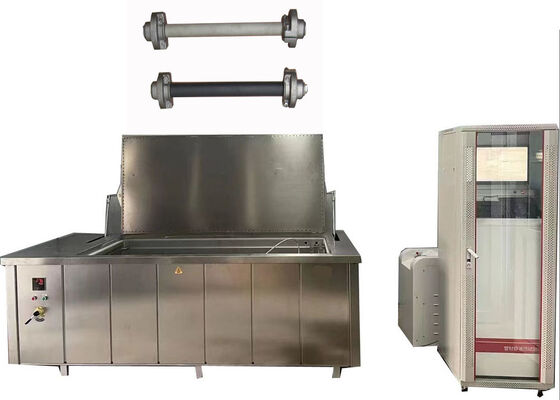

Hydrostatic Pressure Testing Machine for Plastic Pipes, Reliable Hydrostatic Burst Test Equipment to Detect Leakage and Structural Defects

Large Image : Hydrostatic Pressure Testing Machine for Plastic Pipes, Reliable Hydrostatic Burst Test Equipment to Detect Leakage and Structural Defects

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine For Plastic Pipes, Reliable Hydrostatic Burst Test Equipment To Detect Leakage And Structural Defects	Testing Range:	0-20MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for plastic pipes , Reliable hydrostatic burst test equipment , Leakage detection hydrostatic pressure machine

Hydrostatic Pressure Testing Machine for Plastic Pipes

Reliable hydrostatic burst test equipment designed to detect leakage and structural defects in plastic pipes with precision and accuracy.

Applications

The JINHAIHU Hydrostatic Pressure Testing Machine (Model XGY) delivers stable, high-efficiency performance for evaluating hydrostatic resistance and burst strength of plastic and composite pipes. This essential testing equipment serves manufacturers, quality inspection institutions, research laboratories, distributors, and construction enterprises.

Compatible with PP-R, PP-B, PP-A, PVC, PE, and PE-X pipes
Maximum test pressure: 10 MPa / 100 bar (1450 psi)
Measurement precision: 0.1% full scale
ISO9001 certified manufacturing quality
Temperature range: 10℃ to 95℃

Product Features

Equipped with configurable water tanks to match test pipe dimensions, this hydrostatic pressure testing machine provides precise pipe performance evaluation under demanding thermal conditions.

Generates pressure-time and pressure-temperature test curves
Complies with international standards: ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335
Ideal for small enterprises and large corporate groups
Precise measurement with stable test outputs

Technical Parameters

Parameter	Specification
Model	XGY-20C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Test Pressure Range	0.1-20MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Test Timer Range	0~10000h
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ16 to 630mm
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or custom

Support and Services

We provide comprehensive technical support for our Hydrostatic Pressure Testing Machines with our experienced service team.

Equipment installation & commissioning
Fault diagnosis and technical consultation
Repair and routine maintenance service
Supply of spare components and consumable parts
Software updates and version upgrades

Frequently Asked Questions

What brand supplies this Plastic Pipe Hydrostatic Pressure Testing Machine?

This Hydrostatic Pressure Testing Machine is branded JHH, manufactured in Beijing, China.

What testing tasks can the Plastic Pipe Hydrostatic Pressure Testing Machine perform?

This unit is engineered to evaluate the hydrostatic resistance and bursting strength of plastic pipes.

What specimen types are compatible with the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine accommodates plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other variants.

What measurement precision does the Hydrostatic Pressure Testing Machine achieve?

Its measuring accuracy reaches 0.1% of the full-scale value.

What is the maximum test pressure range of the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine supports test pressure up to 10 MPa, 100 bar (1450 psi).
