Drop Hammer Impact Tester
Professional drop hammer test equipment for material impact strength testing in laboratory environments, featuring extensive mass range and high impact energy capabilities.
Product Overview
This Drop Hammer Impact Tester offers a comprehensive drop hammer mass range from 0.5kg to 16kg to accommodate diverse testing requirements. The unit delivers maximum impact energy of 300J to ensure consistent, precise test outcomes throughout operation.
Multiple hammer head diameters including D25mm and D90mm enable the instrument to handle diverse specimens of varying geometries and material types. With maximum drop height of 2000mm, the system facilitates impact assessment for large-size samples and assemblies, making it ideal for aerospace and other industries requiring big component evaluation.
Applications
This Drop Hammer Test Equipment with 0-300J test range and D90mm hammer diameter is specially configured for PVC-O specimens. It performs impact assessments on non-metallic substances including plastics, glass, ceramics and more.
The instrument serves as an ideal testing unit to quantify material impact resistance and enables parallel impact trials on samples of identical material or specification, supporting comparative evaluation of material quality. The apparatus is compatible with both pass/fail testing method and gradient testing method.
Key Features
- Hammer Diameter: D25mm, D90mm and optional sizes
- Drop Hammer Mass: 0.5kg to 16kg
- Maximum Drop Height: 2000mm
- Compliant Standards: ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411 and other relevant standards
- Product Classification: Drop Hammer Test Equipment
Technical Specifications
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Diameter of the Sample |
Φ16mm-Φ630mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
715mm×700mm×3900mm |
| Net Weight |
380kg |
Support and Services
Full-spectrum technical backing and after-sales services are available for our Drop Hammer Test Equipment. Our professional engineering team delivers expert guidance covering machine installation, routine maintenance, fault diagnosis, instrument calibration and customized solutions tailored to your unique testing requirements.
We dedicate ourselves to delivering top-tier customer support with technical staff available around the clock to respond to inquiries and resolve any issues encountered.
Frequently Asked Questions
What constitutes Drop Hammer Test Equipment?
Drop Hammer Test Equipment is produced by JHH based in Beijing, China. It functions to quantify the impact resistance of test specimens.
What objectives does Drop Hammer Test Equipment achieve?
This equipment assesses the impact resistance of test articles, supporting quality verification for finished products.
What specimen types can be evaluated using Drop Hammer Test Equipment?
Applicable to a wide array of pipes including PVC-U water supply pipes, sewer pipes, low-pressure water delivery pipes, low-pressure transmission pipes, foamed core-layer pipes and double-wall corrugated pipes, as well as PE water supply pipes. It also accommodates rigid plastic sheet samples.
How precise is Drop Hammer Test Equipment?
Drop Hammer Test Equipment delivers measurement precision reaching 0.5%.
What is the maximum testing capacity of Drop Hammer Test Equipment?
The maximum test energy of Drop Hammer Test Equipment is rated at 300J.

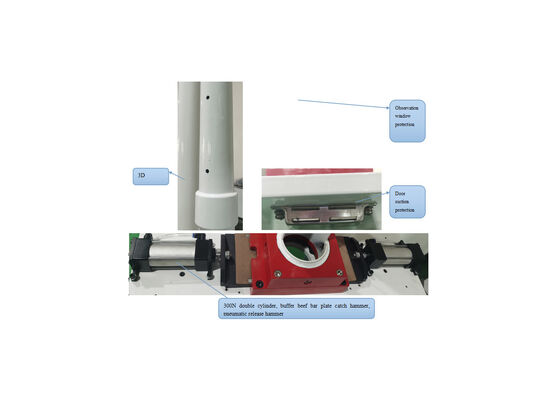

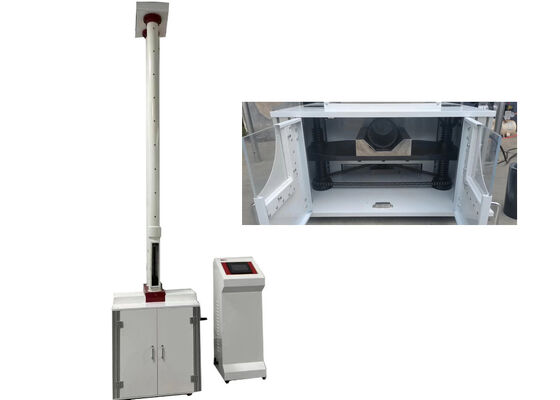

Product Images
