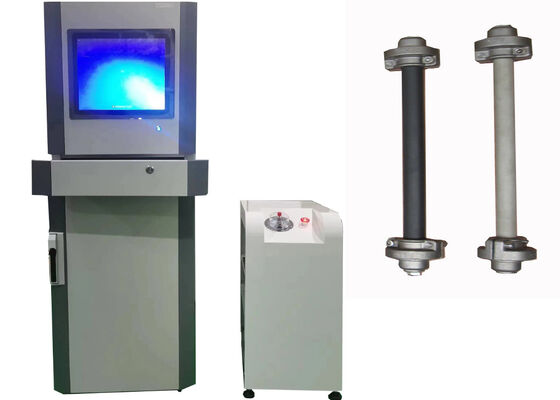

Plastic Pipe Hydrostatic Pressure Testing Machine
Professional burst and long-term pressure tester for water supply pipes and industrial pipelines, designed for comprehensive performance assessment of thermoplastic and composite piping systems.
Applications
This hydrostatic testing equipment is specifically designed for performance assessment of thermoplastic and composite piping specimens including PP-R, PP-B, PP-A, PE, PE-X, UPVC, CPVC, steel reinforced polyethylene, and aluminum-plastic composite pipes. The system quantifies time to rupture of pipe samples under steady internal pressure in isothermal conditions and captures peak pressure values during abrupt pipe burst events.
Widely adopted within the plastic pipe industry, this instrument serves as a standardized testing solution for pipe manufacturers and accredited inspection authorities to assess pressure endurance characteristics of piping products.
Product Description
Engineered to assess pipes and fittings including PP, PE, PVC, PPR, PB, and PERT, this hydrostatic pressure and burst tester is constructed to operate under high-pressure and elevated-temperature working conditions. The system is suited for performance evaluation of components deployed in demanding industrial and domestic service scenarios.
The equipment incorporates automatic cutoff and emergency stop features with operator safety as a core design consideration, mitigating risks throughout the entire test cycle. Utilizing state-of-the-art hardware, the system generates precise pressure-time and pressure-temperature curves to output trustworthy test data supporting technical assessment.
Fully conforming to international specifications including ISO1167, ISO9080, and ASTM standards, this tester is the preferred option for manufacturers and laboratories seeking accurate, standard-compliant test outcomes.
Product Characteristics
- Equipped with either touchscreen or PC-based operating terminal for comprehensive test parameter configuration
- Compact footprint below 1 m² supporting up to 50 independent pressure levels including pressurized water supply
- Intelligent specimen identification automatically recognizes pipe dimensions and material properties with optimized pressure ramp strategies
- High-precision pressure regulation with independently configurable inlet pressure for each module to minimize wear and extend service life
- All metallic parts exposed to test medium fabricated from premium stainless steel material
- Intuitive multi-language operator display accommodating diverse global client requirements
- In-test pressure calibration capability with continuous operation during calibration procedure (optional)
- Multi-layer protection mechanisms covering electrical hardware, mechanical assemblies, and embedded software
- Stable data communication through TCP/IP protocol for dependable data transmission
Technical Parameters
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Storage Mode |
PC storage |
| Print Mode |
Color printer output |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Working Range |
5%~100%FS |
| Indication Error |
±1% |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Timer Resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models |
from Φ16 to 630mm |

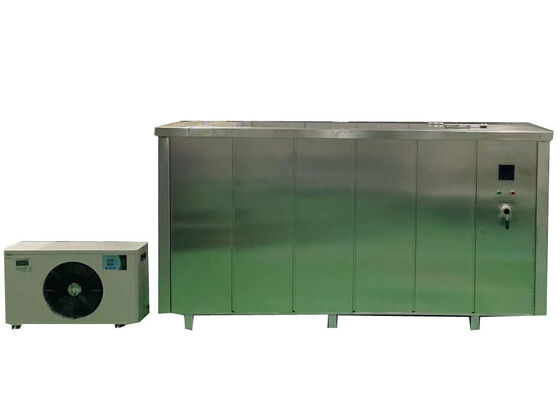

| Water Tank Size |
According to pipe size |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or customized |
Frequently Asked Questions
Q1: Could you tell us the brand of this Plastic Pipe Hydrostatic Pressure Testing Machine?
A1: This Hydrostatic Pressure Testing Machine is branded JHH, with manufacturing base located in Beijing, China.
Q2: What testing functions does this Plastic Pipe Hydrostatic Pressure Testing Machine perform?
A2: This equipment is engineered to evaluate hydrostatic resistance and burst strength of plastic pipes.
Q3: What kinds of specimens and materials are compatible with the Hydrostatic Pressure Testing Machine?
A3: The tester supports testing for plastic pipes and composite pipes, covering materials such as PP-R, PP-B, PP-A, PVC, PE, PE-X and more.
Q4: What is the measurement precision of the Hydrostatic Pressure Testing Machine?
A4: Its pressure measurement precision reaches 0.1% full scale.
Q5: What is the maximum test pressure range available for this Hydrostatic Pressure Testing Machine?
A5: This machine can deliver test pressure up to 10 MPa /100 bar (1450 psi).
