Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank

Large Image : Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XGY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine For Plastic Pipe, Fitted With Pressure Control Frame And Constant Temperature Tank	Max. Pressure:	0 - 10Mpa, 0~20Mpa
Test Specimen:	Plastic Pipes Like PVC, PE, PPR, ABS, Etc	Pressure Sensor:	England Barnes
Electromagnetic Valve:	Germany GER	Computer Controlled:	Yes
Display Accuracy Of The Pressure:	0.001Mpa	Timing Accuracy:	0.1%
Highlight:	Hydrostatic Pressure Testing Machine for Plastic Pipe , Hydrostatic Pressure Testing Machine with Pressure Control , Hydrostatic Pressure Testing Machine Constant Temperature

Hydrostatic Pressure Testing Machine for Plastic Pipe

Complete testing system fitted with pressure control frame and constant temperature tank for comprehensive plastic pipe evaluation.

Function & Applications

The 100 Bar Hydrostatic Pressure Testing Machine, also known as Plastic Pipe Hydrostatic Burst Tester, is engineered to perform instantaneous burst tests and long-duration hydrostatic pressure tests on fluid-carrying plastic pipes. This precision instrument measures failure time of thermoplastic pipes under sustained constant pressure. With superior accuracy, streamlined construction, stable performance, and user-friendly operation, this essential testing hardware serves pipe manufacturers, quality inspection authorities, and research institutions.

Technical Specifications

Test Stations	1-20 stations with independent pressure control; one station capable of burst testing
Maximum Pressure	0-10MPa, 0-20MPa
Constant Pressure Accuracy	-1%, +2%
Pressure Resolution	0.001MPa
Time Count Range	1-9999h 59min 59s
Constant Temperature Range	Ambient temperature to 95°C; 15°C to ambient with refrigeration system
Temperature Control Accuracy	Average temperature deviation ±0.5°C; maximum deviation ±1°C
Power Supply	380V AC 50HZ, 3 phase or 220V AC (customizable)
Pipe Sample Diameter Range	Φ8-2000mm (customizable)

Standard Accessories

Pressure control system (including pressure source, electromagnetic valves, pressure sensors, pressure accumulators), temperature control system, cycling pump, constant temperature tank, end closures, PC, printer, software, and manual.

System Configuration

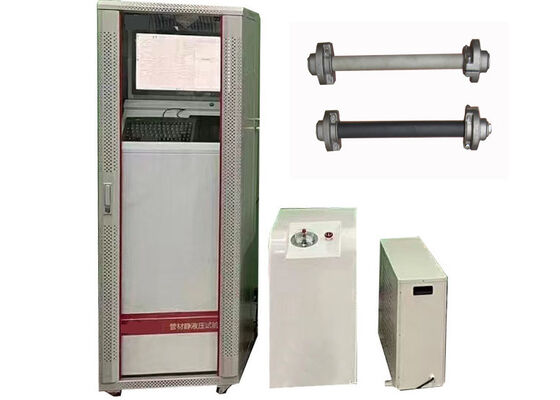

Pressure control system (main frame assembly)
Pressure supply system (pressure generation source)
Test vessel and temperature regulation system
End closures: φ20-110mm (customizable)
Refrigeration system (optional)

Key Features

Main Frame Features

Supports uninterrupted continuous operation for complete test procedure integrity
Independent branch stations for straightforward operation and maintenance
Core components use imported European and American parts for stable performance
Configured with branded computer connected via serial ports
Generates pressure-time curves throughout testing
Real-time pressure value monitoring during operation
Hard-copy printing of complete test reports
Autonomous operation even during computer shutdown
Pre-installed hydrostatic pressure testing software with lifetime free upgrades

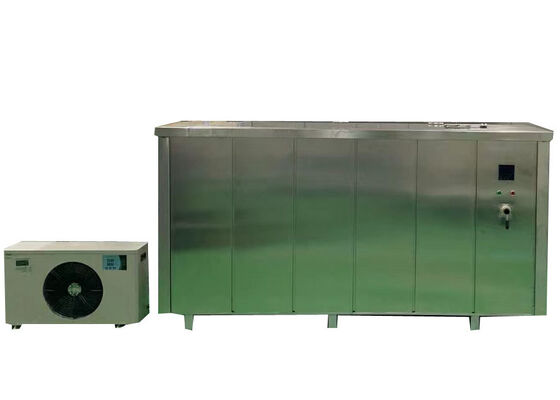

Constant Temperature Tank Features

Tank assembly includes structural frame, base plate, 304 stainless steel inner liner, and stainless steel/aluminum alloy cladding
Rigid polyurethane foam insulation for stable temperature performance and energy conservation
Optional automatic lifting and closing mechanism for tank lid

End Cap Specifications

Construction Material: 304 Stainless Steel or Carbon Steel
Precision casting process for refined finish
Complete assembly including bolts, O-rings, vent valves, and accessories
Simple installation, zero leakage, and user-friendly operation

Refrigeration System

Temperature Range: -20 to 40°C | Power Supply: Single-phase 220V, 2.2KW Rated Power
