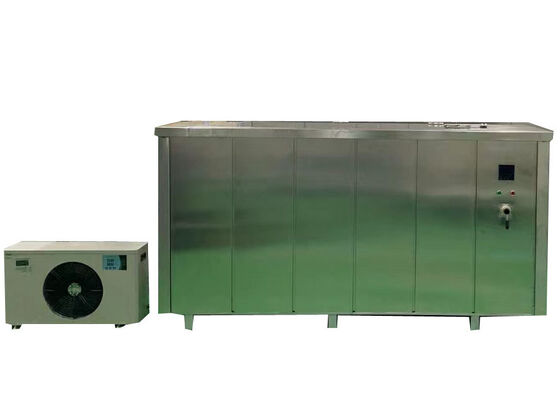

Plastic Pipe Hydrostatic Pressure & Burst Testing Machine
Certified for PP-R, PE, PVC, and composite pipes according to ISO1167 and ASTM D1598 standards.
Product Overview
The Model XGY-10C Hydrostatic Pressure Testing Machine features an LCD display module for real-time pressure monitoring during test execution. With pressure measurement accuracy of -1% to +2%, this equipment delivers stable and reliable readings to ensure high test precision and repeatable experimental results.
This tester accommodates specimens with end caps within the dimensional range of Φ8-1800 mm, providing broad adaptability to fulfill diverse pipe pressure assessment requirements. Engineered for robust performance and extended service life, this testing apparatus serves as a dependable solution for routine hydrostatic pressure inspection operations.
Compliance Standards
This testing instrument complies with the following international and domestic industry standards:
- ISO1167-2006
- ASTM D1598-2004
- ASTM D1599
- ISO9080
- CJ/T108
- ASTM F1335
Technical Specifications
| Parameter |
Specification |
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Storage Mode |
PC storage |
| Print Mode |
Color printer output |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.001MPa |
| Working Range |
5%~100%FS |
| Indication Error |
±1% |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Timer Resolution |
1s |
| Power Supply |
380V 50Hz three-phase four-wire 1.2KW |

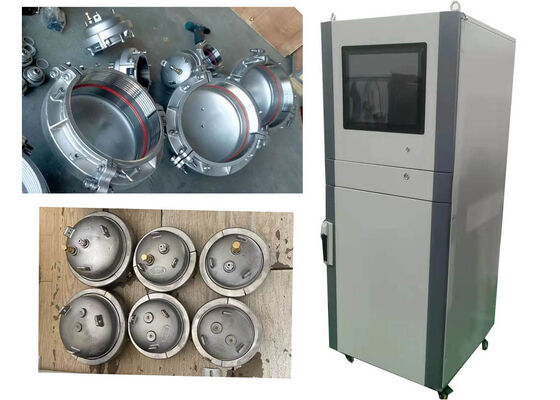

| End Caps Models |
Φ16 to 1600mm |
| Water Tank Size |
According to pipe size |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
710×620×1710(mm) or custom |
Support and Services
The Hydrostatic Pressure Testing Machine is engineered to evaluate the pressure-bearing capacity of pipes, valves, hoses, and other components operated under high-pressure working conditions.
Our professional technical support team is available to resolve inquiries and operational problems during equipment utilization. We provide comprehensive services including on-site installation & commissioning, fault diagnosis, maintenance & overhaul, and operator training sessions.
We aim to maintain optimal operational status of your testing apparatus and guarantee precise, credible test data. Contact us for further details regarding our after-sales support packages.
Frequently Asked Questions
What brand supplies this Plastic Pipe Hydrostatic Pressure Testing Machine?
This Hydrostatic Pressure Testing Machine is branded JHH, manufactured in Beijing, China.
What testing functions does this Plastic Pipe Hydrostatic Pressure Testing Machine perform?
It conducts assessments on hydrostatic resistance and bursting strength of plastic pipes.
What test specimens are compatible with this Hydrostatic Pressure Testing Machine?
This tester supports inspections on plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and more.
Regarding measurement precision, what specification does this Hydrostatic Pressure Testing Machine achieve?
Its measurement precision reaches 0.1% full scale.
What peak pressure value can this Hydrostatic Pressure Testing Machine reach during tests?
The machine's maximum test pressure is 10 MPa, equivalent to 100 bar (1450 psi).
