Plastic Pipe Hydrostatic Burst Pressure Testing Machine
Computer controlled pressure test equipment for comprehensive hydrostatic and burst testing of plastic pipes.
Applications

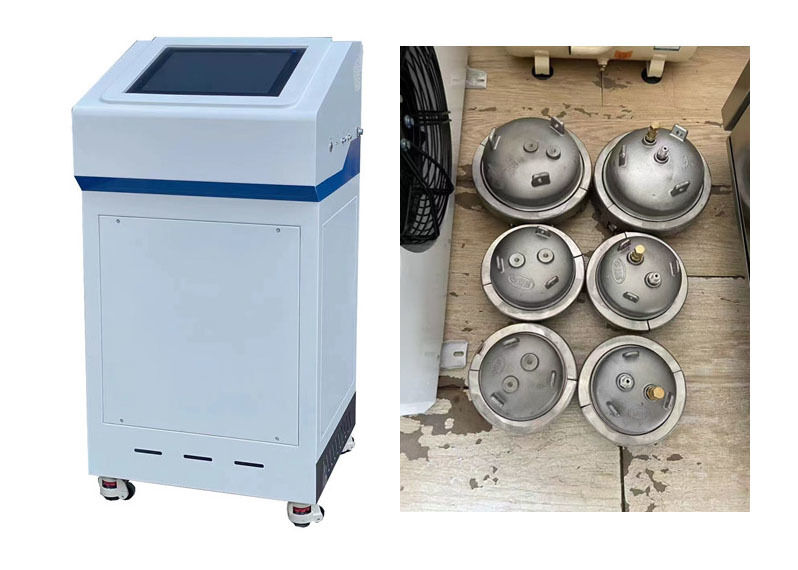

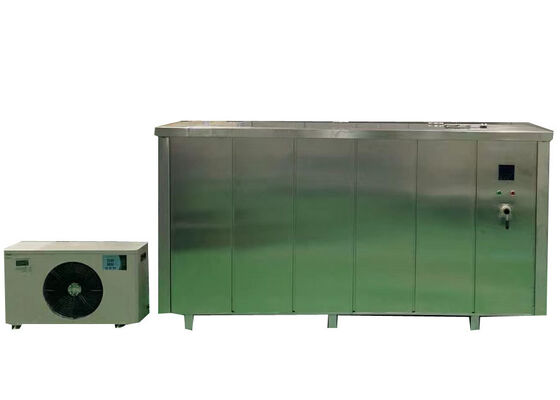

This hydrostatic and burst testing machine performs instantaneous burst assessment and prolonged pressure endurance tests on fluid-carrying plastic pipes. The system enables measurement of failure duration for thermoplastic pipes under sustained internal pressure and consists of a pressure control main unit, constant temperature bath, and end closures.
Featuring superior measuring accuracy, streamlined appearance, compact mechanical layout, reliable stability, and user-friendly operation, this equipment serves as essential test apparatus for pipe producers, quality inspection authorities, and research institutions.
Product Description
Our hydrostatic pressure testing machine operates based on advanced working principles: operators input parameters including ring stress, wall thickness, and pipe average outer diameter via PC software, and the system automatically computes the target test pressure. The calculated data is delivered to the slave computer (MCU embedded system) over RS232 serial interface to carry out high-accuracy pressure tests and deliver repeatable, dependable test outcomes.
The tester supports generation of pressure-time and pressure-temperature test curves to facilitate real-time tracking of test status. It offers a pressure spectrum up to 160Bar (16MPa), accommodating diverse testing scenarios. The adjustable test temperature ranging from 10℃ to 95℃ enables evaluation of specimens designed to operate under severe thermal conditions.
Categorized as hydrostatic pressure testing machine, this apparatus acts as indispensable test hardware across multiple sectors demanding credible pressure verification, covering plumbing, oil & gas, chemical processing, and general manufacturing industries. Featuring intuitive human-machine interaction and precise computational logic, this hydrostatic tester is vital for enterprises to validate product safety and quality compliance.
Compliance Standards
This testing equipment complies with the following international and industrial specifications: ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters
| Model |
XGY-16C |
| Diameter range |
Φ16-630mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable) |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC storage |
| Print mode |
Color printer output |
| Test pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End caps models |
from Φ16 to 630mm |
| Water tank size |
According to pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or others |
Support and Services
We deliver comprehensive technical service solutions for hydrostatic pressure testing equipment. Our seasoned technical specialists are ready to offer the following services:
- Equipment commissioning and on-site installation
- Fault diagnosis and professional technical consultation
- Overhaul and routine maintenance services
- Supply of spare components and test consumables
- Software version updates and function upgrading
We maintain focus on premium customer service and stand ready to resolve all your technical inquiries. Feel free to reach out to our team whenever you have questions.
Frequently Asked Questions
Q1: Could you tell us the brand of this Plastic Pipe Hydrostatic Pressure Testing Machine?
A1: This hydrostatic pressure tester is branded JHH, and it is fabricated in Beijing, China.
Q2: What testing functions can this Plastic Pipe Hydrostatic Pressure Testing Machine perform?
A2: This equipment is engineered to assess the hydrostatic resistance and bursting strength of plastic pipelines.
Q3: What specimens and pipe materials are compatible with this Hydrostatic Pressure Testing Machine?
A3: It supports tests for plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar pipe products.
Q4: How about the measurement precision of this Hydrostatic Pressure Testing Machine?
A4: Its measuring precision reaches 0.1% of the full scale.
Q5: What is the upper pressure limit of this Hydrostatic Pressure Testing Machine?
A5: The maximum test pressure of this tester is 10MPa, equivalent to 100 bar (1450 psi).
