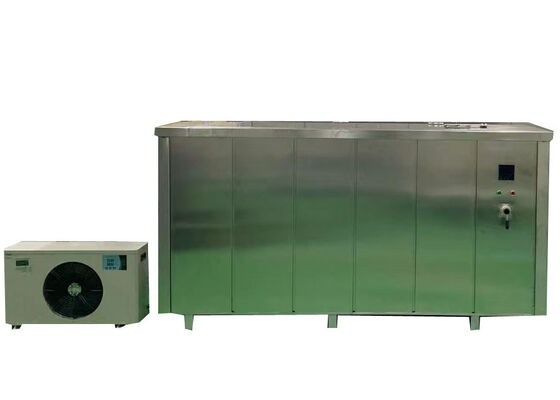

Multi-station Hydrostatic Pressure Testing Machine for Plastic & Composite Pipes, Constant Pressure and Burst Test Equipment

Large Image : Multi-station Hydrostatic Pressure Testing Machine for Plastic & Composite Pipes, Constant Pressure and Burst Test Equipment

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Multi-station Hydrostatic Pressure Testing Machine For Plastic & Composite Pipes, Constant Pressure And Burst Test Equipment	Max.pressure:	10, 16, 20MPA
Accuracy:	-1%~+2%	Pressure Unit:	BAR/PSI/MPA
Safety Protection:	Over Pressure/Power Failure Data Protection	Test Type:	Constant Pressure And Bursting
Test Medium:	Water	Test Mode:	Manual/Automatic
Power Supply:	AC220V/50Hz
Highlight:	Hydrostatic pressure testing machine for plastic pipes , Composite pipe burst test equipment , Multi-station constant pressure testing machine

Multi-station Hydrostatic Pressure Testing Machine

Professional testing equipment for plastic and composite pipes, designed for constant pressure and burst testing applications.

Product Overview

This hydrostatic pressure testing machine evaluates the pressure withstand performance of end caps, flanges, and pipes. With a peak pressure of 10MPa within a 0-100bar testing scope, it features LCD/LED displays for intuitive data viewing and utilizes PLC and PC control schemes for superior test precision.

Key Features

Computerized control with pressure-time and pressure-temperature test curve generation
Measurable pressure scope of 0-100 bar
LCD/LED display for real-time data visualization
Multiple data output interfaces including USB, RS232, RS485 and Ethernet
Water-based testing medium for all procedures
Test temperature range from 15℃ to 95℃
Selectable pressure units: Bar, psi, and MPa

Applications

Ideal for pressure assessment and leak detection on pipelines, valves, and fittings in water, oil & gas, and related sectors. Also conducts pressure verification for water heaters, pressure vessels, and diverse pressure-bearing components.

Technical Specifications

Parameter	Details
Power Supply	AC220V/50Hz
Testing Range	0-100bar
Test Mode	Manual/Automatic
Test Type	Constant Pressure and Bursting
Test Medium	Water
Display	LCD/LED
Test Temperature Range	15~95℃
Accuracy	-1%~+2%
Data Output	USB/RS232/RS485/Ethernet
Max. Pressure	10MPA
Standards Compliance	ISO 1167, ASTM D1598, ASTM D1599, ASTM D2240

Customization Options

The JHH Hydrostatic Pressure Testing Machine supports custom configurable testing workflows to accommodate varied test demands, with support for pressure-time and pressure-temperature test curve generation.

Frequently Asked Questions

Which brand manufactures the Hydrostatic Pressure Testing Machine?

This testing instrument is branded JHH.

Where is the Hydrostatic Pressure Testing Machine produced?

The equipment originates from Beijing, China.

What are the core operational steps?

Operational workflow covers equipment assembly and connection, parameter configuration, system startup, test sequence execution, and final machine shutdown.

What key performance characteristics does it possess?

High measurement precision, rapid response, robust anti-interference capability, and outstanding operational stability.

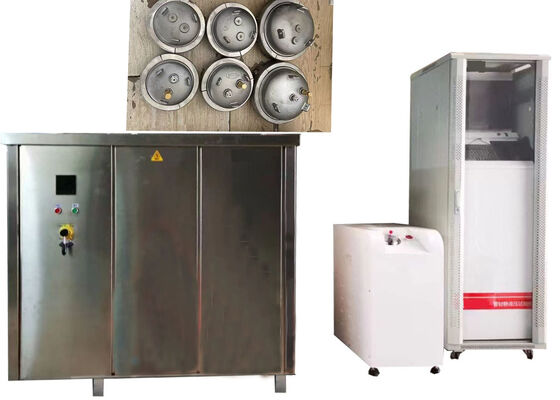

Product Gallery
