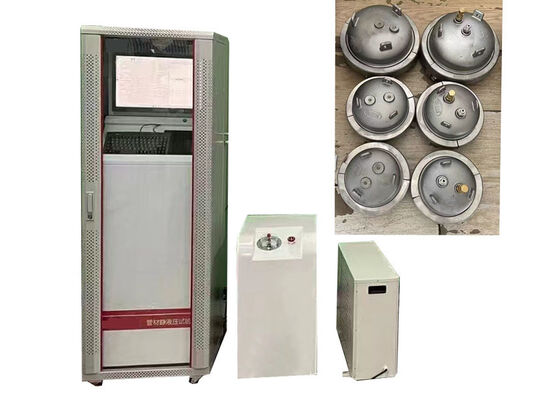

Hydrostatic Pressure Testing Machine
Multi-station Plastic Pipe Burst & Creep Tester for PE Pipes, PP-R Pipes and Composite Pipeline Pressure Resistance Test
Product Applications
This PVC Plastic Pipe Hydrostatic Burst Pressure Testing Machine complies with ASTM D1598 for plastic pipe hydrostatic pressure assessment. It serves to measure the failure duration under sustained internal pressure at stable temperature, as well as the peak instantaneous burst pressure of thermoplastic pipes and composite pipelines.
Applicable specimens cover PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C and aluminium-plastic composite pipes. It constitutes essential test apparatus for plastic pipe producers and professional testing laboratories.
Key Features
- Optimized mechanical framework driving an air-free hydraulic system using water as the test medium for dependable and secure operation
- Imported solenoid valves featuring superior operational reliability
- High-pressure pump assembly with imported Model 2525 triple-plunger pump head rated for 25MPa working pressure
- Independent test channels allowing simultaneous testing of pipes with varied specifications, types and raw materials
- Power-loss protection capability preserving test data during unexpected power interruptions
Compliance Standards
This testing apparatus meets the requirements of international standards including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 and ISO13479.
Operating Principle
Operators input pipe core parameters including ring stress, wall thickness and average outer diameter via the PC terminal. The system automatically calculates the corresponding test pressure and transmits data to the embedded MCU system through RS232 serial interface for autonomous constant pressure control.

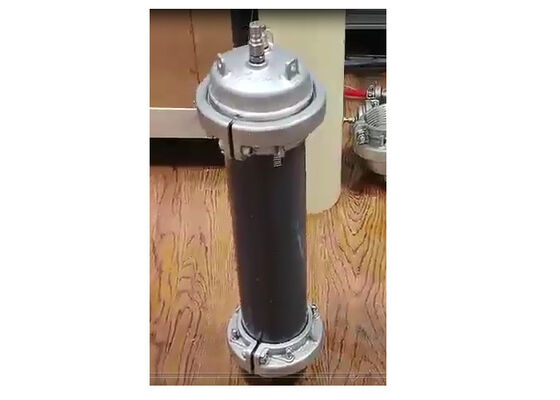

A high-pressure liquid pressure source is provided by the high-pressure pump unit. After precise regulation by the professional pressure control system, the high-pressure medium is delivered through high-pressure hoses to test specimens placed inside the medium incubator to complete long-term hydrostatic endurance tests and instantaneous pipe burst tests.
Technical Specifications
| Model |
XGY-16C |
| Diameter Range |
Φ10-1600mm |
| Stations |
5, 6, 12, 15, 18, 20, 25, 50 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Test Pressure Range |
0.2-16MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.001MPa |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Power |
380V 50Hz three-phase four-wire 1.1KW |
| End Caps Models |
from Φ8 to 1600mm |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
720×620×1720(mm) or custom |
Frequently Asked Questions
Which brand produces the Plastic Pipe Hydrostatic Pressure Testing Machine?
This Plastic Pipe Hydrostatic Pressure Testing Machine is branded JHH, with professional production and assembly based in Beijing, China.
What testing applications does this Hydrostatic Pressure Testing Machine cover?
This professional testing equipment is designed to verify the hydrostatic resistance performance and burst strength performance of various plastic pipeline products.
What kinds of pipe materials are compatible with this Hydrostatic Pressure Testing Machine?
This testing device is applicable for inspection of plastic pipes and composite pipes, covering mainstream types including PP-R, PP-B, PP-A, PVC, PE and PE-X.
What level of precision does this Hydrostatic Pressure Testing Machine achieve in testing?
The equipment delivers highly precise detection results, with its measurement error controlled within 0.1% full scale.
What is the upper pressure limit of this Hydrostatic Pressure Testing Machine?
The maximum measurable pressure of the testing machine reaches 10Mpa, equivalent to 100 bar (1450 psi).
