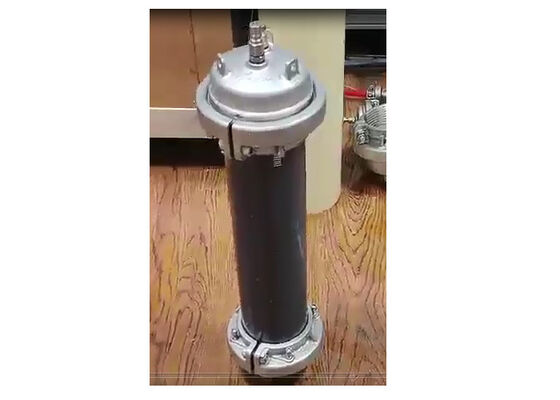

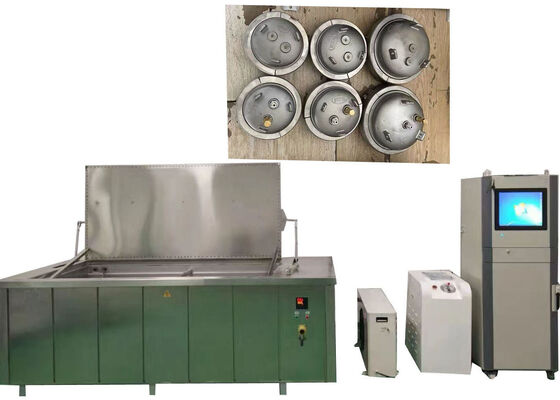

ISO 1167 Plastic Pipe Hydrostatic Pressure Tester for Constant Pressure & Burst Test, Equipped with Test End Caps

Large Image : ISO 1167 Plastic Pipe Hydrostatic Pressure Tester for Constant Pressure & Burst Test, Equipped with Test End Caps

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	ISO 1167 Plastic Pipe Hydrostatic Pressure Tester For Constant Pressure & Burst Test, Equipped With Test End Caps	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	ISO 1167 plastic pipe hydrostatic pressure tester , plastic pipe burst test machine , hydrostatic pressure tester with end caps

ISO 1167 Plastic Pipe Hydrostatic Pressure Tester

Professional testing instrument for constant pressure and burst testing of thermoplastic and composite pipes, equipped with test end caps for comprehensive performance evaluation.

Purpose and Applications

Designed specifically for thermoplastic pipes and composite pipes, this hydrostatic pressure testing instrument evaluates long-term safety performance and pressure endurance under constant internal pressure and steady temperature conditions. It measures two critical performance indicators:

Time to Failure: Duration pipe samples sustain constant pressure until failure occurs
Peak Instantaneous Burst Pressure: Maximum pressure recorded immediately before pipe rupture

Key Features

Intuitive Operation Interface: Touch screen and computer terminal for convenient test parameter configuration
Space-saving Multi-channel Design: Occupies less than 1m² floor area with up to 50 selectable pressure grades
Automatic Sample Identification: Recognizes pipe dimensions and material types (PP-R, PE) for optimized test conditions
Advanced Pressure Regulation: Intelligent algorithms generate customized pressure curves including stepwise pressure rise
Independent Channel Control: Separate pressure configuration for each test channel (0.1-200 bar range)
Durable Hardware Assembly: Minimized solenoid valve abrasion for reduced maintenance and 24/7 operation
Corrosion-resistant Construction: All wetted components fabricated from premium stainless steel
Multi-language Interface: Supports English and Chinese for global operator convenience
Dynamic In-situ Calibration: Pressure calibration during ongoing tests without interruption
Comprehensive Safety Protection: Electrical, mechanical and program-based protection mechanisms
Convenient Data Transmission: Real-time data transfer to local PCs or cloud servers via TCP/IP protocol

Compliance Standards

Fully compliant with international and industry specifications including ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108 and ASTMF1335 standards.

Specimen Free Length Requirements

Specimen Type	Free Length Requirements
Extruded Pipe Specimens	d_n < 315mm: ≥ 3d_n and ≥ 250mm; d_n > 315mm: ≥ 2d_n
Injection-molded Pipe Specimens	d_n < 50mm: 3d_n; 50mm ≤ d_n ≤ 110mm: ≥ 140mm
Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections)	≥ 3d_n and ≥ 250mm (d_n > 315mm: ≥ 2d_n if minimum length not met)
Assembled Specimens with Hydrostatic Thrust (with Fittings)	≥ 2d_n and ≥ 150mm; d_n > 250mm: ≥ 1.5d_n
Assembled Specimens with Hydrostatic Thrust (Saddle Branch)	≥ 100mm
Assembled Specimens without Hydrostatic Thrust	= d_n and ≥ 150mm

Technical Specifications

Parameter	Specification
Model	XGY-10C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	0.1-10MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~10000h
Timer Accuracy	±0.1%
Timer Resolution	1s
Power Supply	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ8 to 1800mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Customer Support and Services

We adhere to customer-oriented service principles to deliver high-quality, efficient after-sales support. Our technical team is available to respond to consultations and resolve equipment-related issues promptly.

Frequently Asked Questions

What is the brand of this Plastic Pipe Hydrostatic Pressure Testing Machine?

This series of Hydrostatic Pressure Testing Machine adopts the JHH brand and is professionally produced in Beijing, China.

What testing functions does this equipment achieve?

The equipment evaluates hydrostatic resistance performance and burst strength of various plastic pipes under preset pressure conditions.

What pipe materials are applicable for this testing equipment?

Applicable for plastic pipes and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and other common pipe materials.

What is the measurement precision of the equipment?

The instrument features high detection accuracy with full-scale measurement error controlled within 0.1%.

What is the maximum testing pressure range supported?

Supports maximum testing pressure of 10MPa, equivalent to 100 bar (1450 psi).
