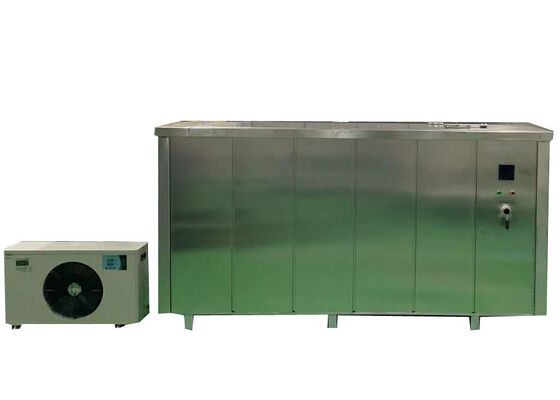

Multi-station Hydrostatic Pressure Testing Machine with Microcomputer Control for Plastic Pipe Constant Internal Pressure and Burst Performance Test

Large Image : Multi-station Hydrostatic Pressure Testing Machine with Microcomputer Control for Plastic Pipe Constant Internal Pressure and Burst Performance Test

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Multi-station Hydrostatic Pressure Testing Machine With Microcomputer Control For Plastic Pipe Constant Internal Pressure And Burst Performance Test	Place Of Origin:	Beijing, China
Model:	XGY-10C	Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR
Pressure Resolution:	0.01MPA, 0.1BAR	Test Stations:	5, 10, 15, 20, 25, 30, 50 Can Customized
Temp. Range:	15-95 ℃	Constant Pressure Accuracy:	-1%~+2%
Material Of Water Tank:	304# Stainless Steel	Material Of End Caps:	304# Stainless Steel Or Carbon Steel
Power:	AC380V ±10% ,50/60Hz	Standards:	ISO 1167, ASTM D1598/1599
Highlight:	Microcomputer control hydrostatic pressure testing machine , Plastic pipe burst performance tester , Multi-station constant internal pressure tester

Multi-station Hydrostatic Pressure Testing Machine

Microcomputer-controlled system for plastic pipe constant internal pressure and burst performance testing

Product Overview

This hydrostatic pressure tester for PVC pipes features streamlined exterior design, simplified mechanical construction, outstanding measuring precision, and stable performance. With user-friendly operation, it serves as essential testing equipment for quality control laboratories, research institutions, and plastic pipe manufacturers.

System Features

Industrial tablet control for direct onsite operation
Multiple channels with precision pressure control units
Independent station control without mutual interference
Configurable stations: 5, 10, 15, 20 (expandable to 60+)
Supports hydrostatic test and bursting test modes
Maximum pressure options: 3, 6, 10, 20MPa and higher
Pipe diameter range: Φ16 ~ 2000mm (customizable)
Dedicated microcomputer per station with offline operation capability
Real-time visualization of pressure, elapsed time, and operating status
Power protection, report saving, and print output capabilities
Multi-language software interface for global users

Compliance Standards

ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479

Technical Parameters

Parameter	Specification
Model	XGY-10C
Maximum Pressure	16MPa
Test Stations	6 stations
Control Mode	Computer control
Data Preservation	Power-off data protection with automatic restoration
Timing Range	0~9999 hours 59 minutes
Timing Accuracy	±0.1%
Time Resolution	1 second
Pressure Control Range	0.2~10MPa
Pressure Control Accuracy	-1%~ +2%
Constant Voltage Control Precision	Within ±1%
Pressure Display Resolution	0.001MPa, 0.01bar or 1PSI
Temperature Control Range	15-95℃ (with refrigeration system)
Temperature Control Accuracy	±0.5℃

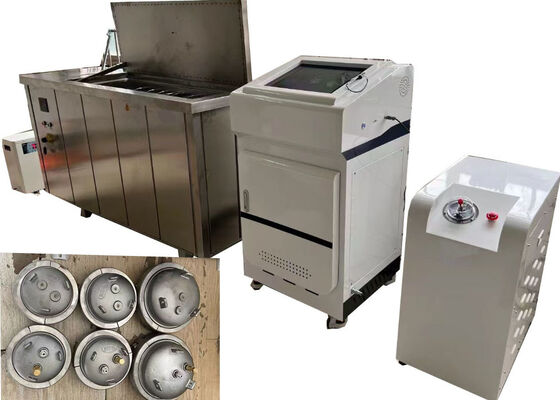

Standard Configuration

Pressure control main controller
Pressure testing station assembly
Pipe end closure fixtures
Constant-temperature water reservoir
Circulating cooling module

Product Images
