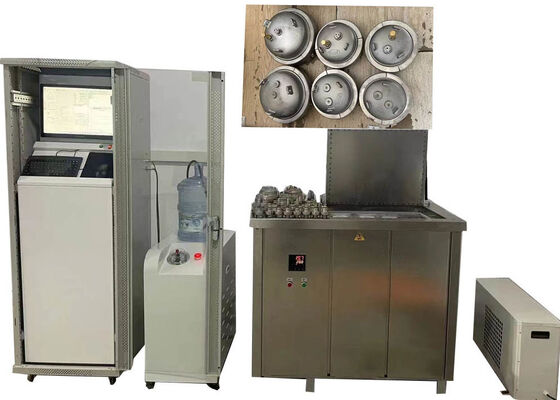

ISO 1167 Plastic Pipe Hydrostatic Pressure Testing Machine, Industrial Tablet Control Multi-Channel Tester for Hydrostatic & Burst Test

Large Image : ISO 1167 Plastic Pipe Hydrostatic Pressure Testing Machine, Industrial Tablet Control Multi-Channel Tester for Hydrostatic & Burst Test

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	ISO 1167 Plastic Pipe Hydrostatic Pressure Testing Machine, Industrial Tablet Control Multi-Channel Tester For Hydrostatic & Burst Test	Place Of Origin:	Beijing, China
Model:	XGY-10C	Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR
Pressure Resolution:	0.01MPA, 0.1BAR	Test Stations:	5, 10, 15, 20, 25, 30, 50 Can Customized
Temp. Range:	15-95 ℃	Constant Pressure Accuracy:	-1%~+2%
Material Of Water Tank:	304# Stainless Steel	Material Of End Caps:	304# Stainless Steel Or Carbon Steel
Power:	AC380V ±10% ,50/60Hz	Standards:	ISO 1167, ASTM D1598/1599
Highlight:	ISO 1167 plastic pipe hydrostatic tester , industrial tablet control hydrostatic pressure machine , multi-channel hydrostatic burst test machine

ISO 1167 Plastic Pipe Hydrostatic Pressure Testing Machine

Industrial Tablet Control Multi-Channel Tester for Hydrostatic & Burst Test

Application

This ASTM-compliant hydrostatic pressure tester evaluates plastic piping performance by measuring time to failure under sustained internal pressure loading and assessing short-term hydrostatic pressure resistance of plastic pipe specimens.

System Features

Industrial tablet for direct operation and equipment management
Precision pressure control modules for multi-channel combined testing
Independent control for each test station without signal interference
Multiple station configurations available (5, 10, 15, 20 stations) with expandability to 60+ stations
Supports both hydrostatic test and burst test operations
Optional maximum pressure specifications: 3MPa, 6MPa, 10MPa, 20MPa and custom options
Pipe diameter coverage from Φ16 to 2000mm with custom solutions available
Individual microcontroller for each station with separate parameter configuration
Real-time display of pressure values, elapsed time, and working status
Comprehensive status monitoring including pressure rise, compensation, relief, overpressure, running, completion, leakage, and burst
Built-in power protection, test report archiving, and print output functions
Automatic distinction between effective and invalid test duration
Power-off retention function for uninterrupted testing integrity
Multi-language software interfaces for international users

Compliance Standards

This pipe hydrostatic test instrument complies with global and domestic specifications including ASTM D1598, ASTM D1599, ASTM F1335, ISO 1167, ISO 9080, ISO 1756, ISO 13477, GB/T 15560, GB/T 18252, GB/T 6111 and CJ/T 108.

Contact our team for information about additional applicable standards.

Technical Specifications

Parameter	Specification
Pipe Diameter Range	Φ8~Φ1600mm
Working Stations	3, 6, 10, 15, 20, 25 (customizable)
Operation Mode	PC Control
Pressure Range	0.2~10MPa (customizable)
Pressure Resolution	0.001MPa, 0.01Bar
Pressure Control Accuracy	-1%~+2%
Measuring Range	5%~100% F.S.
Timing Range	1s~9999H 99M 99S
Timing Accuracy	±0.1%
Display Resolution	1s
Minimum Time Setting Unit	min
Temperature Control System	15~95℃ with cooling system
Temperature Control Accuracy	±0.5℃
Power Supply	380V, three-phase four-wire system

Standard Configuration

Pressure control main unit
Pressure test station assembly

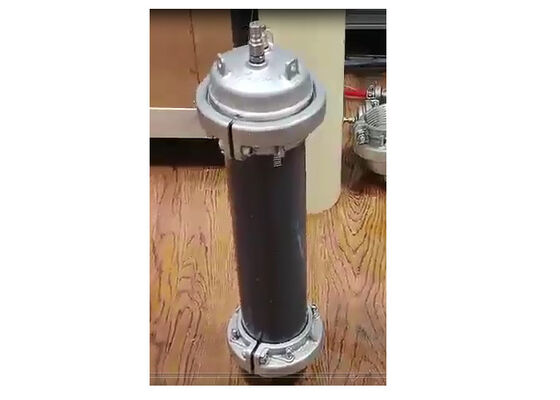

End closure fittings
Water bath tank
Cooling circulation system

Product Images
