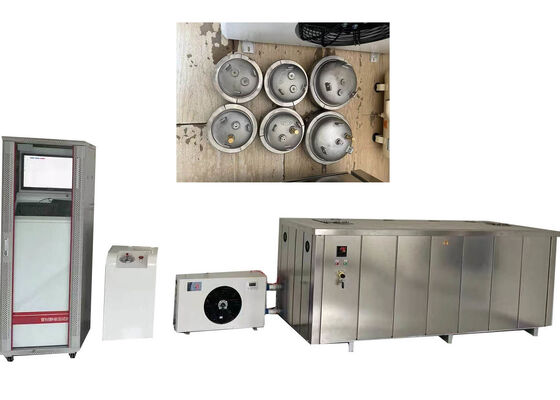

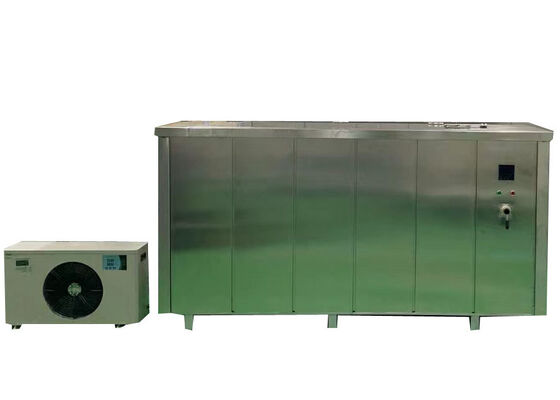

Hydrostatic Pressure Testing Machine for Plastic Pipes, Valves & Cylinders, Burst and Constant Pressure Test Equipment

Hydrostatic Pressure Testing Machine for Plastic Pipes, Valves & Cylinders, Burst and Constant Pressure Test Equipment
Hydrostatic Pressure Testing Machine for Plastic Pipes, Valves & Cylinders, Burst and Constant Pressure Test Equipment
video play

Large Image :  Hydrostatic Pressure Testing Machine for Plastic Pipes, Valves & Cylinders, Burst and Constant Pressure Test Equipment

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-10C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7 -15 days
Payment Terms: T/T,L/C,D/A,D/P
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Hydrostatic Pressure Testing Machine For Plastic Pipes, Valves & Cylinders, Burst And Constant Pressure Test Equipment Max. Pressure: 10MPA, 100BAR
Test Curve: Pressure-time And Pressure-temperature Samples: PE、PVC、PPR、ABS、Steel Skeleton Plastic Composite Pipe
Test Temperature Range: 15~95℃ Test Medium: Water
Test Type: Constant Pressure And Bursting Pressure Unit: BAR/PSI/MPA
Highlight:

Hydrostatic Pressure Testing Machine for plastic pipes

,

Burst pressure test equipment for valves

,

Constant pressure test machine for cylinders

Hydrostatic Pressure Testing Machine
Professional test apparatus for evaluating pressure resistance properties of PVC, PE, PPR, HDPE pipes and related fittings. Features integrated pressure module with multiple unit readings, data archiving, and real-time test curve visualization.
Key Specifications
Product NameHydrostatic Pressure Testing Machine
Data StorageAvailable
Safety ProtectionOverpressure protection & data preservation upon power failure
Pressure UnitBar/psi/MPa
Testing Range0-100 bar
Test ModeConstant Pressure Test and Burst Test
Compliance StandardsISO 1167, ASTM D1598, ASTM D1599
Control ModeComputer or PLC control
Applications
Well-suited for test end caps covering diameter range from DN20 up to DN1800mm. Extensive deployment within sectors producing PE, PVC, PPR, ABS and steel skeleton plastic composite pipes. Built-in safety safeguards including overpressure prevention and data retention during power outages.
Customization Options
Supports liquid medium testing across temperature span of 15℃ to 95℃. Capable of conducting burst tests in alignment with ISO 1167, ASTM D1598 and ASTM D1599 standards. Equipped with LCD/LED visual display and protective mechanisms. Generates pressure-time and pressure-temperature test curves.
Support and Services
  • Professional technical consultation, fault diagnosis and maintenance guidance
  • Component replacement and equipment repair service
  • On-site machine installation and commissioning
  • Scheduled preventive maintenance service
  • Online training sessions for operators and technical personnel
Packing and Shipping
Standard wooden case packaging with full foam inner padding. Customized packaging structure effectively buffers external extrusion and impact forces. Sea freight serves as primary shipping method with conventional delivery cycle of approximately 15 working days.
Frequently Asked Questions
Which brand supplies this Hydrostatic Pressure Testing Machine?
This Hydrostatic Pressure Testing Machine is branded JHH.
Where does the production take place?
Manufacturing is carried out in Beijing, China.
What functions does the machine serve?
Designed to assess the pressure resistance performance of components and assembled specimens.
What test categories can this machine execute?
Capable of conducting burst tests, fatigue tests and creep tests.
What kinds of pipe materials are compatible?
Supports testing on plastic pipes and composite pipes.
Product Gallery
Hydrostatic Pressure Testing Machine front view Hydrostatic Pressure Testing Machine side view Hydrostatic Pressure Testing Machine in operation
