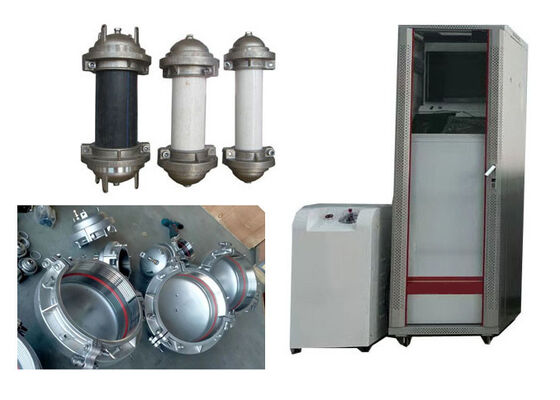

Plastic Pipe Hydrostatic Pressure Testing Machine
Constant-pressure burst test equipment for thermoplastic & composite pipe conformance testing, designed to meet rigorous international standards and quality control requirements.
Applications
This hydrostatic pressure tester meets multiple internationally recognized and domestic specifications including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479, GB/T 6111, and GB/T 15560. Full compliance ensures valid test outputs across diverse laboratory and production-line evaluation scenarios.
Product Features

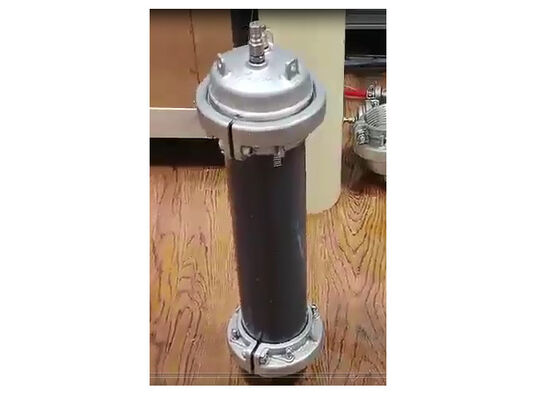

- Specialized end fittings handle pipe specimens from Φ8-1800 mm
- Integrated autonomous pressure regulation and auto water-injection workflow
- Over-pressure unloading safeguard mechanism for operator protection
- Extensive high-pressure working scope for long-term pressure-bearing capacity evaluation
- Wide deployment in oil-gas exploitation, chemical processing, and building construction industries
Compliance Standards
Strictly adheres to ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, and ASTMF1335 standards, ensuring test data satisfies official evaluation requirements for plastic pipe performance verification.
Technical Parameters
| Model |
XGY-20C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Test Pressure Range |
0.1-20MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models |
from Φ16 to 630mm |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or customized |
Support and Services
We provide comprehensive technical support services including professional equipment installation, system commissioning, on-site fault diagnosis, equipment overhaul, routine maintenance, troubleshooting, and supply of original spare parts and test consumables.
Frequently Asked Questions
Which brand manufactures this Plastic Pipe Hydrostatic Pressure Testing Machine?
This series of Hydrostatic Pressure Testing Machines falls under the JHH brand, with complete independent production carried out in Beijing, China.
What testing objectives can this hydrostatic pressure-testing apparatus achieve?
It is specially developed to assess hydrostatic resistance performance and burst strength properties for plastic pipe workpieces.
What categories of test specimens are compatible with this hydrostatic pressure testing unit?
It supports performance evaluation for plastic pipes and composite pipes, including material grades such as PP-R, PP-B, PP-A, PVC, PE, PE-X and other mainstream pipe varieties.
How about the measurement precision specification of this hydrostatic pressure testing machine?
Its measurement deviation is constrained within 0.1% relative to full-scale reading throughout the measuring range.
What is the upper limit of test pressure achievable by this hydrostatic pressure testing equipment?
This tester is capable of conducting pressure assessments at levels reaching 10 MPa, equivalent to 100 bar (1450 psi).
