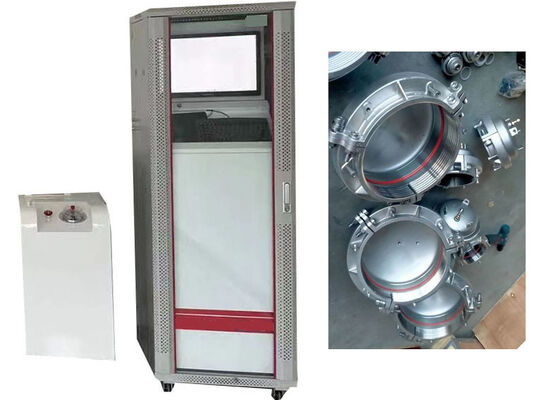

Hydrostatic Pressure Testing Machine with High‑precision Control & Real‑time Monitoring
Professional testing equipment for pipe hydrostatic burst pressure tests, designed to quantify pressure-failure duration and peak instantaneous burst pressure of thermoplastic and composite piping specimens.
Applications
This pipe hydrostatic tester evaluates PP‑R, PP‑B, PPA, PE, PE‑X, UPVC, CPVC, steel‑reinforced polyethylene pipe, aluminium‑plastic composite pipe and other variants under sustained internal pressure with steady‑state thermal conditions. Widely used in plastic pipe manufacturing plants and third‑party inspection laboratories for pipeline performance assessment.
Product Characteristics
- Test parameters configurable via touch-screen terminal or connected PC
- Compact footprint under 1 m² with support for up to 50 independent pressure channels
- Intelligent specimen identification with automatic pressurization strategies
- Superior pressure-regulation precision with selective input-pressure tuning
- Premium stainless-steel construction for all wetted metallic components
- Multi-language intuitive human-machine interface
- In-process pressure calibration with continuous operation (optional)
- Multi-layer safeguard mechanisms covering electrical, mechanical and software protection
- Stable data transmission using TCP/IP communication protocol
Compliance Standards
ISO1167‑2006, ASTMD1598‑2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335
Technical Parameters
| Model | XGY-10C |
|---|
| Diameter range | Φ8-1800mm |
|---|
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
|---|
| Control mode | Micro-control, industrial PC control |
|---|
| Display mode | Industrial PC LCD color display |
|---|
| Storage mode | PC storage |
|---|
| Print mode | Color printer output |
|---|
| Test pressure range | 0.1-10MPa |
|---|
| Control accuracy | ±1% |
|---|
| Display resolution | 0.01MPa |
|---|
| Working range | 5%~100%FS |
|---|
| Indication error | ±1% |
|---|
| Timer range | 0~10000h |
|---|
| Timer accuracy | ±0.1% |
|---|
| Timer resolution | 1s |
|---|
| Power | 380V 50Hz three-phase four-wire 1.5KW |
|---|
| End caps models | from Φ16 to 630mm |
|---|

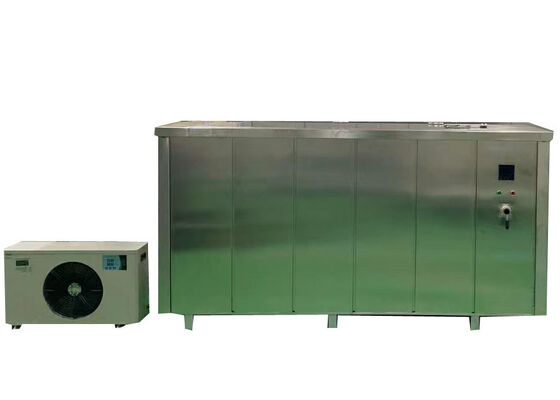

| Water tank size | According to pipe size |
|---|
| Temperature range | 15-95℃ |
|---|
| Dimensions (three stations) | 715×625×1700(mm) or custom |
|---|
Support and Services
Comprehensive after-sales technical assistance for hydrostatic pressure testing equipment:
- On-site machine commissioning and installation
- Fault diagnosis and technical consultation
- Component overhaul and routine maintenance
- Replacement spare components and test consumables
- Software patches and function enhancement upgrades
Frequently Asked Questions
Q1: Which brand produces the Plastic Pipe Hydrostatic Pressure Testing Machine?
A1: This equipment adopts the JHH brand, with independent production and manufacturing completed in Beijing, China.
Q2: What core testing functions does this hydrostatic testing machine undertake?
A2: This machine verifies the hydrostatic resistance and burst strength performance of various plastic pipes.
Q3: What kinds of pipe materials are applicable for this Hydrostatic Pressure Testing Machine?
A3: Applicable for performance testing of plastic and composite pipes including PP-R, PP-B, PP-A, PVC, PE and PE-X.
Q4: What measurement precision does the Hydrostatic Pressure Testing Machine achieve?
A4: Measurement error is controlled within 0.1% of full-scale range.
Q5: What is the maximum test pressure capacity?
A5: This equipment supports pressure testing up to 10MPa (100 bar / 1450 psi).
