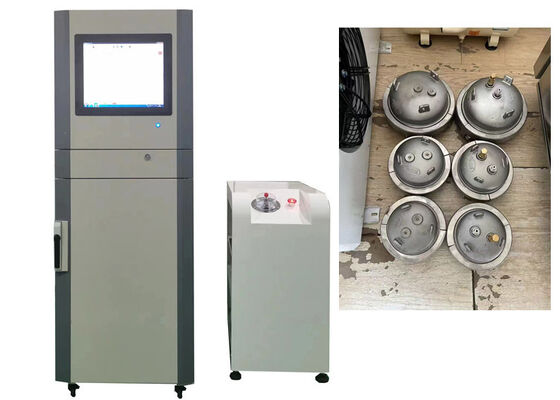

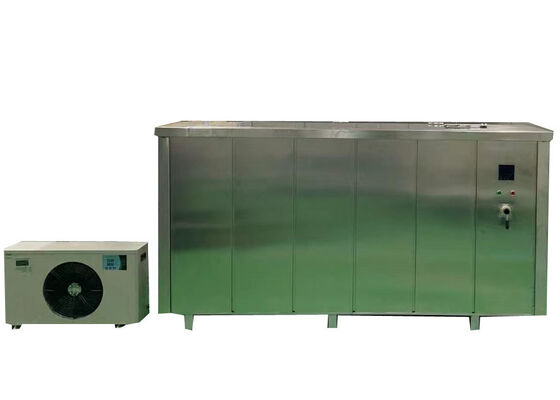

Plastic Pipe Hydrostatic Pressure Testing Machine with High‑precision Pressure Sensor & Data Logging Function for Test Report Generation

Large Image : Plastic Pipe Hydrostatic Pressure Testing Machine with High‑precision Pressure Sensor & Data Logging Function for Test Report Generation

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic Pipe Hydrostatic Pressure Testing Machine With High‑precision Pressure Sensor & Data Logging Function For Test Report Generation	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Plastic pipe hydrostatic pressure tester , High-precision pressure testing machine , Hydrostatic pressure tester with data logging

Plastic Pipe Hydrostatic Pressure Testing Machine

High-precision pressure testing equipment with data logging and test report generation capabilities for comprehensive pipe performance evaluation.

Applications

This hydrostatic pressure testing machine is designed for thermoplastic and composite pipe specimens including PP-R, PP-B, PPA, PE, PE-X, UPVC, CPVC, steel-reinforced polyethylene, and aluminum-plastic composite pipes. The equipment evaluates pipe endurance under sustained internal pressure at set temperatures and captures maximum burst pressure values at fracture points. Essential for pressure-resistance performance appraisal, this unit is widely used by plastic pipe manufacturers and independent testing laboratories.

Product Features

Tests diverse pipes and fittings including PP, PE, PVC, PPR, PB, and PERT under high-pressure and high-temperature conditions
Human-oriented design for straightforward operation and reduced maintenance
Easy-to-navigate control interface with built-in safety mechanisms
Automatic pressure cut-off and emergency stop functions for operator protection
State-of-the-art measuring modules for accurate pressure-time and pressure-temperature curve data
Full compliance with international standards: ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13479

Technical Specifications

Model	XGY-10C
Diameter Range	Φ8-1800mm
Available Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Test Pressure Range	0.1-10MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Timer Range	0-10000h
Timer Accuracy	±0.1%
Power Requirements	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	Φ16 to 630mm
Temperature Range	15-95℃
Dimensions (Three Stations)	715×625×1700(mm) or custom

Support and Services

Our comprehensive technical support system for hydrostatic pressure testing equipment includes:

On-site machine commissioning and installation
Fault diagnosis and professional technical consultation
Equipment overhaul and routine maintenance
Replacement components and wearing consumables supply
System software updates and upgrade services

We focus on premium after-sales experience and remain available to resolve all technical concerns.

Frequently Asked Questions

Which brand manufactures this Plastic Pipe Hydrostatic Pressure Tester?

This equipment carries the JHH brand and is fully produced in Beijing, China.

What testing functions does this equipment fulfill?

This unit determines hydrostatic endurance and burst strength performance for plastic pipe samples.

What specimens and material grades are compatible?

It supports performance tests on plastic pipes and composite products including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other relevant materials.

What level of measurement precision can be achieved?

Measurement deviation is controlled within 0.1% relative to the instrument's full-scale value.

What is the maximum pressure threshold?

This tester conducts tests under pressure levels reaching 10 MPa (100 bar / 1450 psi).
