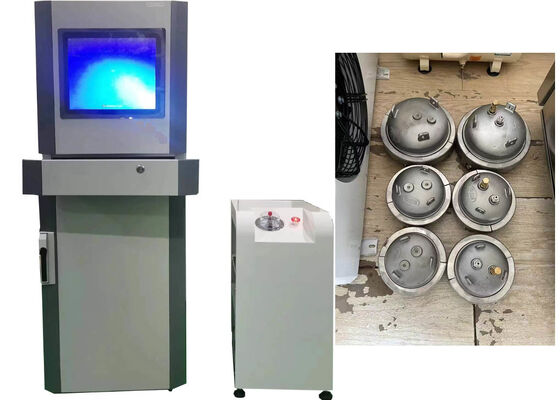

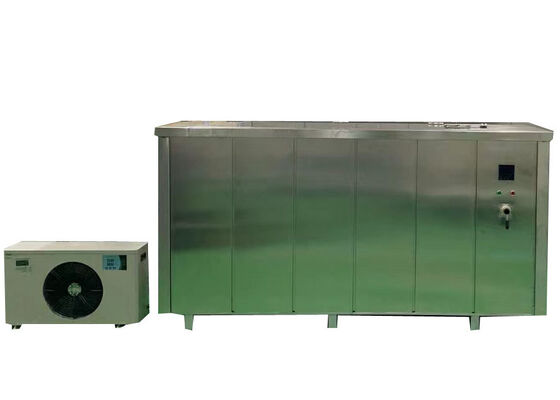

Hydrostatic Pressure Testing Machine
Professional testing equipment for pressure resistance evaluation of plastic pipes, tanks, and hydraulic components under controlled conditions.
Applications
Designed for performance assessment of thermoplastic and composite pipeline specimens including PP-R, PP-B, PPA, PE, PE-X, UPVC, CPVC, PVC-based grades, steel-reinforced polyethylene pipes, and aluminum-plastic composite tubes. Evaluates pressure-bearing service lifespan under steady internal pressure and constant temperature until sample failure occurs.
Product Overview
Integrated hydrostatic pressure and burst test machine suitable for pipes and fittings covering PP, PE, PVC, PPR, PB, and PERT materials. Engineered to sustain high-pressure and high-temperature operating conditions for rigorous industrial and domestic service scenarios.
Operator safety is guaranteed by auto-cutoff routines and emergency halt mechanisms. Advanced hardware and control algorithms generate precise pressure-time and pressure-temperature curve outputs for reliable technical evaluation.
Compliance Standards
Compliant with international and domestic specifications: ISO1167-2006, ASTM D1598-2004, ASTM D1599, ISO9080, CJ/T108, ASTM F1335.
Technical Parameters
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models |
from Φ16 to 630mm |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or customized |
Support and Services
Comprehensive technical assistance provided by experienced specialists:
- On-site machine commissioning and system configuration
- Fault diagnosis and professional technical consultation
- Equipment overhaul and routine maintenance services
- Supply of replacement components and test-related consumables
- Software iteration and function upgrade services
Frequently Asked Questions
Which brand supplies this Plastic Pipe Hydrostatic Pressure Testing Machine?
This hydrostatic pressure testing unit is branded JHH, with complete production carried out in Beijing, China.
What core functions does the Plastic Pipe Hydrostatic Pressure Testing Machine serve?
This test apparatus evaluates hydrostatic endurance and burst-resistance performance of plastic pipe specimens.
What kinds of workpieces and material variants are compatible?
Supports testing for plastic pipes and composite pipe products including PP-R, PP-B, PP-A, PVC, PE, PE-X and other relevant material grades.
What measurement precision can this machine achieve?
Measurement deviation stays within 0.1% against full-scale reading of the instrument.
What is the upper pressure limit for this equipment?
Capable of conducting tests at pressure levels reaching 10 MPa, equivalent to 100 bar (1450 psi).
