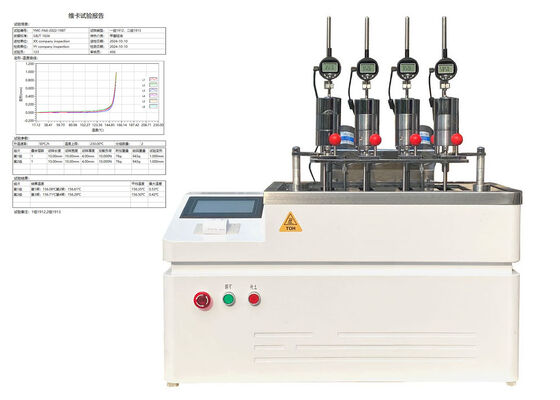

HDT VICAT Testing Machine
Advanced solution for determining heat distortion temperature and softening point of thermoplastic materials
Product Overview
Designed for comprehensive thermoplastic material assessment, this four-station HDT VICAT softening point test apparatus complies with ISO75-1 and ISO306 standards to evaluate heat-deflection temperature and related thermal-performance indicators of thermoplastic specimens.
Key Features
- Compact mechanical layout with streamlined appearance and consistent operational performance
- Integrated fume-odor elimination and cooling capabilities
- Sophisticated MCU (multi-point micro control unit) control platform for autonomous temperature and deformation monitoring
- Automatic test outcome computation with storage for up to 10 groups of test datasets
- Multilingual color touch screen supporting Chinese and English for automated measurement
- External connectivity to computers and printers

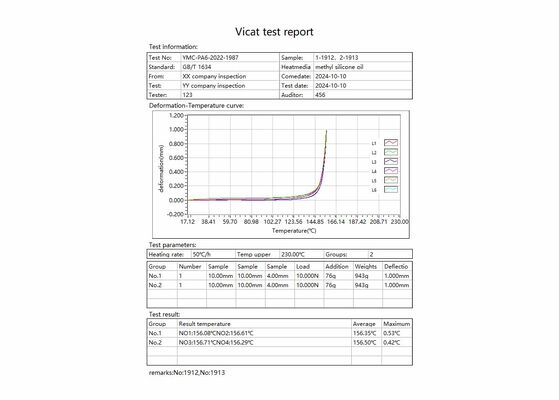

- Windows-based test software with English-language graphical interface for automated testing, real-time curve plotting, data archiving, and printable report generation
Applications
Extensively deployed across plastic raw-material manufacturing, finished-product production, scientific research, and instructional laboratories.
Test Standards Compliance
This testing unit fulfills test criteria defined under international specifications including ISO75-1, ISO306, GB/T1633-2000, GB/T1634-2001, GB/T8802, ASTM D 1525 and ASTM D648-06.
Technical Parameters
| Parameter |
Specification |
| Model |
XRW-300BT-Ⅳ |
| Temperature control range |
Room temperature ~300℃ |
| Maximum temperature error |
±0.5℃ |
| Heating rate |
50℃/h, 120℃/h, or set between 50-120℃/h |
| Temperature measurement point |
1 |
| Test frame number |
4 |
| Test frame lifting mode |
Auto |
| Range of deformation measurement |
-0.1~10mm |
| Maximum deformation error |
±0.005mm |
| Deformation resolution |
0.001mm |
| Sample supports span |
64mm, 100mm |
| Load bar and press (needle) weight |
74g |
| Voltage and power |
220V, 4KW |
| Thermal expansion coefficient of sample itself |
<0.005/100℃ |
| Working medium |
Methylsilicone oil or transformer oil |
| Cooling-down method |
Natural cooling above 150℃, water cooling below 150℃ or natural cooling |
Support and Services
Engineered as a high-precision analytical device, the HDT VICAT Testing Machine characterizes the load-induced deflection temperature and Vicat softening point of thermoplastic materials.
Our comprehensive service package includes:
- On-site guidance for equipment installation and commissioning
- Operational and maintenance training tailored for equipment operators
- Calibration routines securing consistent, trustworthy test outputs
- Repair and upkeep solutions to sustain optimal equipment working status
- Remote technical consultation via telephone and email to resolve inquiries and technical issues
Packaging and Shipping
The HDT VICAT Testing Machine adopts durable and reinforced wooden box packaging with internal foam cushioning for full protection during long-distance transit.
Our professional team arranges complete shipping procedures through qualified logistics providers. Final shipping expenses are calculated according to actual package weight and delivery address.
Frequently Asked Questions
Which brand produces the VICAT Testing Machine?
The VICAT Testing Machine is branded under JINHAIHU.
What is the specific model of the VICAT Testing Machine?
The model specification of the VICAT Testing Machine is XRW-300F.
What qualification certifications does the VICAT Testing Machine hold?
The VICAT Testing Machine is accredited with ISO9001 quality system certification and CE certification.
What is the production origin of the VICAT Testing Machine?
The VICAT Testing Machine is locally produced in Beijing, China.
What is the minimum purchasing quantity for the VICAT Testing Machine?
The minimum order quantity for the VICAT Testing Machine is a single unit.
What is the monthly production capacity of the VICAT Testing Machine?
The factory possesses a monthly supply capacity of 15 sets for the VICAT Testing Machine.
How long is the production and delivery cycle of the VICAT Testing Machine?
The standard delivery cycle of the VICAT Testing Machine ranges from 10 to 15 working days.
