Drop Hammer Test Equipment for International Standards Compliance

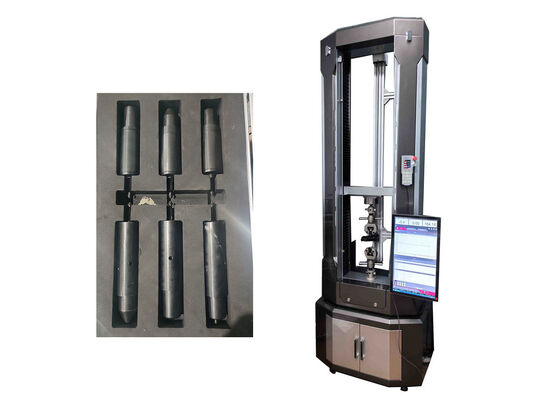

Designed to comply with international testing standards for consistent and comparable results, this falling weight impact testing machine ensures reliable performance evaluation.
Application
Crafted to satisfy testing requirements in ISO3127 and equivalent normative documents, this falling weight impact testing machine is extensively adopted within research laboratories, third-party inspection institutions, and production facilities engaged with plastic pipes such as PVC-U and PVC-O. It evaluates the impact-resistant performance of pipe specimens, serving as a preferred testing apparatus for building-material manufacturers and research-oriented establishments.
Fitted with a complete drop-hammer assembly covering a mass scope from 0.5 kg up to 16 kg, the unit enables automatic calculation of impact height alongside real-time visual readout of relevant data. Supporting both the pass-fail method and staircase-gradient testing approach, this equipment delivers user-friendly workflows while maintaining high-level operational safety and dependable running performance.
Testing Principle
Specimens receive impacts delivered by a falling striker with defined mass and geometry, which is released from a predefined height onto designated positions across the test sample.
Test severity may be modulated by adjusting either the striker mass, the drop height, or both. Modifying TIR values outside the stipulated specifications shall not be adopted as a valid technical means to alter test severity.
The maximum permissible TIR threshold is set at 10%.
Product Features
- Built-in safety protection mechanism fully complies with the 89/392/EEC machinery safety directive
- Industrial-grade colorful human-machine interface paired with PLC distributed control architecture for outstanding operational stability and reliability
- Impact height supports arbitrary parameter setting within 200mm to 2000mm with 100% capture efficiency throughout the entire height adjustment range
- Impact hammer adopts vacuum adsorption technology for automatic release and secondary locking capture with maximum operating speed of 2 m/s
- Automatic lifting height calibration with tolerance controlled within ±1mm relative to preset height value
- Standalone dedicated impact hammers with each corresponding to specific impact energy grades for simplified model selection and extended service life
Standards Compliance
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Technical Parameters
| Model |
XJL-630S |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-16kg |
| Hammer diameter |
D25mm, D90mm, etc |
| Lifting speed |
2m/s |
| Height of the fall |
10mm-2000mm, error≤±2mm |
| Diameter of the sample |
Φ16mm-Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| Power source |
220VAC±10% |
| Outline dimension |
715mm×700mm×3900mm |
| Net weight |
480kg |
Frequently Asked Questions
Q: What constitutes Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is inspection apparatus produced by JHH out of Beijing, China, tasked with evaluating the anti-impact performance of test samples.
Q: What core function does Drop Hammer Test Equipment serve?
A: This unit assesses how well specimens withstand impact loads, providing critical data to validate finished-product quality performance.
Q: What sample categories are compatible with Drop Hammer Test Equipment?
A: It supports testing for multiple pipe variants including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core-layer foamed pipes, double-wall corrugated pipes and PE water supply pipes. Rigid plastic sheets are also within its applicable test scope.
Q: What measurement precision can Drop Hammer Test Equipment achieve?
A: Drop Hammer Test Equipment delivers measurement precision reaching 0.5%.
Q: What is the upper limit of test capacity for Drop Hammer Test Equipment?
A: The maximum test energy output of Drop Hammer Test Equipment stands at 300J.
