Drop Hammer Test Equipment Used in Laboratories and Production Lines to Ensure Compliance with Material Impact Standards

Large Image : Drop Hammer Test Equipment Used in Laboratories and Production Lines to Ensure Compliance with Material Impact Standards

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-630D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Used In Laboratories And Production Lines To Ensure Compliance With Material Impact Standards	Hammer Diameter:	TUP A, TUP B, TUP C
Test Range:	0-400J	Drop Hammer Quality:	2.7kg, 5.4kg, 9.1kg, 13.6kg
Supporting:	120° V-type Or Iron Plate	Max. Height:	3000mm
Conform With Standards:	ASTM D2444, ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, Etc.	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment for laboratories , Drop hammer test equipment for production lines , Material impact standards test equipment

Drop Hammer Test Equipment for Material Impact Standards Compliance

Professional testing apparatus designed to evaluate impact resistance performance of various materials and finished products, ensuring compliance with global industrial standards.

Applications & Features

Complies with multiple international standards including ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411

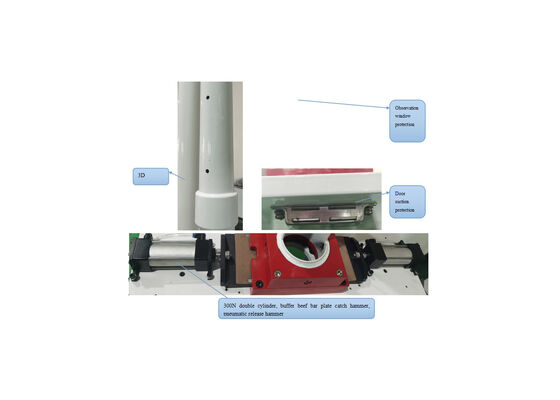

Automatic safety safeguards with protective interlocks for specimen access door
Configurable minimum drop height of 10 mm for high-fidelity measurement of low impact-resistance materials
Solid build quality with long-term operational stability for diverse application scenarios
Ideal for R&D, quality validation, and material characterization across aerospace, automotive, construction, and industrial sectors

Technical Specifications - Model XJL-630

Ambient Temperature	10℃-35℃
Hammer Sets (12 total)	Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of Fall	0mm-3000mm, error ≤ ±2mm
Sample Diameter	Φ630mm
Impact Center Deviation	≤2mm from fixture center
V-type Supporting	120°
Power Source	220VAC ±10%
Dimensions	720mm × 600mm × 4850mm
Net Weight	600kg

Support & Services

Comprehensive after-sales service system with professional technical support
One-stop technical guidance including on-site commissioning, maintenance management, fault diagnosis, and equipment calibration
Personalized customized schemes for diverse testing requirements
Round-the-clock technical support for prompt response to inquiries

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Produced by Beijing JHH of China, the Drop Hammer Test Equipment is a professional testing apparatus designed to evaluate the impact resistance performance of various test samples and finished products.

What are the core application purposes?

This equipment conducts quantitative detection of material impact resistance, serving as a key testing procedure to validate and stabilize overall product quality.

What testing samples are applicable?

Applicable to tubular products including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

What testing precision does it achieve?

The equipment boasts high testing precision accuracy of 0.5%.

What is the maximum testing energy specification?

Features a maximum testing energy of 300J.
