Versatile Drop Hammer Test Equipment
Ideal for quality control and product development in manufacturing and engineering applications, this precision testing equipment delivers reliable impact performance evaluation.
Product Overview
The drop hammer impact tester, also known as drop weight tear test equipment, is specifically designed for impact performance testing of plastic pipes, sheets, and finished products. This equipment accurately verifies the anti-impact mechanical properties of various materials.
Key Features
- Digital control system for automated operation
- Automatic parameter setting, zero calibration, and hammer procedures
- Prevents secondary impact interference during testing
- Ensures standardized and accurate test results
Product Structure & Working Principle

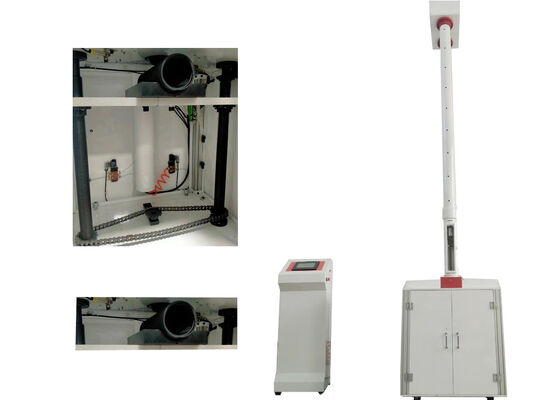

This tester consists of a work platform, anti-secondary-impact assembly, support barrel, guide conduit, falling hammer mass, V-shaped fixture, auto drop-hammer actuator, speed reducer, electrical control cabinet, and support frame.
Operating principle: A hammer-holding fixture within the guide conduit lifts the hammer body to the predefined test height using a motor-reducer assembly. Upon triggering the release switch, the hammer falls freely along the conduit and strikes the test specimen to complete impact measurement.
Impact energy is computed from hammer mass and drop height. The anti-rebound mechanism, triggered by photoelectric sensing signals, captures the rebounding hammer to eliminate secondary-impact occurrences.
V-shaped iron fixtures beneath the work platform feature guide lead screws on lateral sides. Manual rotation of the handwheel actuates the V-shaped iron lifting unit for height adjustment.
Technical Specifications
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-15kg |
| Hammer Diameter |
D25mm, D90mm |
| Height of the Fall |
50mm-2000mm, error≤±2mm |
| Diameter of the Sample |
Φ10mm-Φ450mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
730mm×700mm×3650mm |
| Net Weight |
300kg |
Support & Services
Our Drop Hammer Test Equipment is backed by comprehensive technical after-sales services delivered by our professional engineering team. Our specialists provide expert support covering on-site commissioning, routine maintenance, fault diagnosis, instrument calibration, and custom technical solutions for unique project requirements.
We maintain customer-oriented service as our core priority and offer premium technical assistance. Our technical team provides round-the-clock availability to resolve inquiries and address operational concerns.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Developed and produced by JHH based in Beijing, China, Drop Hammer Test Equipment is a professional testing device dedicated to evaluating the impact resistance performance of various test objects.
What are the application objectives?
This equipment quantifies the impact resistance of test samples, serving as a crucial testing method to verify and guarantee finished product quality.
What test subjects are applicable?
The equipment supports testing for PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
What level of precision does it achieve?
The Drop Hammer Test Equipment features high testing precision of 0.5%.
What is the maximum testing capacity?
The maximum testing energy capacity reaches 300J.
