HDT VICAT Testing Machine solution for measuring heat distortion temperature and Vicat softening point of polymer samples

Large Image : HDT VICAT Testing Machine solution for measuring heat distortion temperature and Vicat softening point of polymer samples

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XRW-300BT-Ⅲ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	5~10 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Testing Machine Solution For Measuring Heat Distortion Temperature And Vicat Softening Point Of Polymer Samples	Product Category:	HDT VICAT Testing Machine
Test Standards:	ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06	Heating Medium:	Silicone Oils, Glycerine, Ethylene Glycol, Mineral Oil
Current Source:	4KW, 220VAC, 50HZ	Deformation Measurement Range:	-1.00～10.00mm
Test Stations:	3	Maximum Deformation Measurement Error:	0.01mm
Highlight:	HDT VICAT Testing Machine for polymer samples , HDT VICAT heat distortion temperature tester , Vicat softening point testing machine

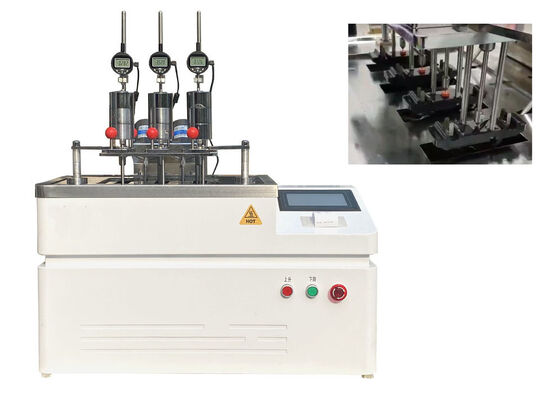

HDT VICAT Testing Machine

Professional solution for measuring heat distortion temperature and Vicat softening point of polymer samples

Product Overview

This advanced testing equipment fully conforms to international test standards including ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D1525-1991 and ASTM D648-06, making it suitable for diverse industrial testing scenarios and application requirements.

Key Features

Deformation measuring range: -1.00mm to 10.00mm for high-precision detection
Six independent test stations for high-throughput batch testing
Standard loading forces: 10±0.2N and 50±1.0N for excellent accuracy and repeatability
Professional evaluation of thermoplastic properties and load-bearing heat deflection temperature
Essential equipment for quality inspection and technical research in plastic manufacturing

Technical Specifications

Model	XRW-300BT-Ⅲ
Temperature control range	Room temperature ~300℃
Maximum temperature error	±0.5℃
Heating rate	50℃/h, 120℃/h, or set between 50-120℃/h
Test frame number	3
Deformation measurement range	-0.1~10mm
Maximum deformation error	±0.005mm
Deformation resolution	0.001mm
Sample support span	64mm, 100mm
Voltage and power	220V, 4KW

Instrument Characteristics

Premium Control System: Exceptional operational stability with simplified installation, operation, and data analysis workflows
User-Friendly Software: Touchscreen terminal with real-time temperature and displacement display, data management, and report printing
Four-Layer Safety Protection: Mechanical over-temperature limit switches, software temperature protection, automatic stop, and administrator controls
High-Precision Measurement: Advanced sensors and capacitive grating devices with PID algorithms for consistent thermal testing
Electric Lifting Mechanism: Eliminates manual frame lifting risks and improves testing standardization

Frequently Asked Questions

Which brand produces the VICAT Testing Machine?

JINHAIHU serves as the brand for this VICAT Testing Machine.

What is the model designation?

Model designation is XRW-300F.

What qualification certification is available?

This VICAT Testing Machine holds ISO9001 and CE certification.

Where is the testing machine produced?

Manufacturing takes place in Beijing, China.

What is the minimum order quantity?

Minimum purchasing requirement is 1 unit.

What is the production capacity?

Monthly production capacity reaches up to 15 units.

What is the lead time for shipment?

Lead time ranges from 10 to 15 working days.

What packaging solution is adopted?

The instrument is packed in standard export wooden cases.

Product Images
