Electronic Universal Testing Machine for control applications involving plastic rubber textiles metal wires and nylon wires

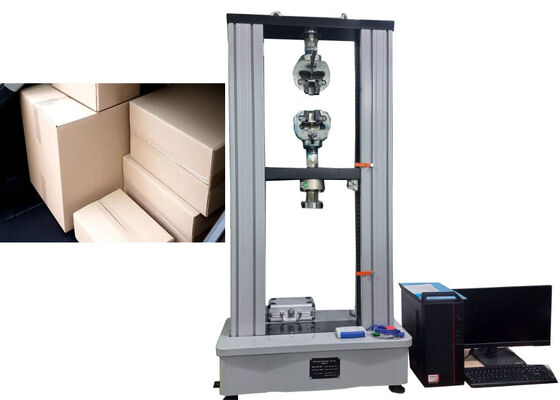

Large Image : Electronic Universal Testing Machine for control applications involving plastic rubber textiles metal wires and nylon wires

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XWW-100KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine For Control Applications Involving Plastic Rubber Textiles Metal Wires And Nylon Wires	Control Mode:	Cumputer
Max. Force:	100KN	Standard:	ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790
Accuracy Grade:	0.5%	Force-measuring Range:	0.4%~100%FS
Crossbeam Displacement Resolution:	0.001mm	Crossbeam Speed Range:	0.05-350mm/min
Type:	Floor Model With Double Test Space
Highlight:	Electronic Universal Testing Machine for plastic rubber textiles , Electronic Universal Testing Machine for metal wires , Electronic Universal Testing Machine with warranty

Electronic Universal Testing Machine

Professional testing equipment for control applications involving plastic, rubber, textiles, metal wires, and nylon wires.

Application Range

Universal Testing Machines are widely applicable for industrial quality inspection across diverse fields. This equipment is professionally engineered to perform tensile, compression, bending, shear, and tearing performance testing on materials including metal wires, nylon threads, belts, plastics, rubber, textiles, garments, and packaging products.

Product Features

Dual lead screw structural design with cutting-edge technologies in framework construction, system control, precision measurement, and human-machine operation
Superior testing accuracy with extensive adjustable speed range and streamlined compact layout
Simple operational workflow with outstanding long-term operational stability
Fully conforms to general testing specifications for various plastic pipe materials
Qualified for tensile, compression, bending, and creep tests on plastics, waterproof materials, textiles, paper products, and rubber materials
Customized large-scale pressure plate supports multiple specialized testing items including direct flat compression test and compression recovery test
Capable of ring stiffness tests for external load resistance evaluation, creep performance tests, and ring tensile strength tests

Technical Specifications

Model	XWW-100KN
Type	Floor model with double test space
Max. Load	100KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	0.5%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05-350mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	520
Total Crossbeam Travel	700mm
Sample Size	Max.2521mm(widethick) - Can be customized
Clamps	Tensile jig, Compression jig, Bending jig, etc
PC System	Equipped with brand computer and color inkjet printer
Power Supply	AC220V; 3.0kw
Standards	ISO7500-1, ISO5893, ISO9969, ASTMD638/695/790

UTM Software Features

Comprehensive and expandable functional modules with exclusive test routines for tensile, compression, bending, shear, and peeling tests
Intuitive Windows-based platform with ergonomic operation logic and low learning costs
Multi-language support (Simplified Chinese, Traditional Chinese, English) for global client demands
Hierarchical permission management with up to ten password-protected user accounts
Built-in overload safeguard mechanisms with customizable threshold settings
Real-time unit switching between force and displacement measurements
Multiple core test curves including load-displacement, load-time, displacement-time, stress-strain, and load-tensile length
Dual calibration mechanism for force values with automatic parameter configuration and zero calibration
Full compatibility with ISO, JIS, ASTM, DIN, and GB testing standards
Curve superposition comparison function for grouped test data analysis
Automatic computation of mechanical indicators including maximum force, yield strength, tensile strength, compressive strength, elastic modulus, and elongation rate

Frequently Asked Questions

Q1: Could you introduce the Electronic Universal Testing Machine?

A1: The Electronic Universal Testing Machine is precision measuring equipment developed to assess material mechanical characteristics such as tensile strength, compressive strength, elastic modulus and elongation at break.

Q2: What specimen categories fit testing on an Electronic Universal Testing Machine?

A2: The Electronic Universal Testing Machine accommodates testing on extensive material varieties, covering metallic materials, plastics, elastomers and composite materials.

Q3: What level of precision can Electronic Universal Testing Machines achieve?

A3: Electronic Universal Testing Machines maintain outstanding measuring precision, with measurement deviation controlled within ±0.5% of true values.

Q4: Which mechanical tests can be executed by an Electronic Universal Testing Machine?

A4: This equipment supports multiple standard testing modes, including tensile test, compression test, bending test, shear test and tear test.

Q5: What advantages does the Electronic Universal Testing Machine bring to users?

A5: The Electronic Universal Testing Machine realizes economical operation while maintaining high precision for material mechanical performance assessment. It boasts intuitive operation and fast data output, helping laboratories improve overall material testing efficiency.
